Inspection Procedure

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

Perform Active Test By Hand-Held Tester

Select the active test, and then check that the power door lock operates.

NOTE: During the active test, the hand-held tester sends signal to the body ECU to drive all the power door lock motor. If the all power door lock operates, the power door lock motor itself and the wire harness between the power door lock motor and body ECU is considered normal.

STANDARD (BODY ECU)

Item	Test Details	Diagnostic Note
DOOR LOCK	Drive door lock motor at all doors LOCK/OFF	.....
DOOR LOCK	Drive door lock motor at all doors UNLOCK/OFF	.....

NG: Replace Instrument Panel Junction Block Assy.
OK: Go to Next Step

Master Switch Or Key Cylinder Operation
1. When manual door lock/unlock operation via the master switch can not be performed, proceed to next step.
2. When manual door lock/unlock operation via the door lock control switch (passenger side) can not be performed, proceed to 4.
3. When manual door lock/unlock operation interlocked with the driver side door lock key cylinder can not be performed. proceed to 5.
Inspect Power Window Regulator Master Switch Assy.
1. Remove the master switch.
2. Inspect the door lock control switch continuity.

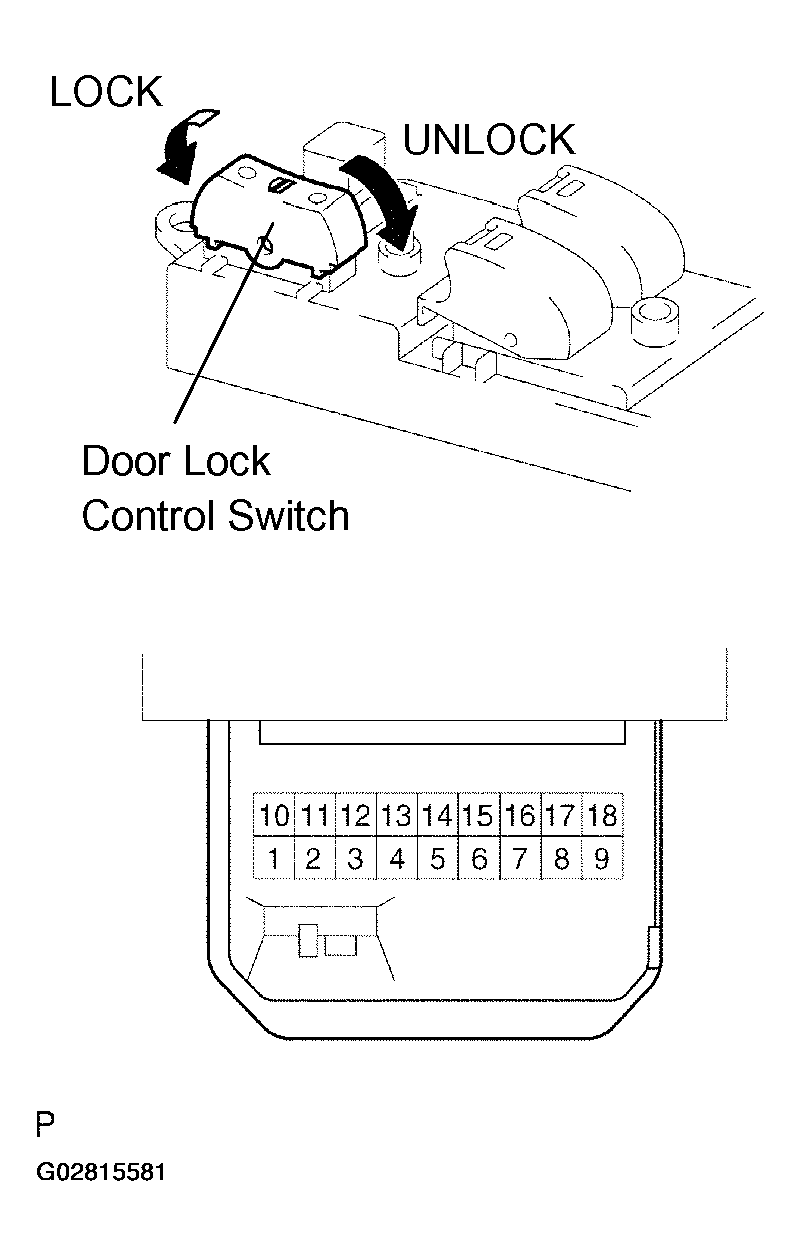

  Fig 1: Inspecting Power Window Regulator Master Switch Assy.
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 2: Power Window Regulator Master Switch Specifications Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: Replace Power Window Regulator Master Switch Assy.
2. OK: Repair Or Replace Harness And Connector (Power Window Regulator Master Switch Assy. To Driver Side Junction Block Assy. (Body ECU)
Inspect Door Control Switch Assy.
1. Passenger side switch:
  Inspect the door lock control switch continuity.

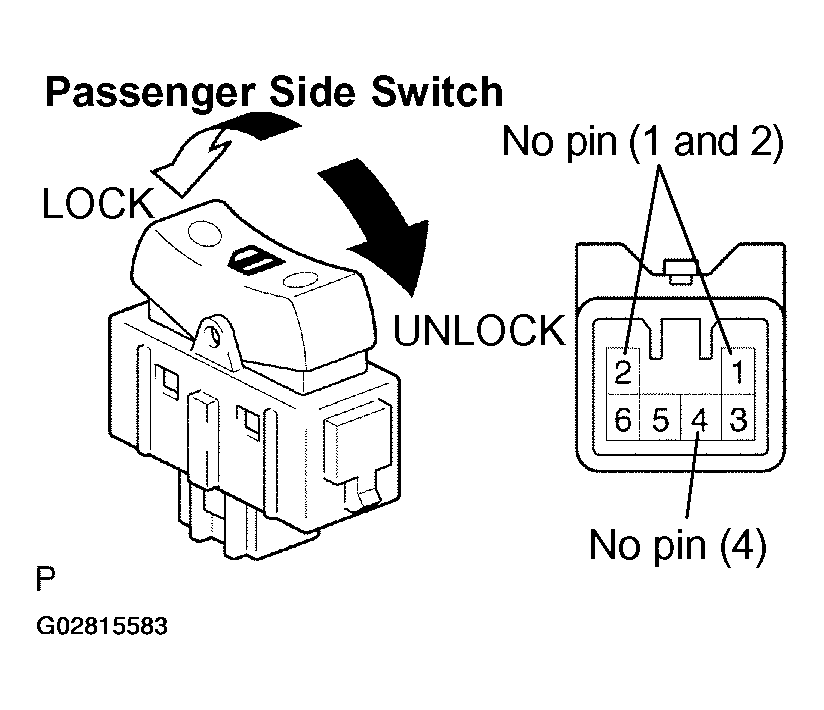

  Fig 3: Inspecting Door Control Switch Assy.
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 4: Door Control Switch Specifications Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: Replace Door Control Switch Assy.
2. OK: Repair Or Replace Harness And Connector (Door Lock Control Switch Assy. To Driver Side Junction Block Assy. (Body ECU)
Inspect Front Door W/Motor Lock Assy. LH
1. Apply battery voltage and inspect operation of the door lock motor.

  Fig 5: Front Door W/Motor Lock Specifications Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the door lock and unlock switch continuity.

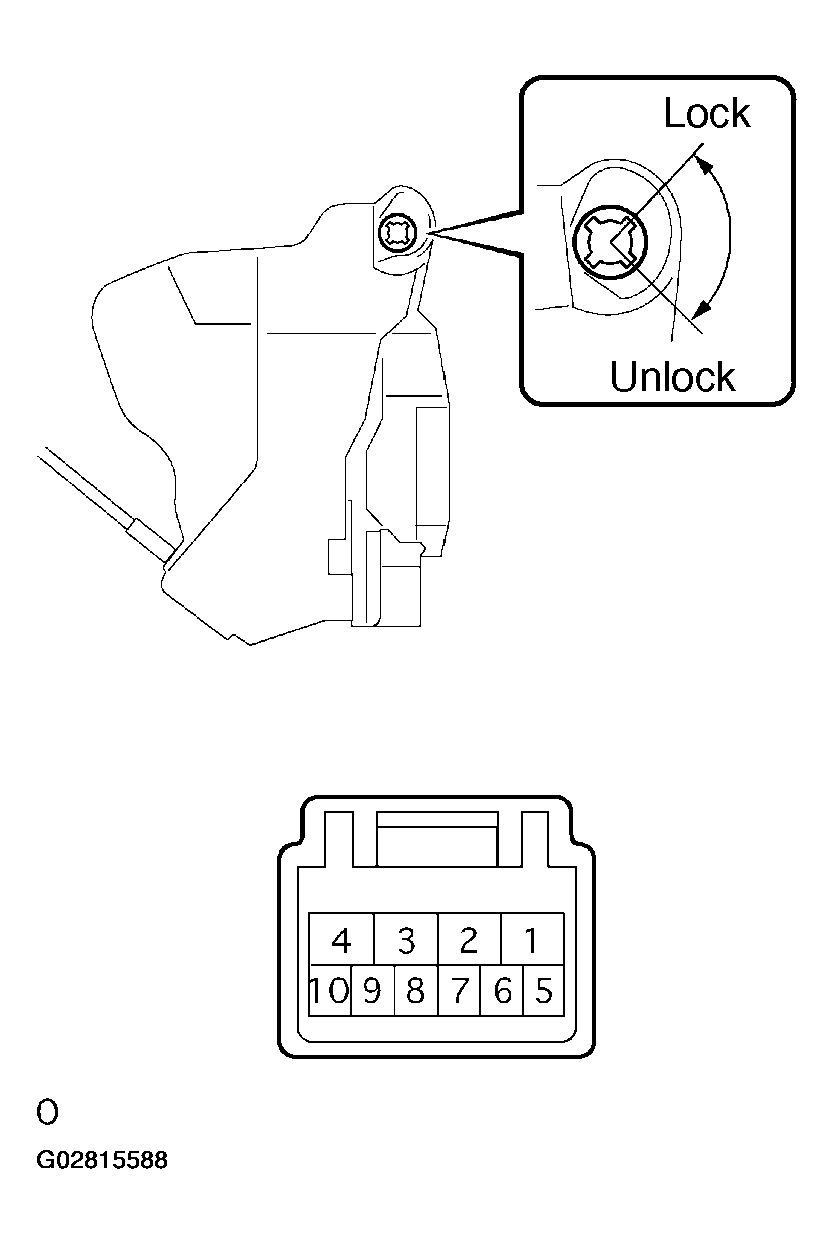

  Fig 6: Identifying Lock & Unlock Position Of Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

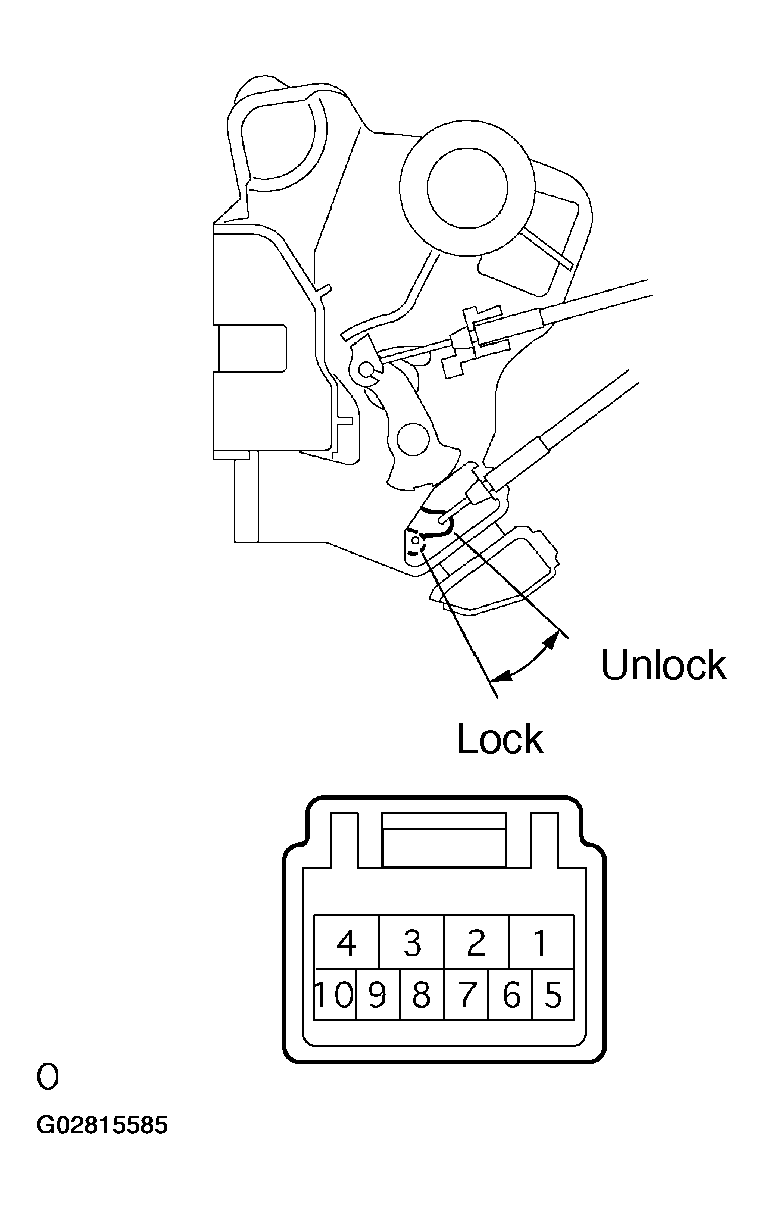

  Fig 7: Inspecting Front Door W/Motor Lock Assy. LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 8: Door Lock & Unlock Switch Specifications Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Inspect the position switch continuity.

  Fig 9: Door Lock & Unlock Position Specification Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: Replace Front Door W/Motor Lock Assy. LH
2. OK: Repair Or Replace Harness And Connectors (Front Door Lock W/Motor Lock Assy. LH To Driver Side Junction Block Assy. (Body ECU)
