Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

CLEANING IR RECEIVER SENSOR
1. Clean up the infrared light emission part.
1. Clean up the infrared light emission part of the stereo component control.
2. Check if the same abnormality occurs again.
Standard: Function return to normal condition.

OK: IR RECEIVER DIRTY

NG: Go To Next Step
CHECK BATTERY (REMOTE CONTROLLER ASSY)
1. Check the dry cell battery.
1. Check that the dry cell battery is not used up.
Standard: The dry cell battery is not used up.

NG: BATTERY EMPTY

OK: Go To Next Step
INSPECT HARNESS OR CONNECTOR (RADIO RECEIVER ASSY - STEREO COMPONENT CONTROLLER)
1. Check that the continuity between terminals at each condition, as shown in the chart.

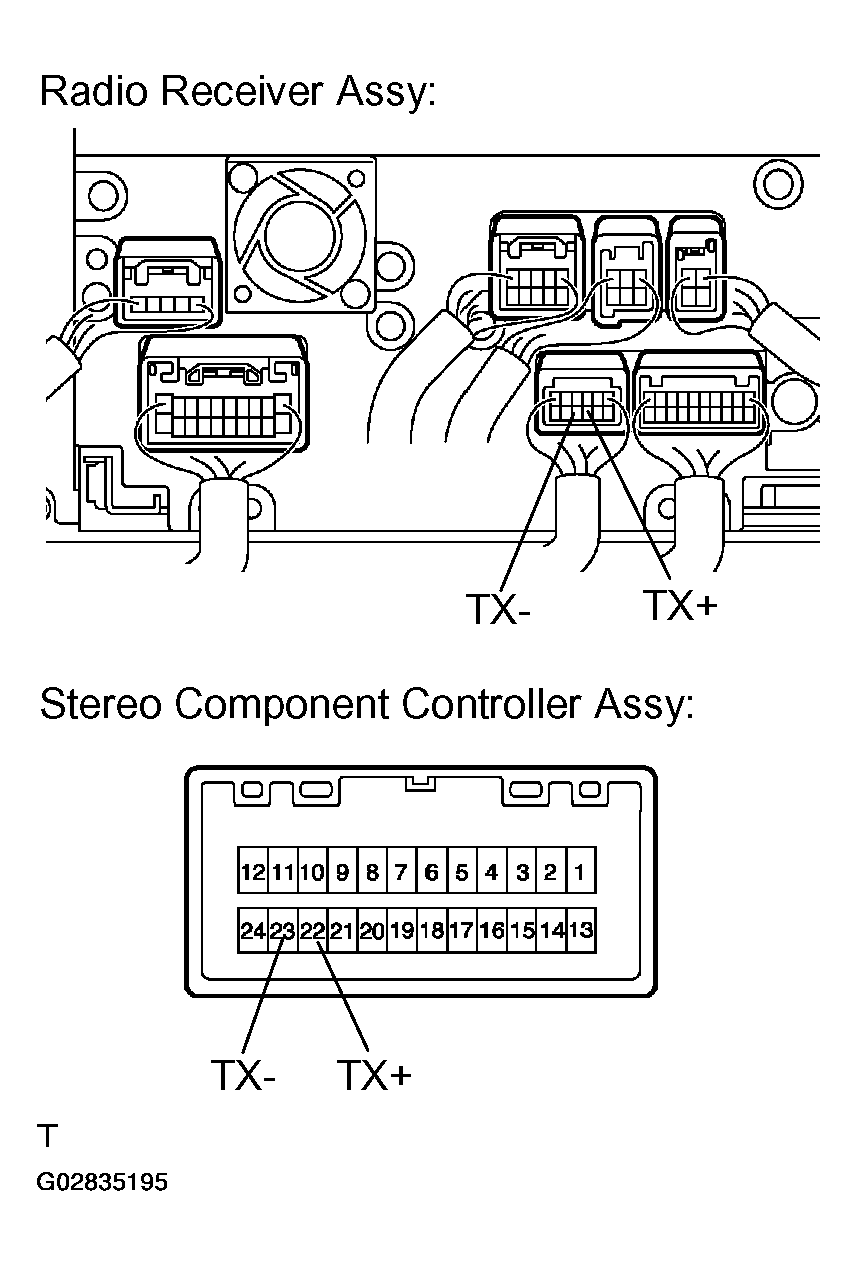

Fig 1: Inspecting Harness Or Connector (Radio Receiver Assy - Stereo Component Controller)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: STANDARD
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go To Next Step
CHECK STEREO COMPONENT CONTROLLER ASSY (+B, ACC, GND)
1. Check that the continuity between terminals at each condition, as shown in the chart.

  Fig 3: Checking Stereo Component Controller Assy (+B, ACC, GND)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 4: STANDARD
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the voltage between terminals at each condition, as shown in the chart.
Fig 5: STANDARD
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: CHECK AND REPLACE STEREO COMPONENT CONTROLLER ASSY
