Inspection Procedure

1. Disconnect the radio and navigation assy connector R9.
2. Measure the resistance according to the value(s) in the table below.

   Standard:

   REV - BODY GROUND VOLTAGE



   Tester connection	Condition	Specified condition
   REV - Body ground	Ignition switch is ON. Shift lever is moved to R position.	10 to 14 V
   REV - Body ground	Ignition switch is ON. Shift lever is moved to any position except R.	Below 1 V

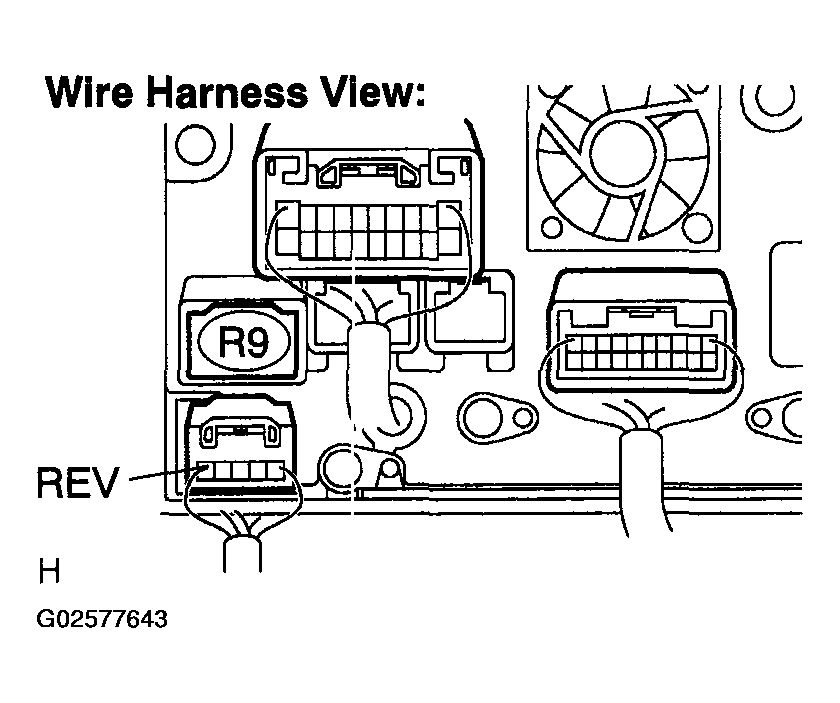

   Fig 1: Disconnecting Radio And Navigation Assy Connector R9

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: REPLACE RADIO AND NAVIGATION ASSY (SEE  RADIO RECEIVER ASSY  )

NG: Go to next step.

1. Disconnect the radio and navigation assy connector R9 and park/neutral position switch assy connector P1.
2. Measure the resistance according to the value(s) in the table below.

   Standard:

   RADIO AND NAVIGATION ASSY - PARK/NEUTRAL POSITION SWITCH ASSY SPECIFIED CONDITION



   Tester connection	Condition	Specified condition
   REV - P1-1	Always	Below 1 Ω
   REV - Body ground	Always	10 kΩ or higher

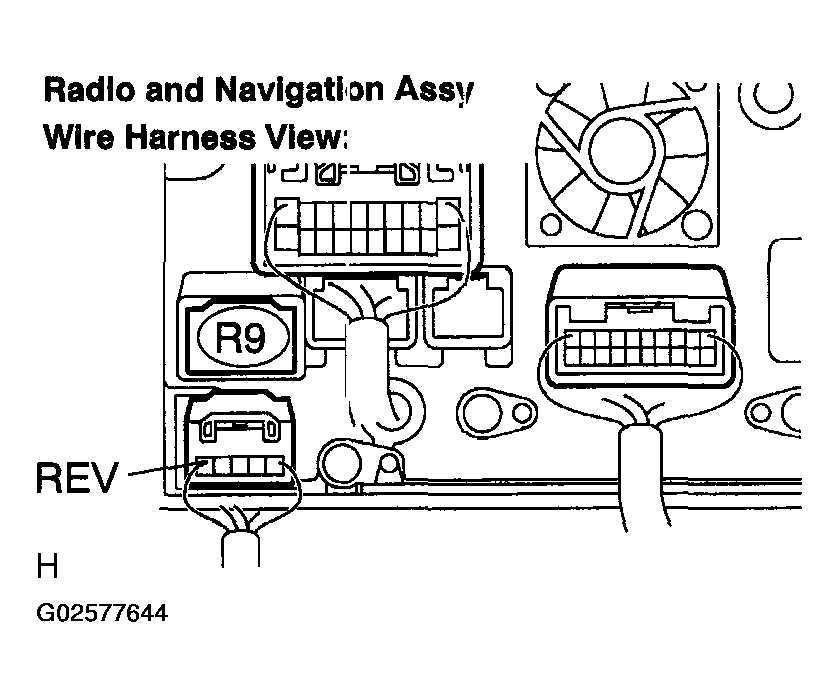

   Fig 2: Disconnecting Radio And Navigation Assy Connector R9

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 3: Park Neutral Position Switch Connector Front View

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

GO TO "P0705" IN ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION (SEE  DIAGNOSTIC TROUBLE CODE CHART  )
