Pattern Select Switch Circuit: Wiring Diagram

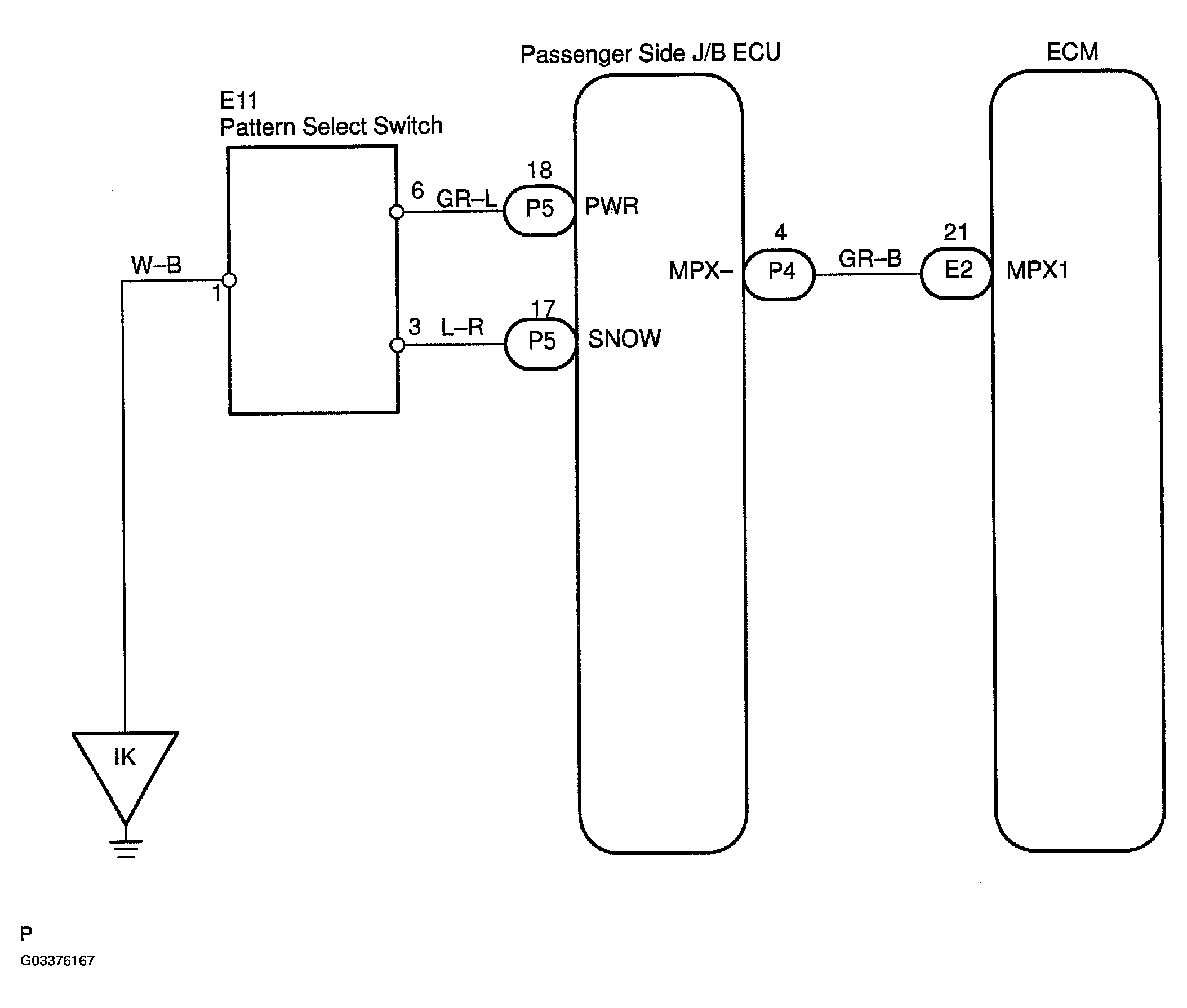

Fig 1: Wiring Diagram

G03376167

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
