How To Proceed With Troubleshooting

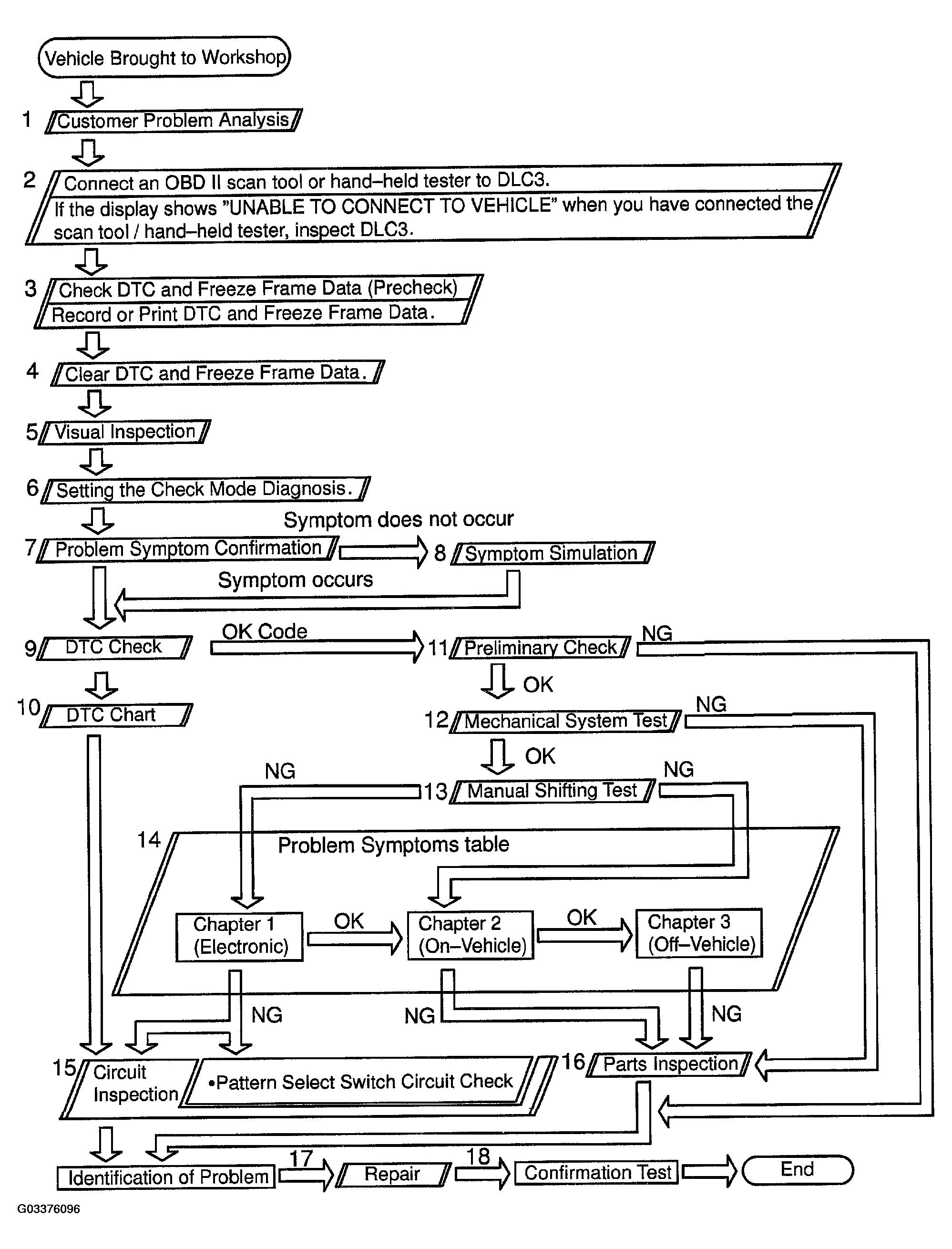

Fig 1: Troubleshooting Chart

G03376096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
