Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor:

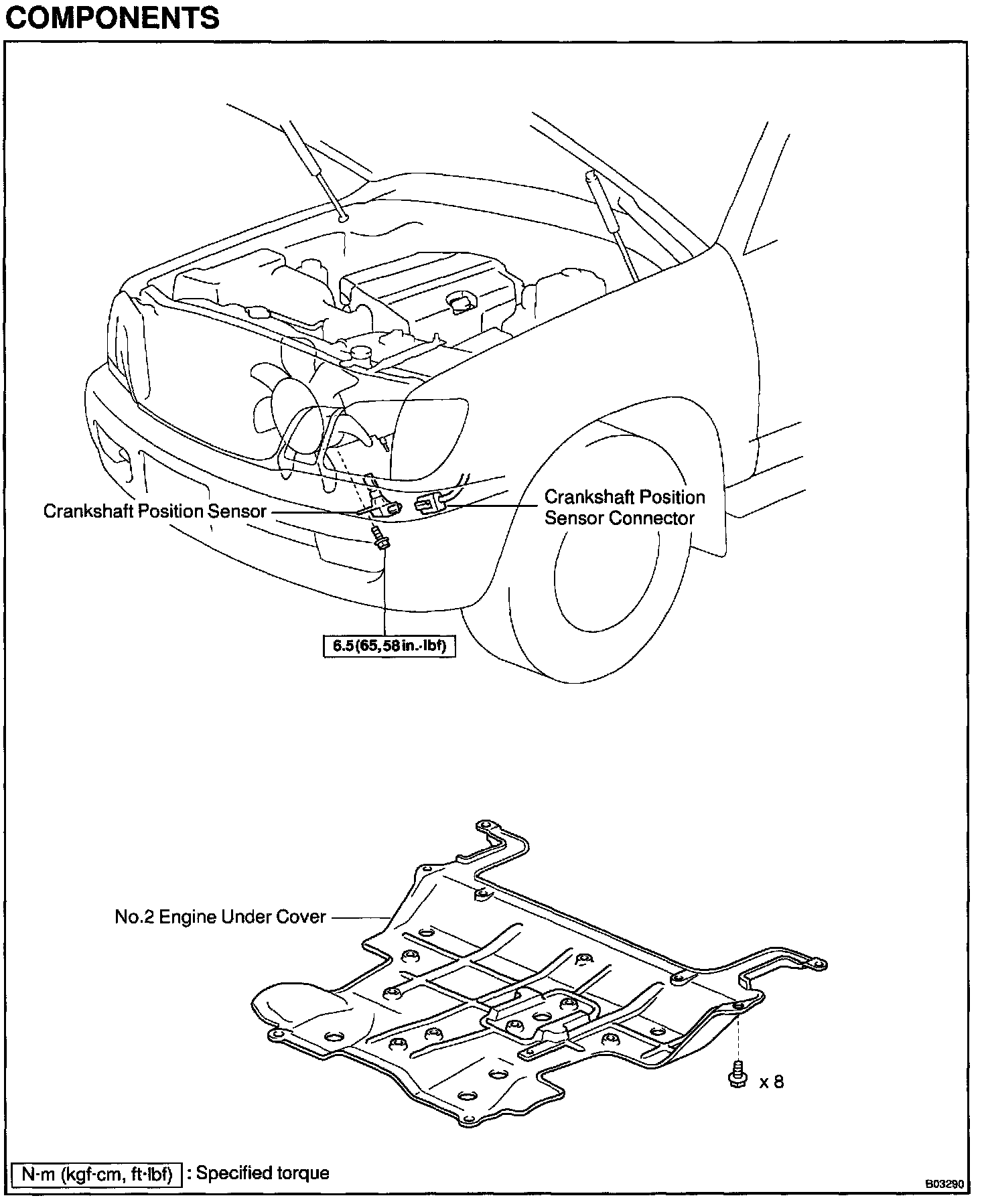

REMOVAL
1. REMOVE N0.2 ENGINE UNDER COVER




2. REMOVE CRANKSHAFT POSITION SENSOR
a. Disconnect the crankshaft position sensor connector.
b. Remove the bolt and crankshaft position sensor.

Torque: 6.5 N.m (65 kgf.cm, 58 in.lbf)


INSTALLATION
Installation is in the reverse order of removal.
