Engine Immobilizer System: Location

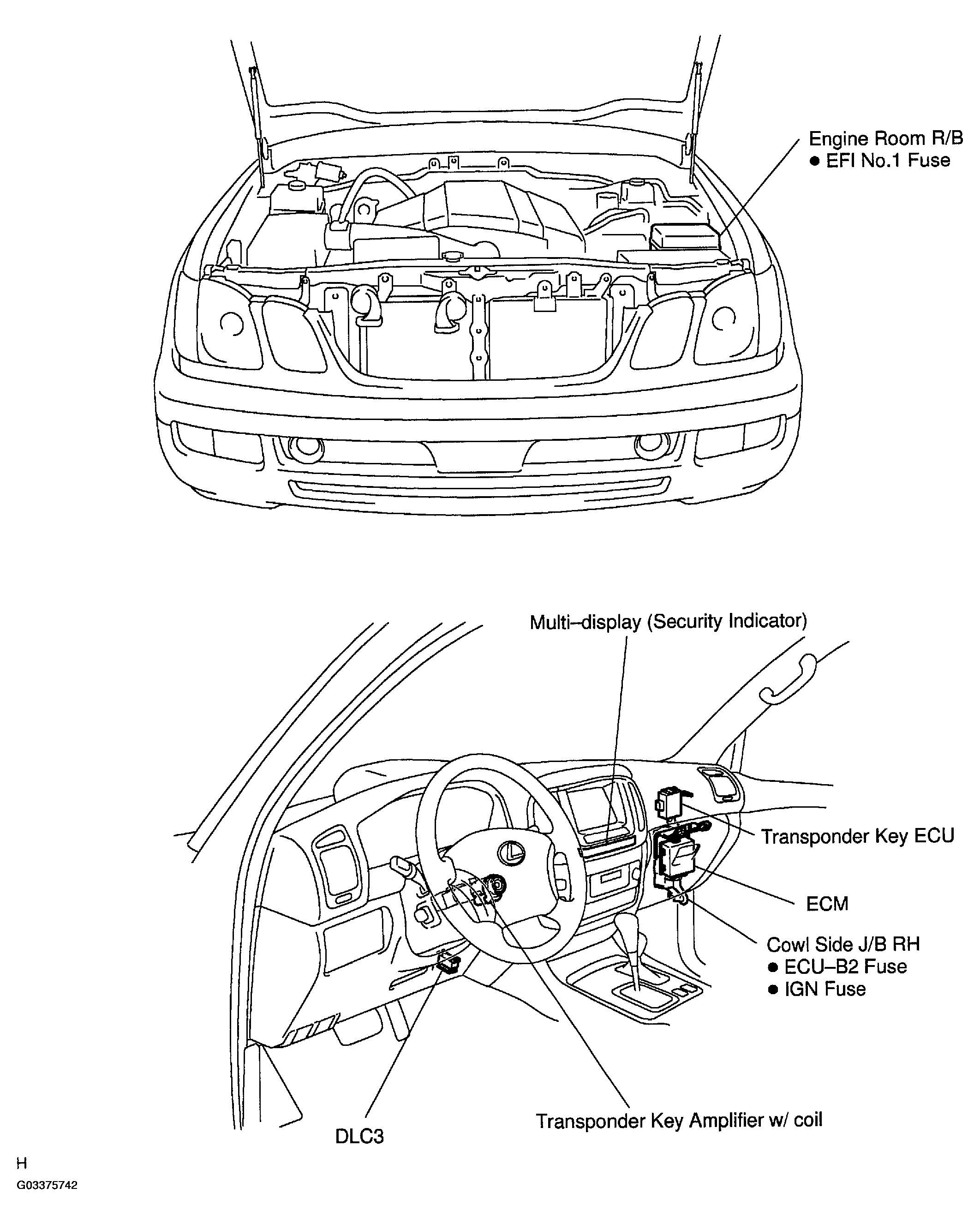

Fig 1: Identifying Engine Immobilizer System Components
G03375742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
