Front Speed Sensor: Removal

REMOVE SPEED SENSOR

1. Disconnect the speed sensor connector.
2. Remove the resin clip and 4 clamp bolts holding the sensor harness from the steering knuckle and upper arm.

   Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

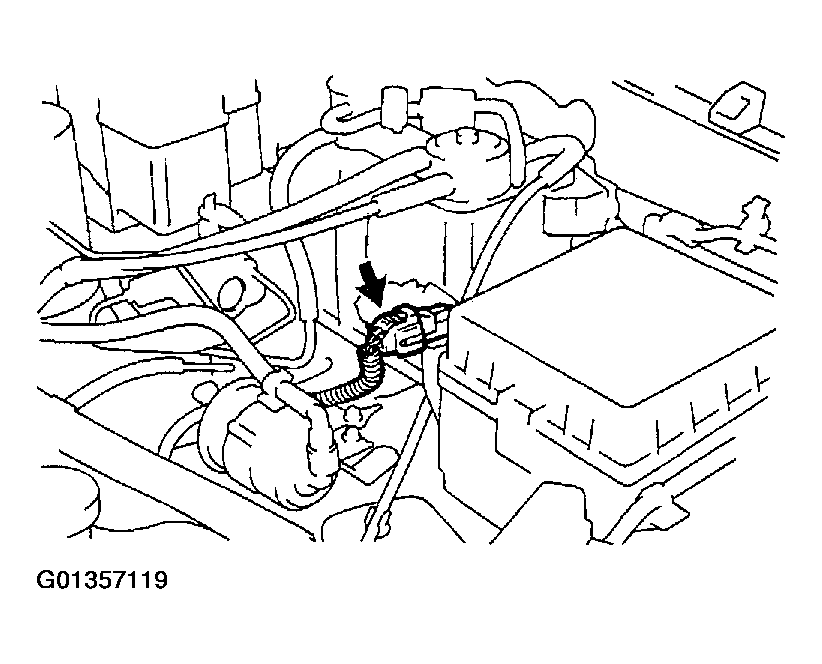

   Fig 1: Removing Resin Clip & Clamp Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the speed sensor installation bolt and speed sensor from the steering knuckle.

   Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

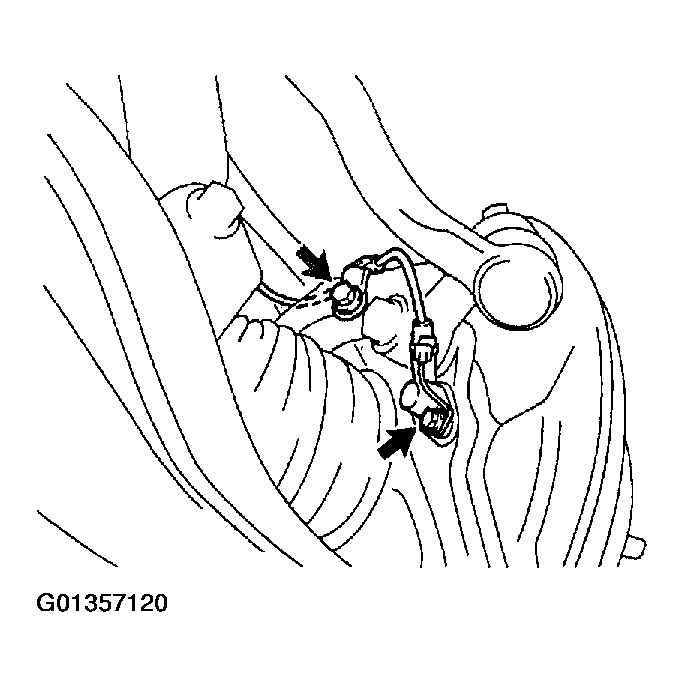

   Fig 2: Removing Speed Sensor Installations Bolt & Speed Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
