Exhaust System: Components

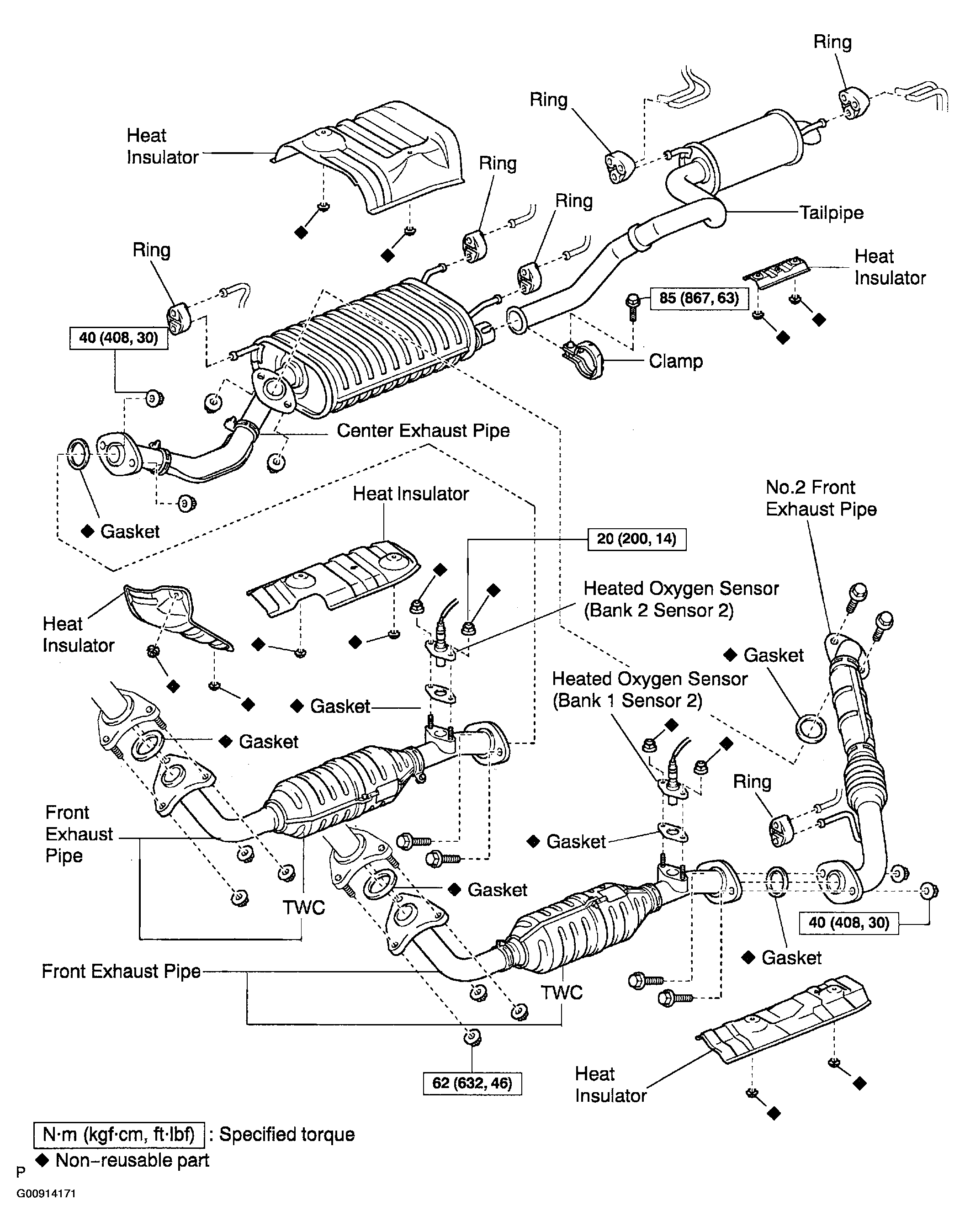

Fig 1: Identifying Exhaust System Components

G00914171

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
