Outside Rear View Mirror: Replacement

IF NECESSARY, DISCONNECT MIRROR
1. Insert a shop rag between the mirror and mirror body.
2. Pull up the lower side of the shop rag to disconnect the mirror joint.

  Fig 1: Installing A Shop Rag Between Mirror And Mirror Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pull up the mirror and disconnect it.

  Fig 2: Pulling Up And Disconnecting Mirror
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the connectors.

  Fig 3: Disconnecting Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT MIRROR
1. Connect the connectors.
2. Connect the claws (A) and set the mirror to the mirror body.
3. Push the mirror to connect the claws (B) and set it.

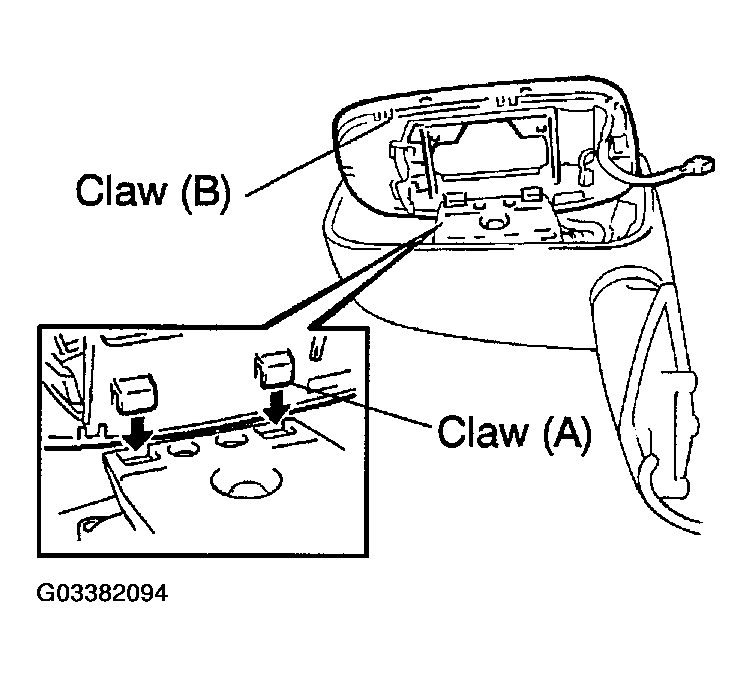

  Fig 4: Identifying Claws A & B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
