Floor Shift Assembly: Components

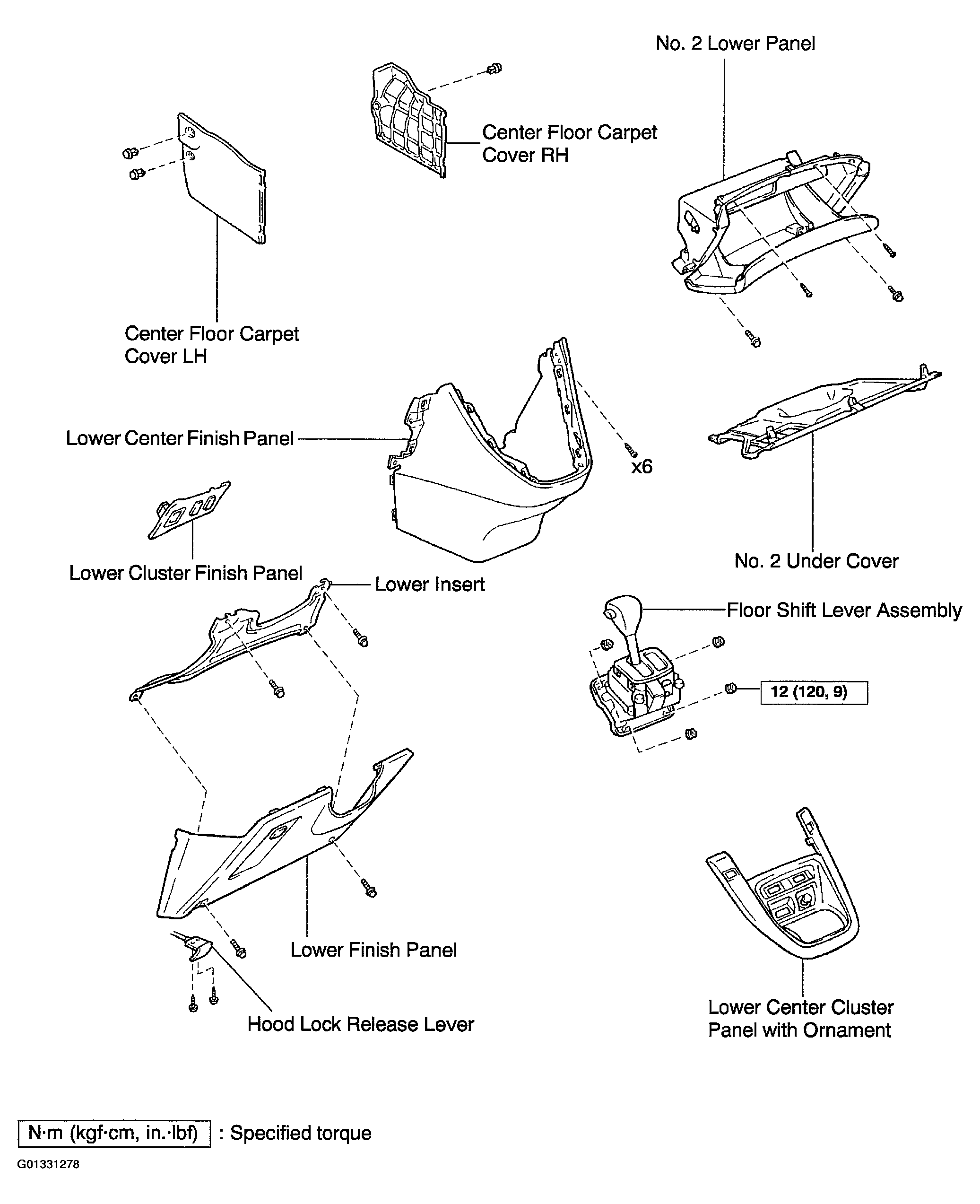

Fig 1: Identifying Floor Shift Assembly Components (1 Of 2)
G01331278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

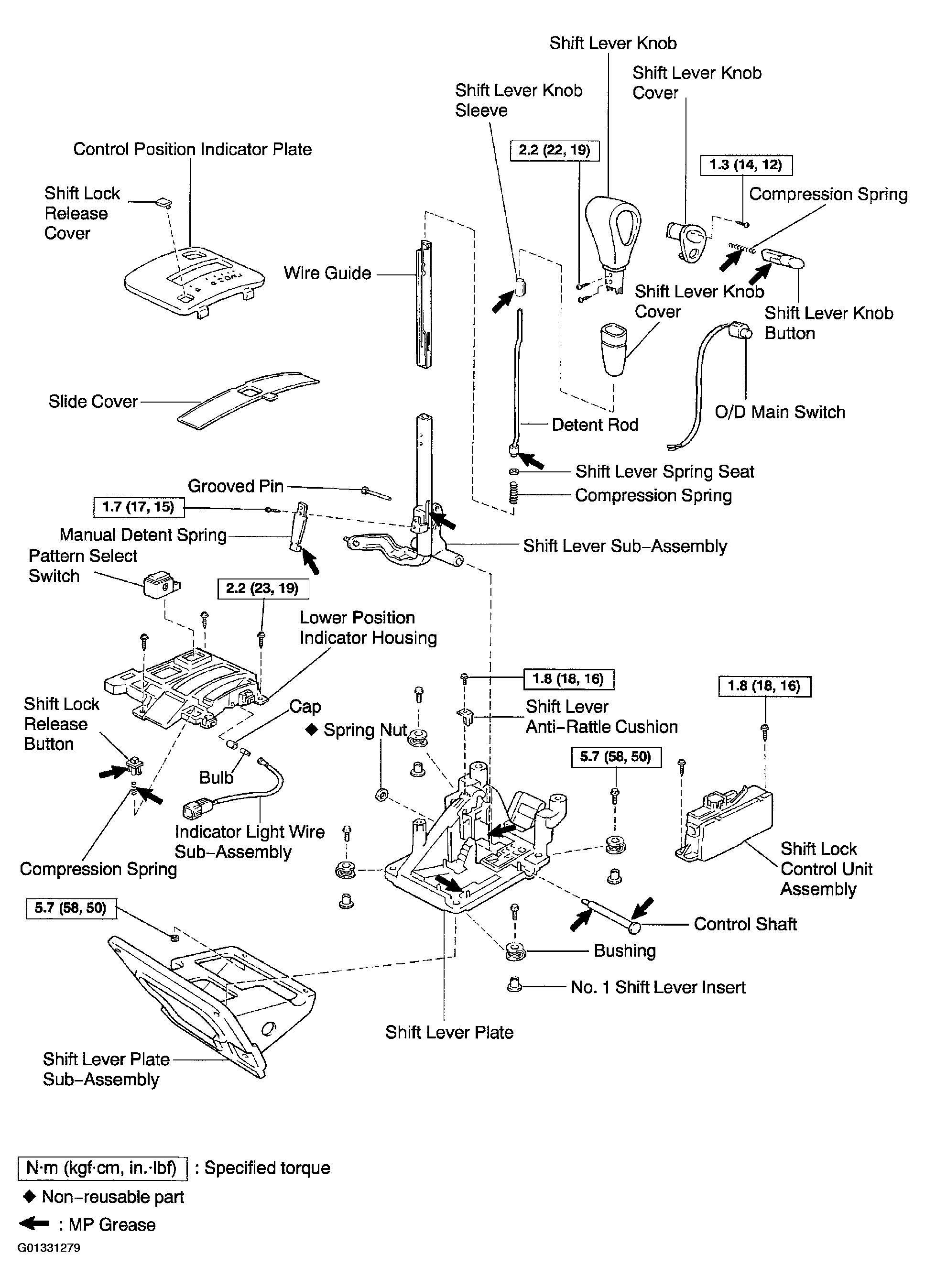

Fig 2: Identifying Floor Shift Assembly Components (2 Of 2)
G01331279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
