On-Vehicle Repair

  1. REMOVE BATTERY
  2. REMOVE AIR CLEANER ASSEMBLY
  3. DISCONNECT INPUT TURBINE SPEED SENSOR CONNECTOR
  4. REMOVE INPUT TURBINE SPEED SENSOR
    1. Remove the bolt and input turbine speed sensor.

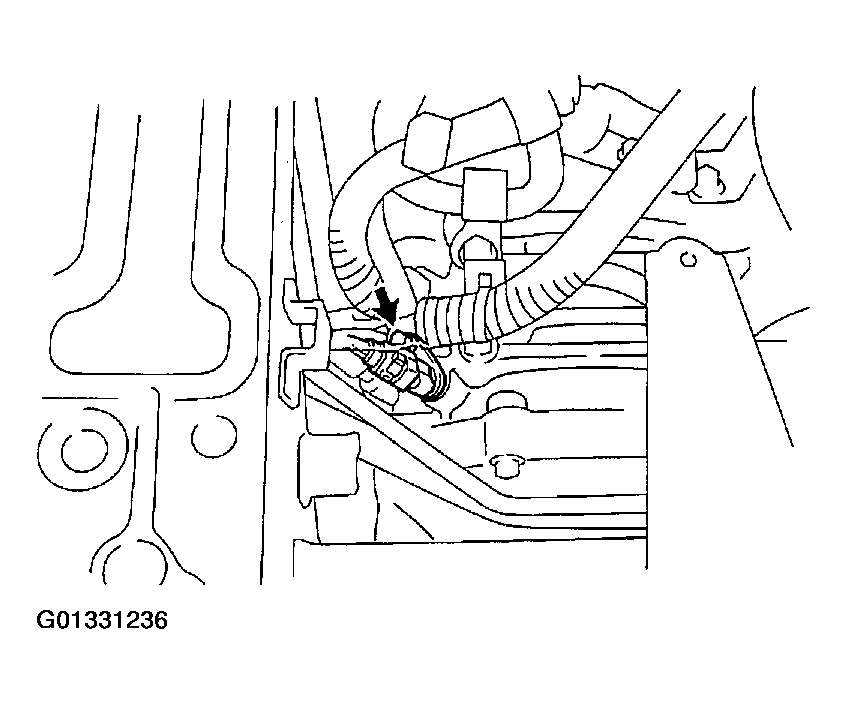

      Fig 1: Removing Input Turbine Speed Sensor
      G01331236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the input turbine speed sensor.
  5. INSTALL INPUT TURBINE SPEED SENSOR
    1. Coat a new O-ring with ATF and install it to the input turbine speed sensor.
    2. Install the input turbine speed sensor with the bolt.
      1. Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)
  6. CONNECT INPUT TURBINE SPEED SENSOR CONNECTOR
    Fig 2: Connecting Input Turbine Speed Sensor Connector
    G01331237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT COUNTER GEAR SPEED SENSOR CONNECTOR
  8. REMOVE COUNTER GEAR SPEED SENSOR
    1. Remove the bolt and counter gear speed sensor.

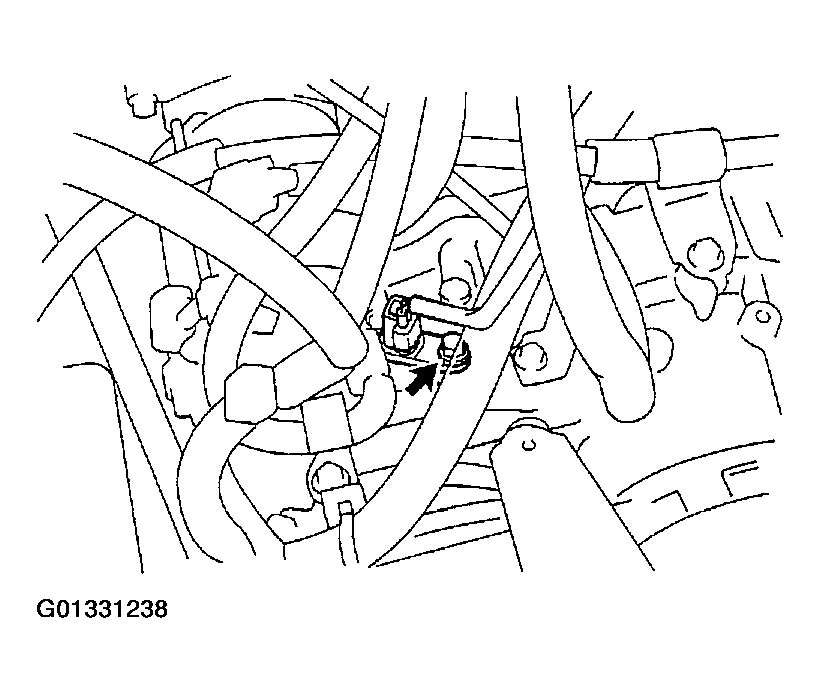

      Fig 3: Removing Bolt And Counter Gear Speed Sensor
      G01331238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the counter gear speed sensor.
  9. INSTALL COUNTER GEAR SPEED SENSOR
    1. Coat a new O-ring with ATF and install it to the counter gear speed sensor.
    2. Install the counter gear speed sensor with the bolt.
      1. Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)
    Fig 4: Installing Counter Gear Speed Sensor With Bolt
    G01331239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. CONNECT COUNTER GEAR SPEED SENSOR CONNECTOR
  11. INSTALL AIR CLEANER ASSEMBLY
  12. INSTALL BATTERY
