Cruise Control: Components

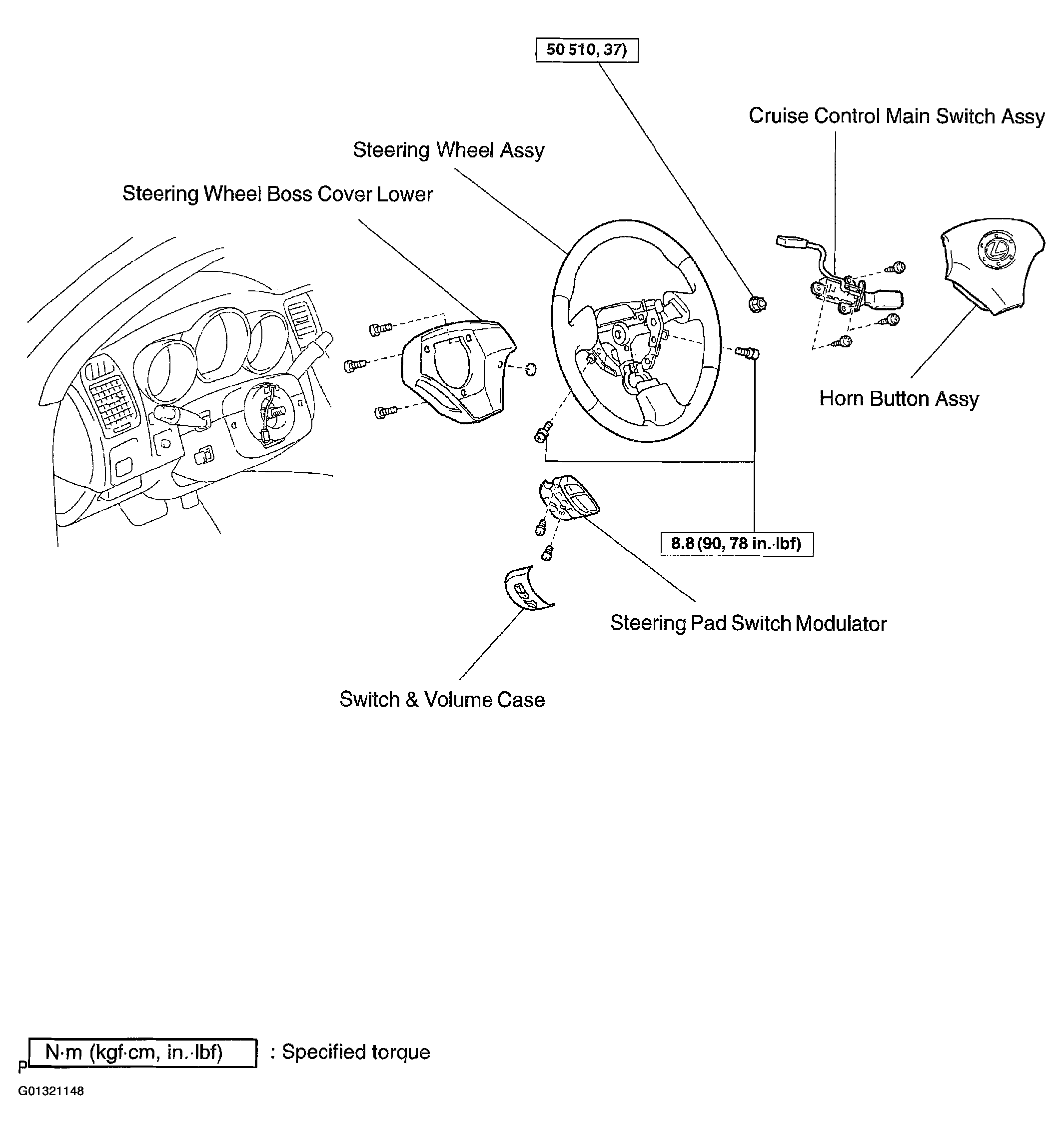

Fig 1: Locating Cruise Control System Components
G01321148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
