Back Window Frame Sub-ASSY Upper: Components: Overhaul

1. Referring to the manual operation procedures, half-open the roof.

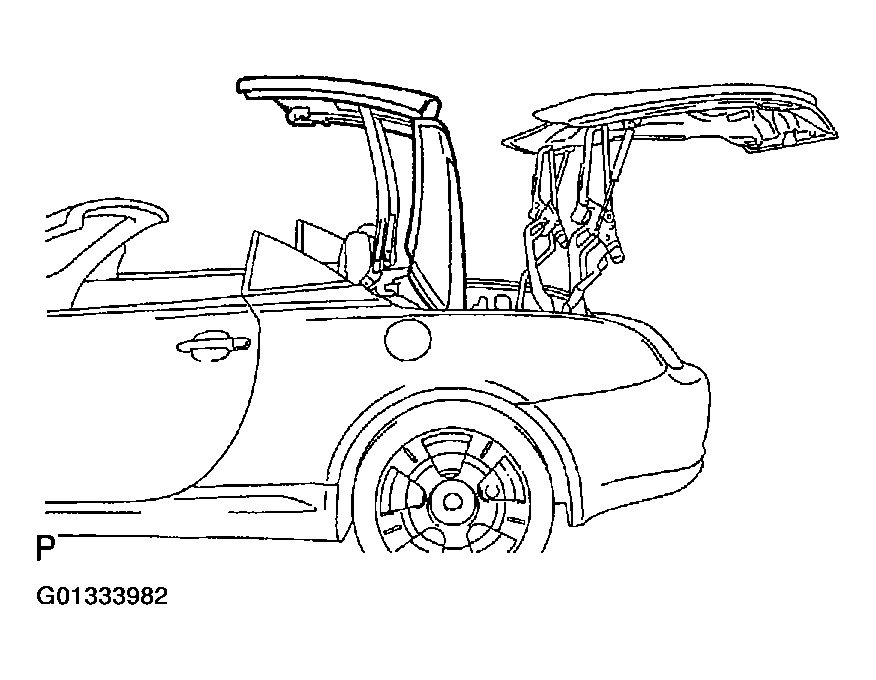

Fig 1: Identifying Half-Open Roof

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a clip remover, remove the clip.
2. Using a screwdriver, disengage the 7 clips.

   HINT:

   Tape the screwdriver tip before use.

3. Remove the inner roof side garnish RH.

Fig 2: Removing Clips And Inner Roof Side Garnish RH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, disengage the 7 clips.

   HINT:

   Tape the screwdriver tip before use.

2. Remove the rear roof headlining rear.

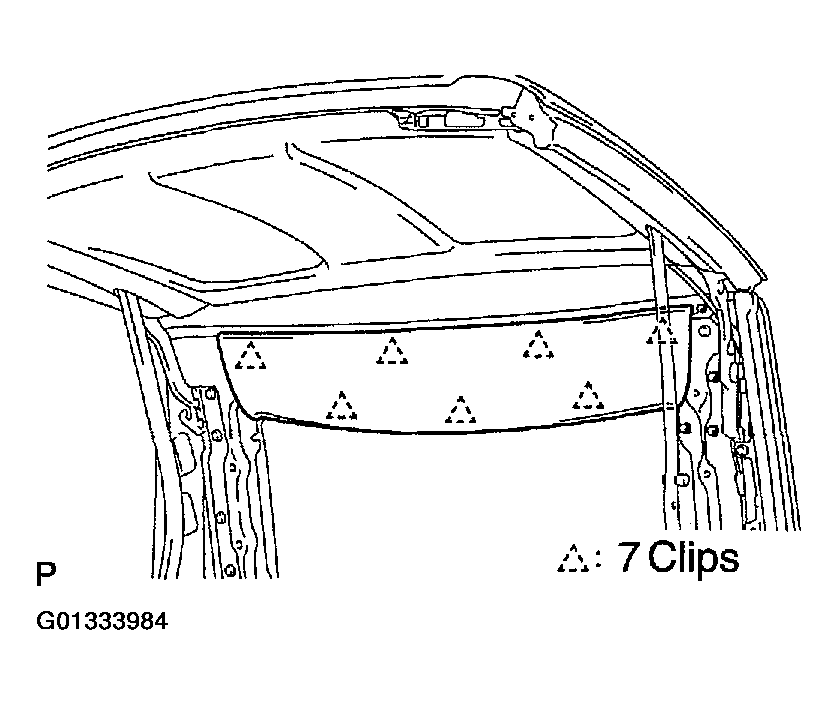

Fig 3: Removing Clips And Rear Roof Headlining Rear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a torx socket, remove the 8 screws.

   Torx socket (T40): 09042-00020

2. Remove the back window frame.

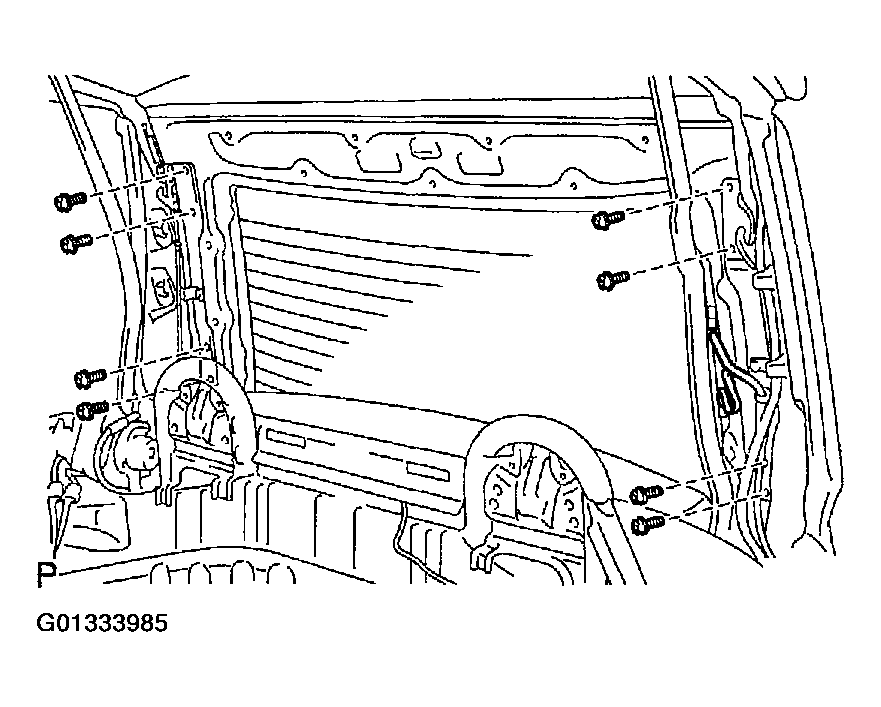

Fig 4: Removing Screws And Back Window Frame

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 screws, 2 nuts and 4 clips.
2. Using a clip remover, disengage the clips.

   HINT:

   Tape the screwdriver tip before use.

3. Remove the removable roof weatherstrip rear.

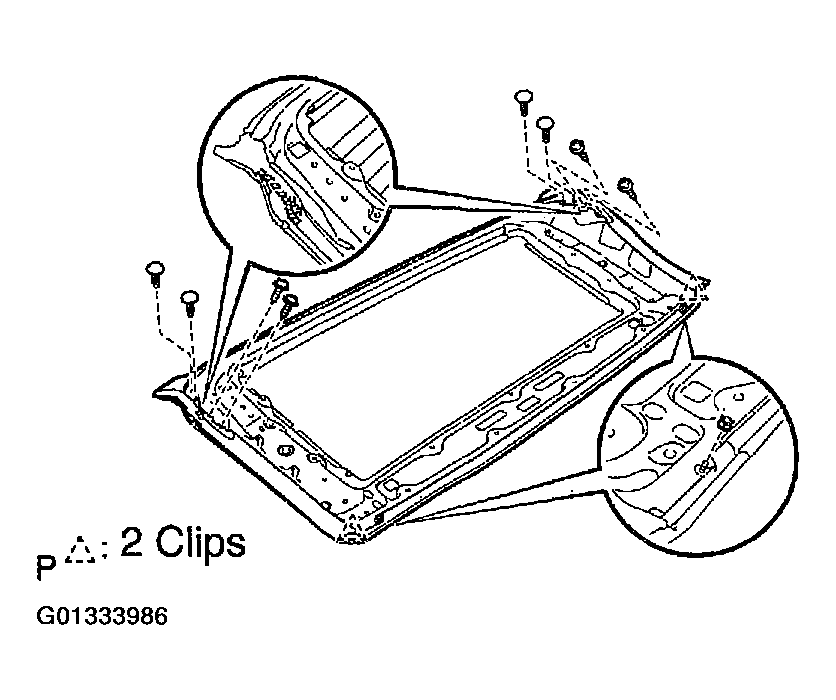

Fig 5: Removing Screws, Nuts And Clips

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

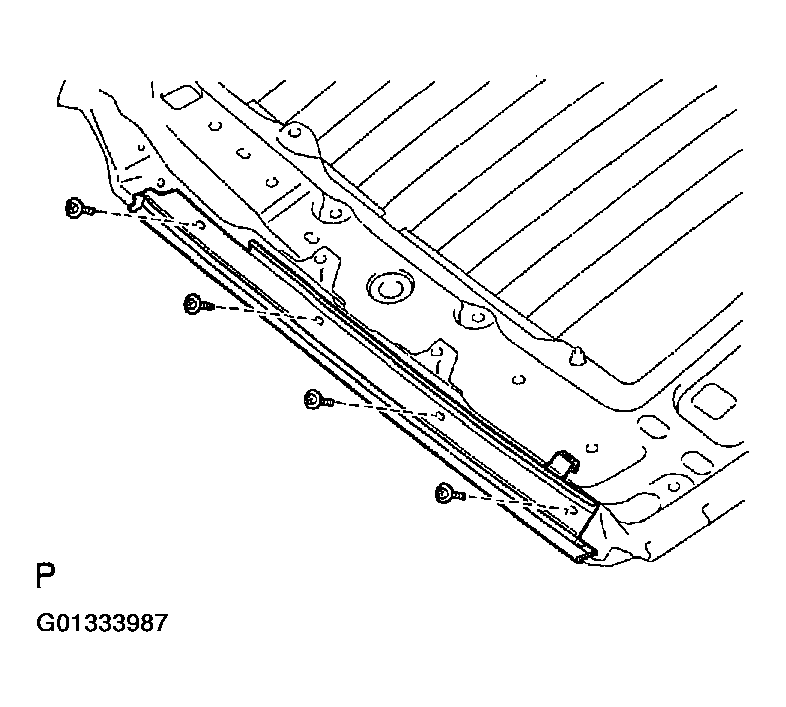

1. Remove the 4 screws and rear roof side rail weatherstrip retainer RH.

Fig 6: Removing Screws And Rear Roof Side Rail Weatherstrip Retainer RH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 40 N.m (408 kgf.cm, 30 ft.lbf)
