Sliding Roof/Removable Roof Panel Sub-ASSY: Components

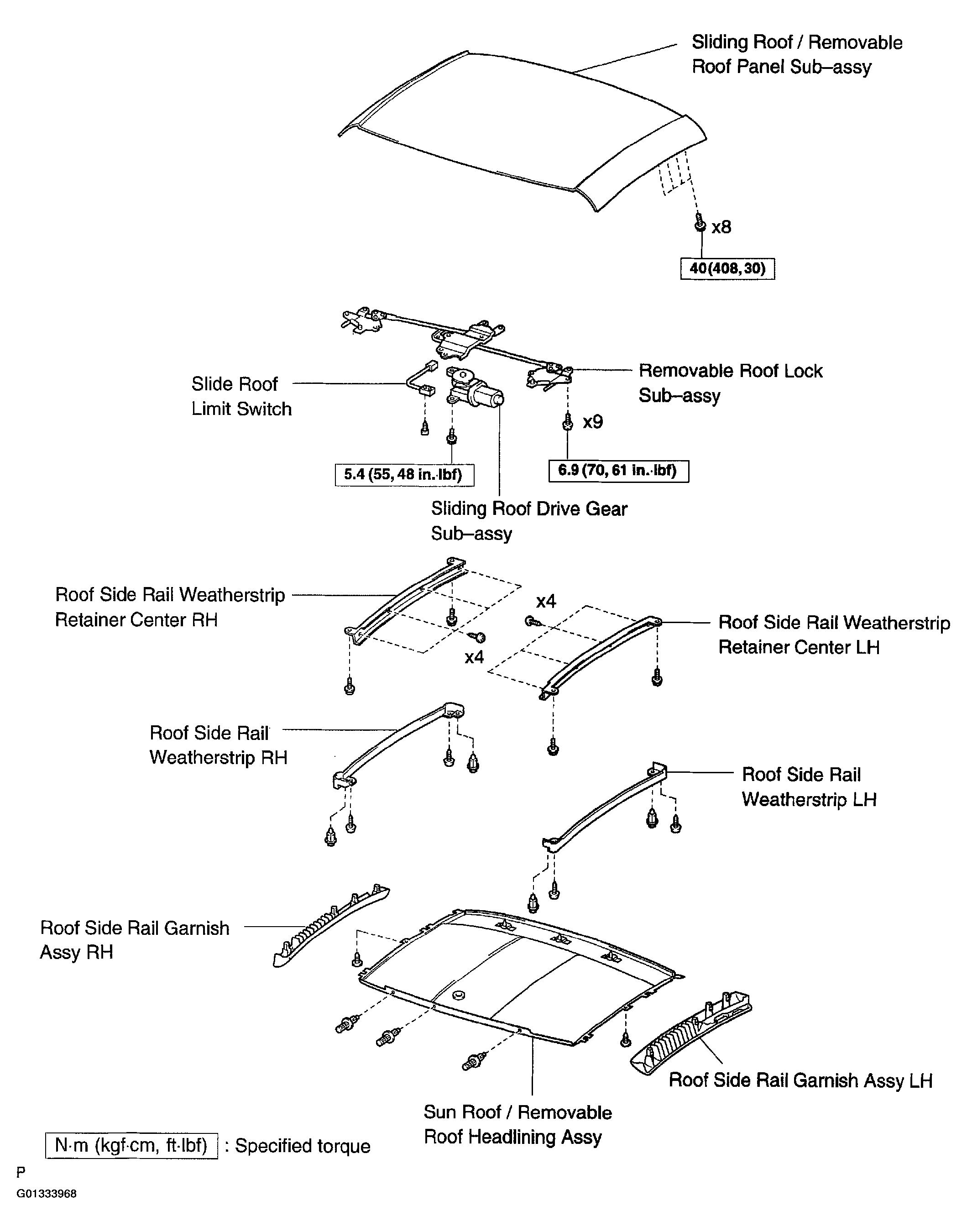

Fig 1: Identifying Sliding Roof/Removable Roof Panel Sub-Assy Components
G01333968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
