Inspection Procedure

  1. CHECK WIRE HARNESS (ECU <--> POWER WINDOW REGULATOR MOTOR ASSY LH)
    1. Disconnect the D19 ECU and P15 power window motor LH connectors.
    2. Check the continuity between the connector terminals of the D 19 and P15.

      Standard:

      Limit switch

      LIMIT SWITCH CONTINUITY CONDITIONS REFERENCE

      Symbols (Terminal No.) Specified condition
      LMT (D19-10) <--> LMT (P15-2) Continuity
      SGND (D19-11) <--> E (P15-6) Continuity

      Pulse sensor

      PULSE SENSOR CONTINUITY CONDITIONS REFERENCE

      Symbols (Terminal No.) Specified condition
      PLS (D19-21) <--> PLS (P15-5) Continuity
      SGND (D19-11) <--> E (P15-6) Continuity

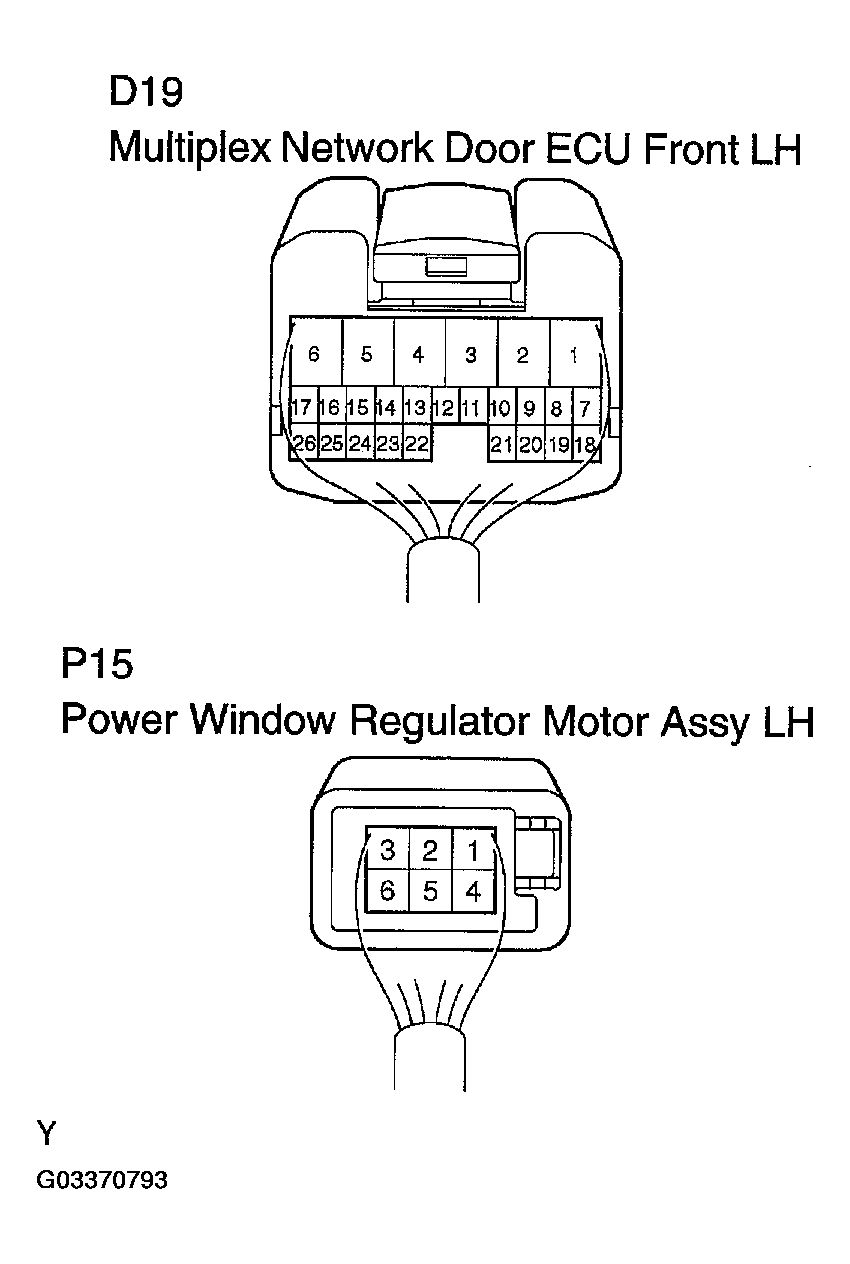

      Fig 1: Checking Wire Harness (ECU)
      G03370793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS CONNECTOR
    2. OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH
