Testing Procedure

For wiring diagram see Fig 1. For Testing procedure see Fig 2.

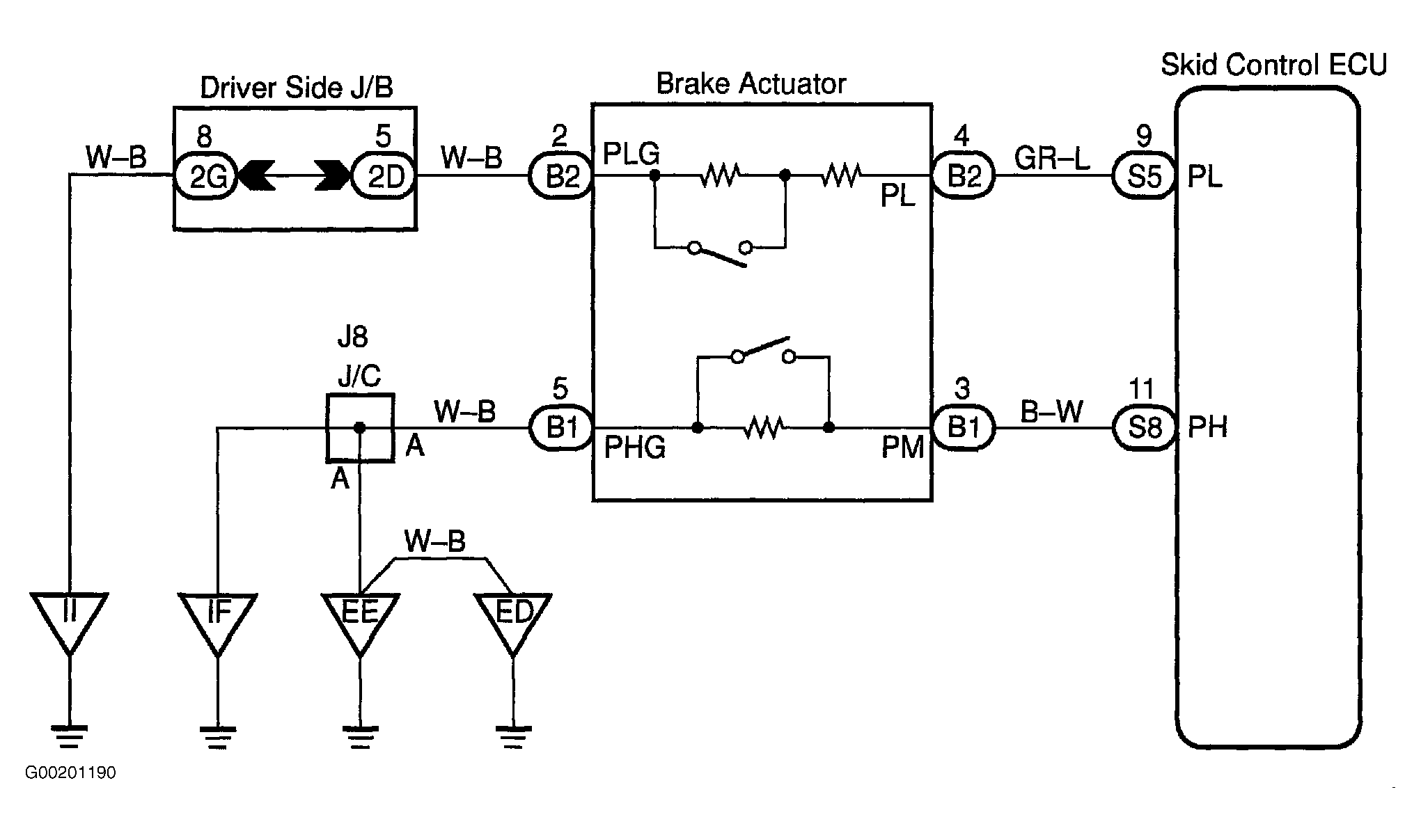

Fig 1: Wiring Diagram Pressure Switch Circuit
G00201190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

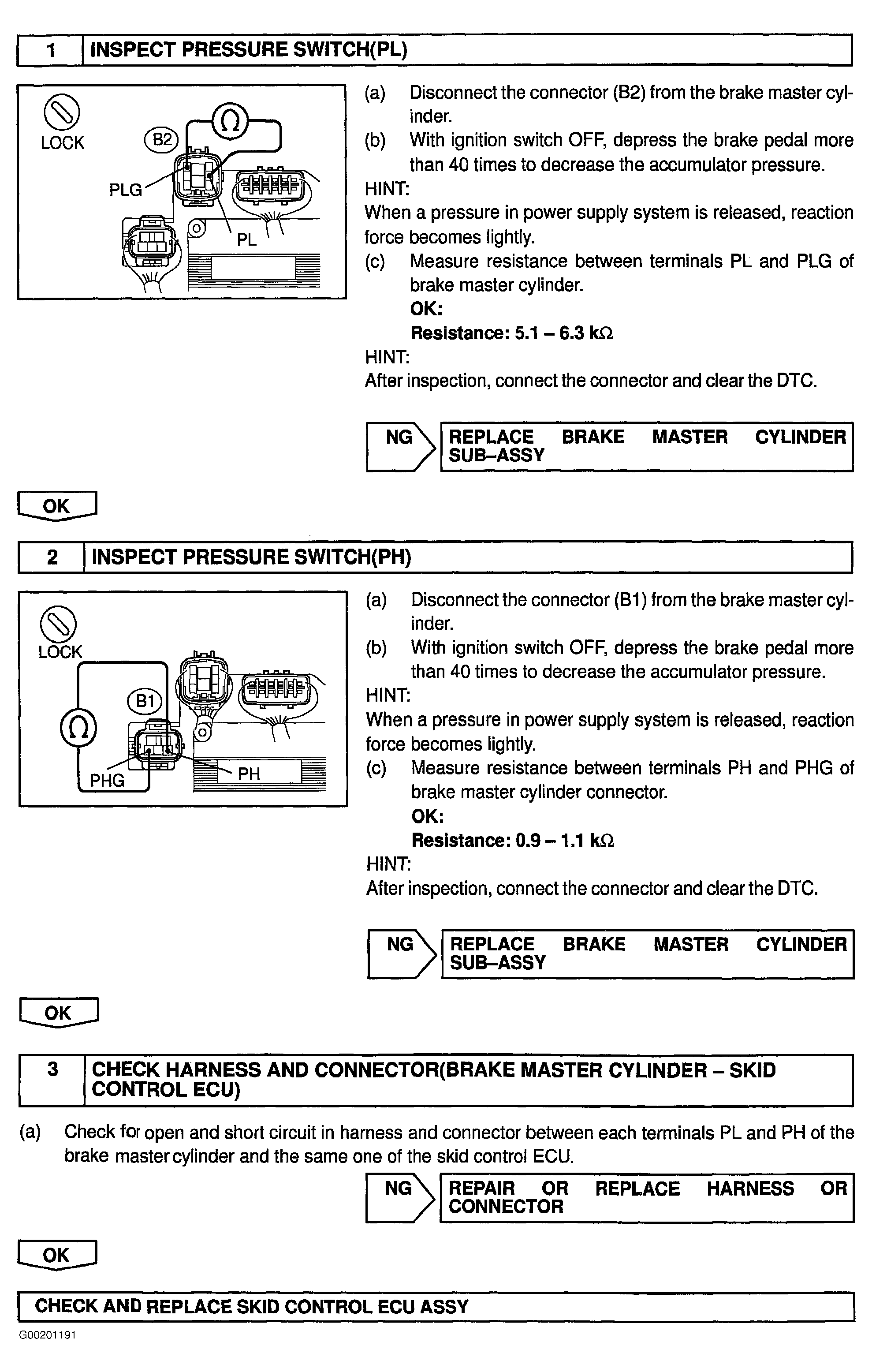

Fig 2: Testing Procedure Pressure Switch Circuit
G00201191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
