Compressor And Magnetic Clutch: Components
WARNING: This page is about a different car, the 2003 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

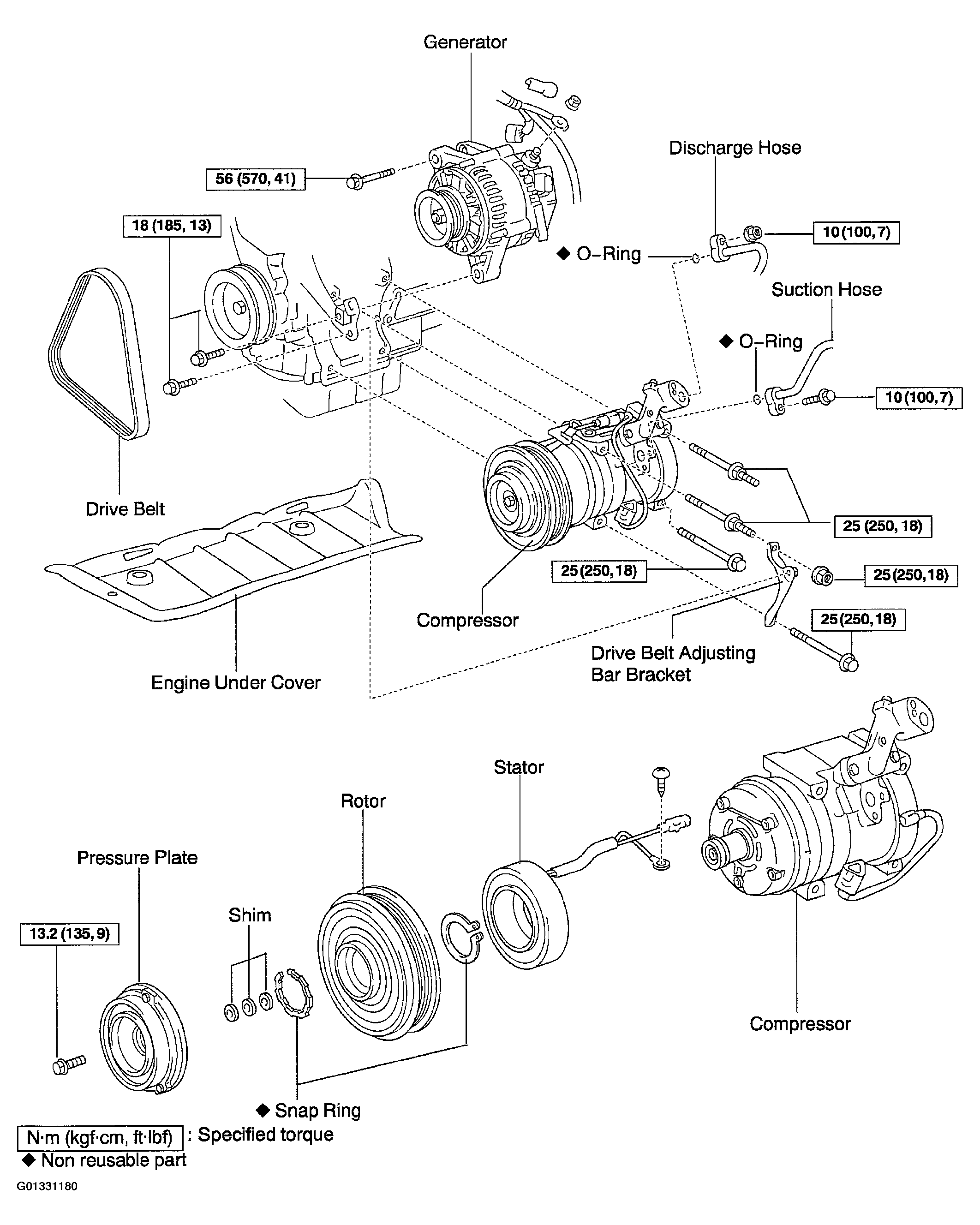

Fig 1: Removing/Installing Compressor, Magnetic Clutch And Related Components And Torque Specifications
