Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
DTC INDEX

DTC Description
DTC P0571/52  STOP LIGHT SWITCH CIRCUIT
DTC P0607/54  CONTROL MODULE PERFORMANCE

When a trouble code is displayed during the DTC check, check the circuit listed for that code in Fig 1 below and proceed to appropriate DTC .

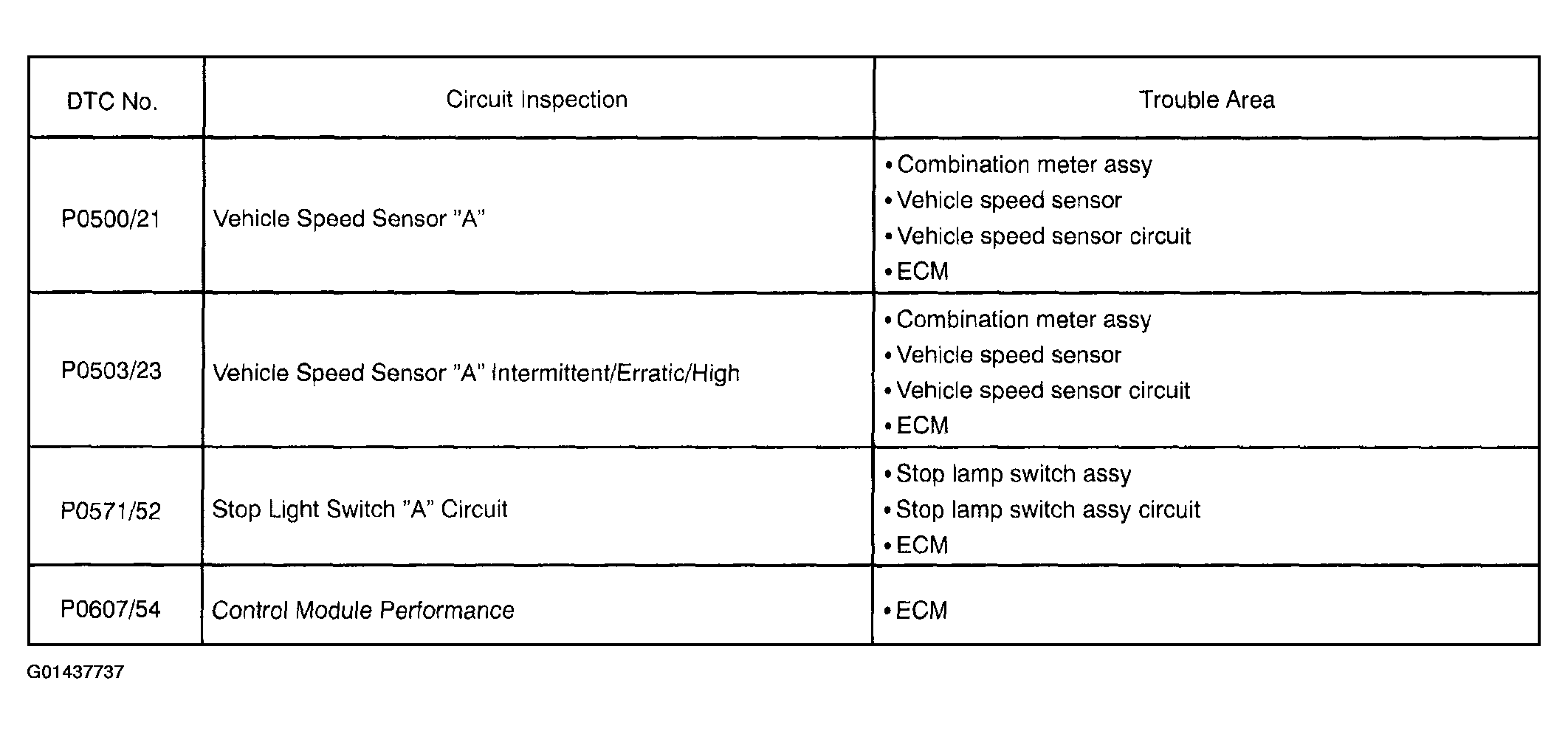

Fig 1: Diagnostic Trouble Code Chart
G01437737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
