Data List/Active Test

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

DATA LIST
HINT:

Using the DATA LIST displayed on the hand-held tester, you can read the value of the switch, sensor, actuator, etc. without parts removal. Reading the DATA LIST as the first step of troubleshooting is one way to shorten the labor time.
1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Read the DATA LIST according to the display on the tester.
Multiplex network body ECU (Driver door ECU):

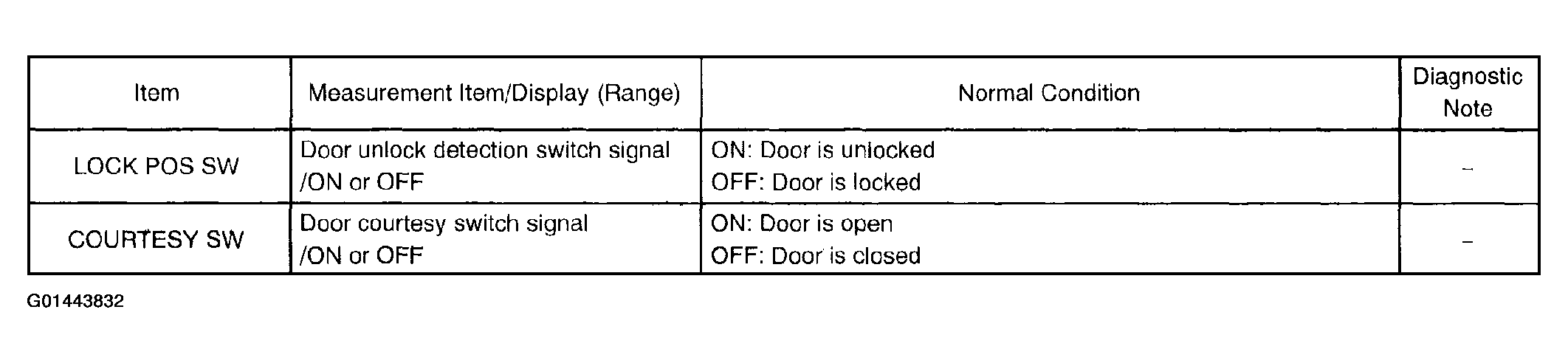

Fig 1: Multiplex Network Body ECU (Driver Door ECU) - Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex network body ECU (Passenger door ECU):

Fig 2: Multiplex Network Body ECU (Passenger Door ECU) - Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex network body ECU (Rear door LH ECU):

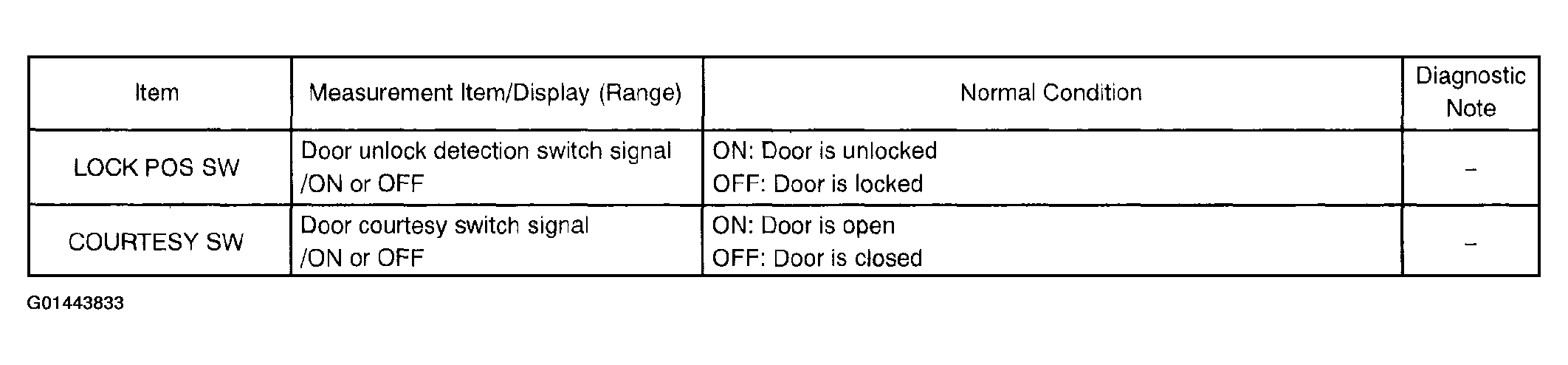

Fig 3: Multiplex Network Body ECU (Rear Door LH ECU) - Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex network body ECU (Rear door RH ECU):

Fig 4: Multiplex Network Body ECU (Rear Door RH ECU) - Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Luggage Room J/B ECU:

Fig 5: Luggage Room J/B ECU - Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Theft warning ECU:

Fig 6: Theft Warning ECU - Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ACTIVE TEST
HINT:

Performing the hand-held tester ACTIVE TEST allows relay, VSV, actuator and other items to be operator without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to shorten the labor time. The DATA LIST can be displayed during the ACTIVE TEST.
1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Perform the ACTIVE TEST according to the display on the tester.
Multiplex network body ECU (Driver door ECU):

Fig 7: Multiplex Network Body ECU (Driver Door ECU) - Active Test Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex network body ECU (Passenger door ECU):

Fig 8: Multiplex Network Body ECU (Passenger Door ECU) - Active Test Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex network body ECU (Rear left door ECU):

Fig 9: Multiplex Network Body ECU (Rear Left Door ECU) - Active Test Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex network body ECU (Rear right door ECU):

Fig 10: Multiplex Network Body ECU (Rear Right Door ECU) - Active Test Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
