Section 307 (Water Pump): Components

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

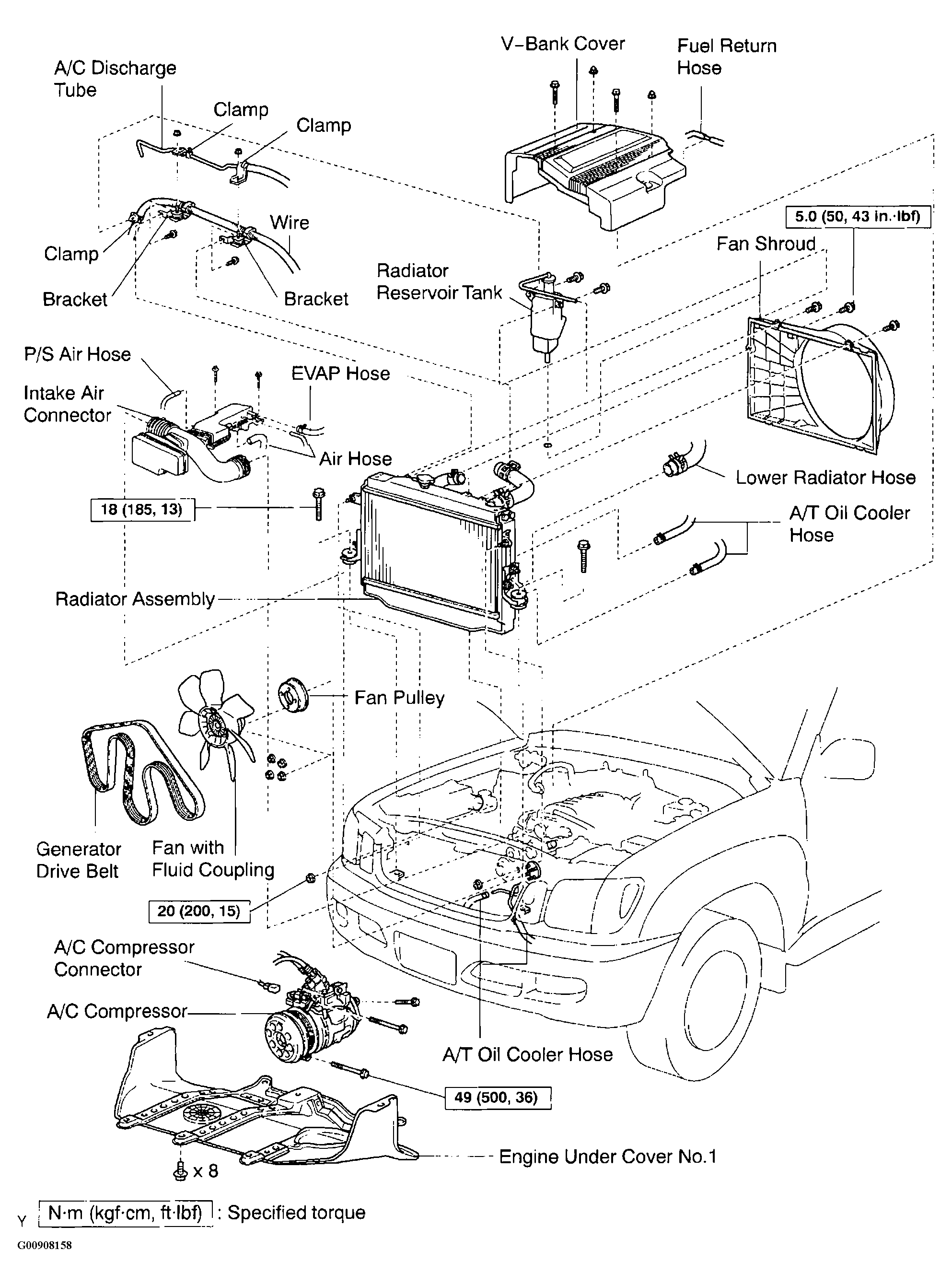

Fig 1: Identifying Radiator And Cooling Fan Components
G00908158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

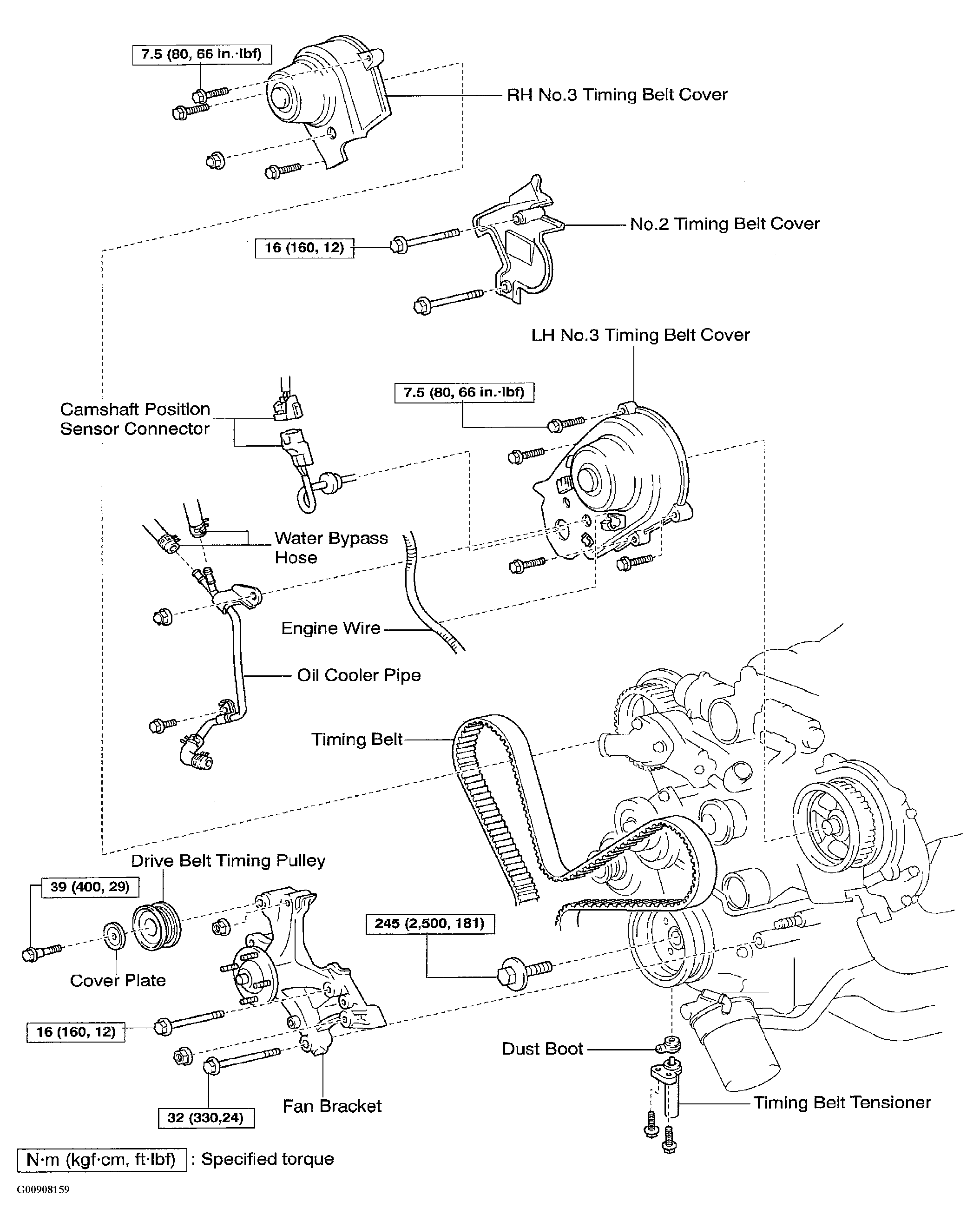

Fig 2: Identifying Fan Bracket Components
G00908159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

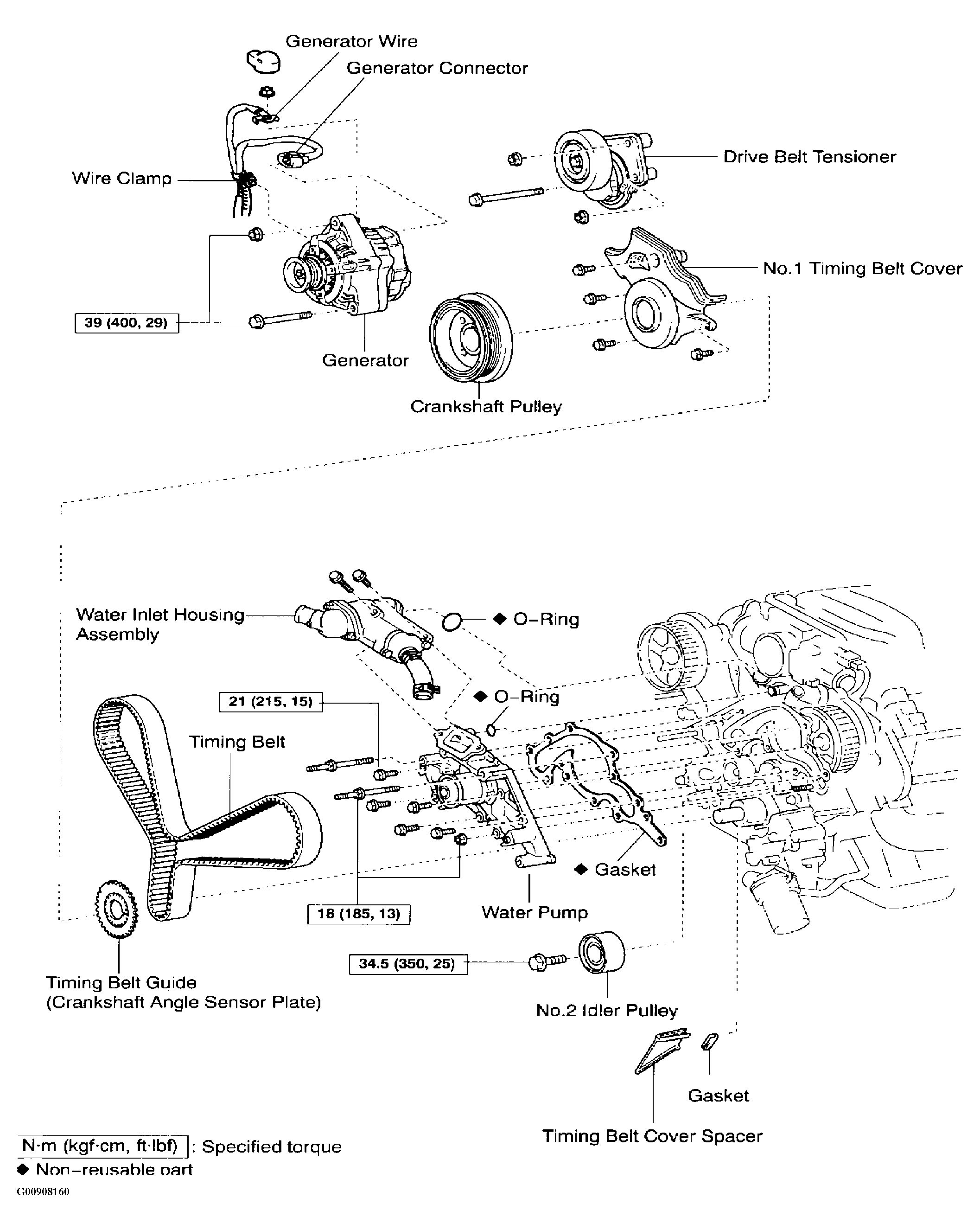

Fig 3: Identifying Water Pump Components
G00908160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
