Control Switch Circuit (Cruise Control Switch)

CRUISE CONTROL SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This circuit sends signals to the ECM depending on the cruise control main switch condition.

Battery supplies positive (+) battery voltage to the cruise control main switch. Then terminal CCS of the ECM receives voltage as the signal according to the switch condition.

Wiring Diagram:

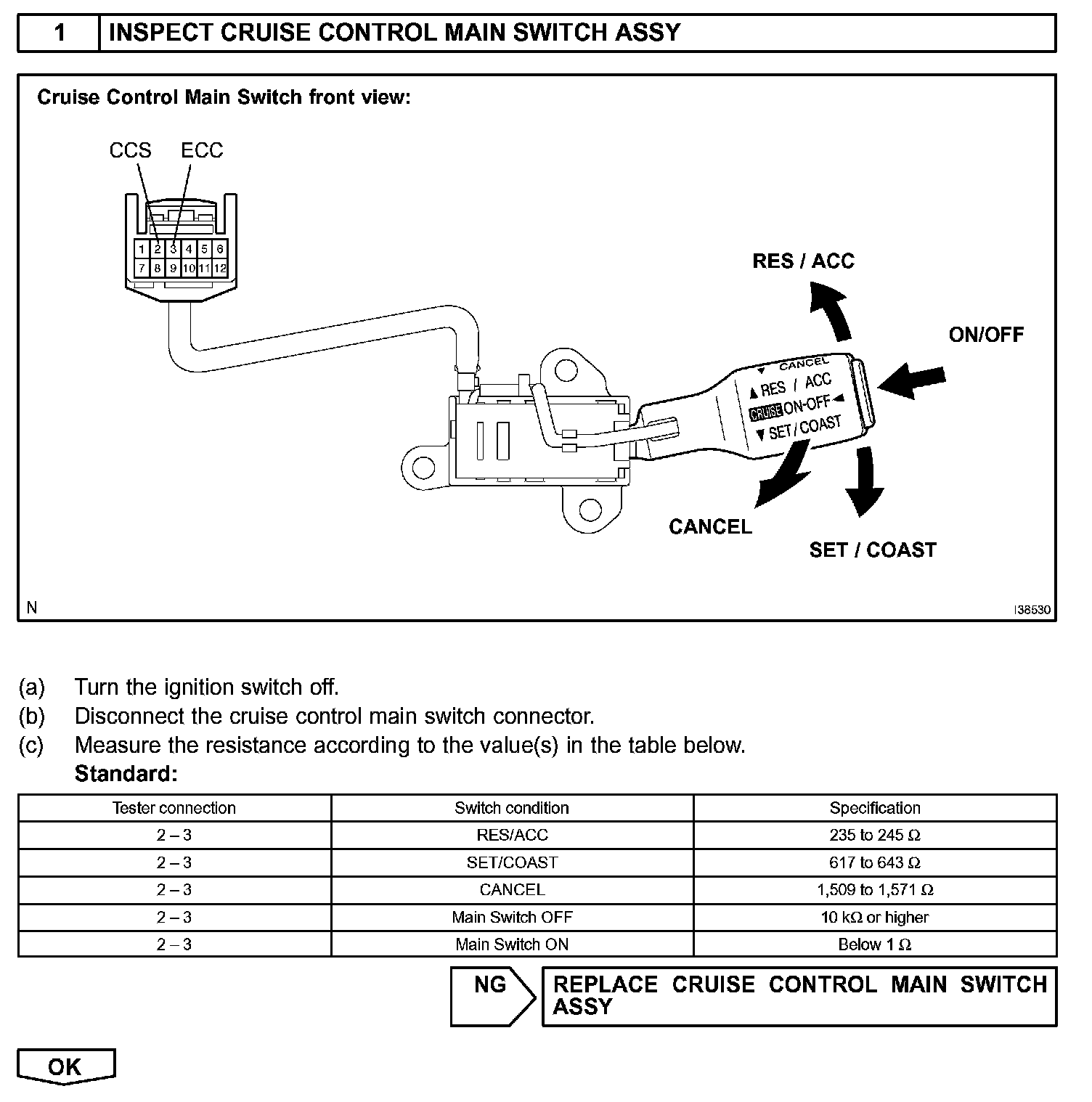

Step 1:

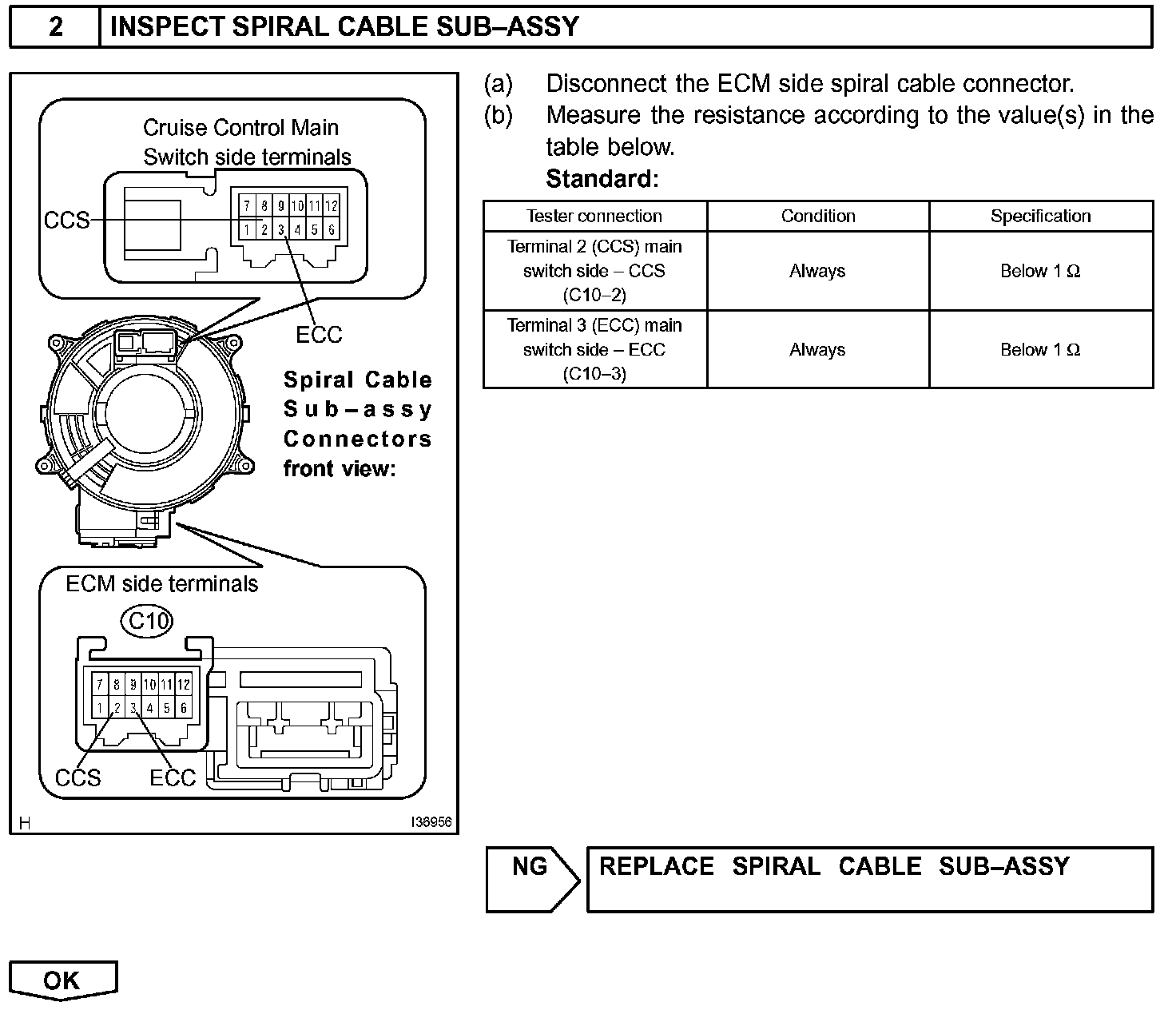

Step 2:

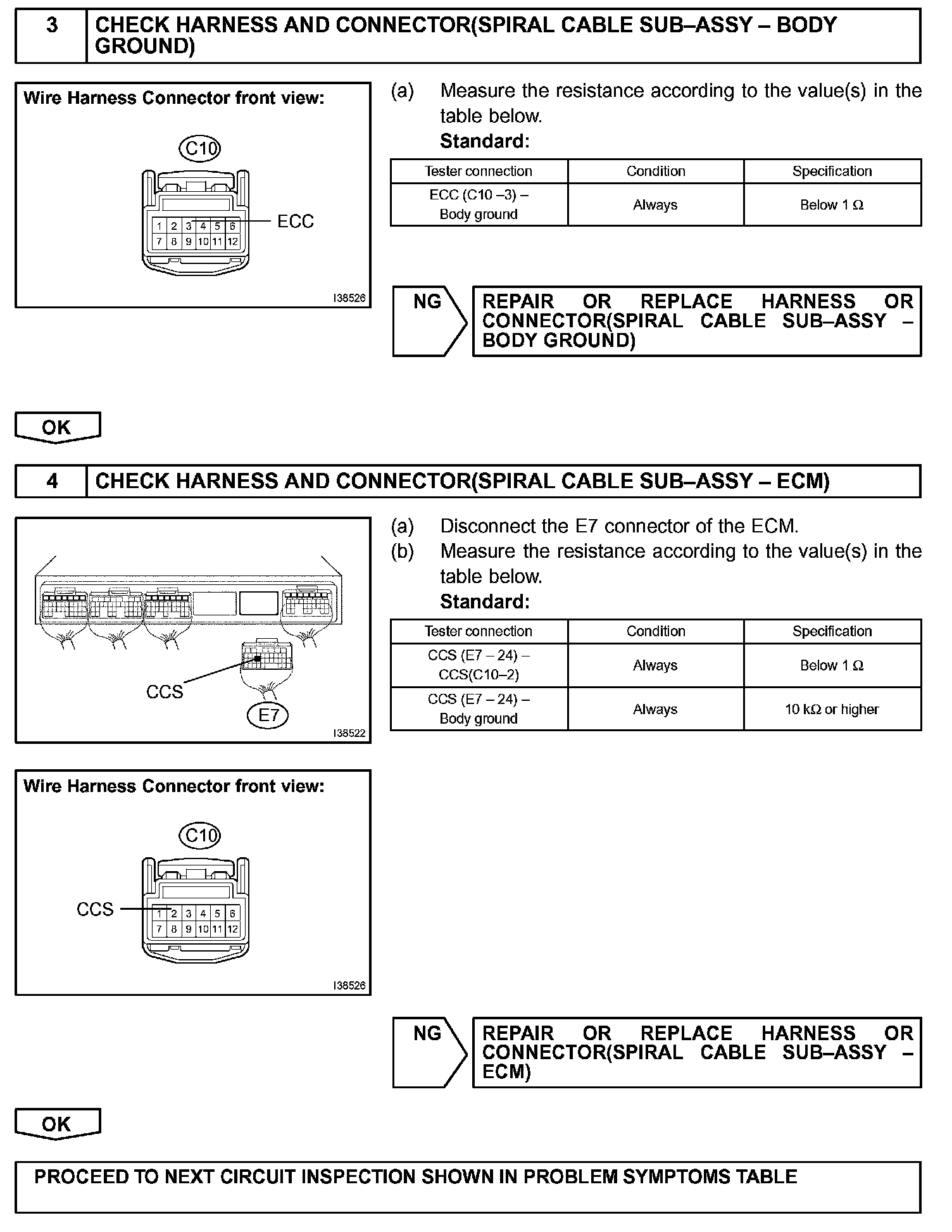

Step 3 - 4:

INSPECTION PROCEDURE
