Front Seat: Components

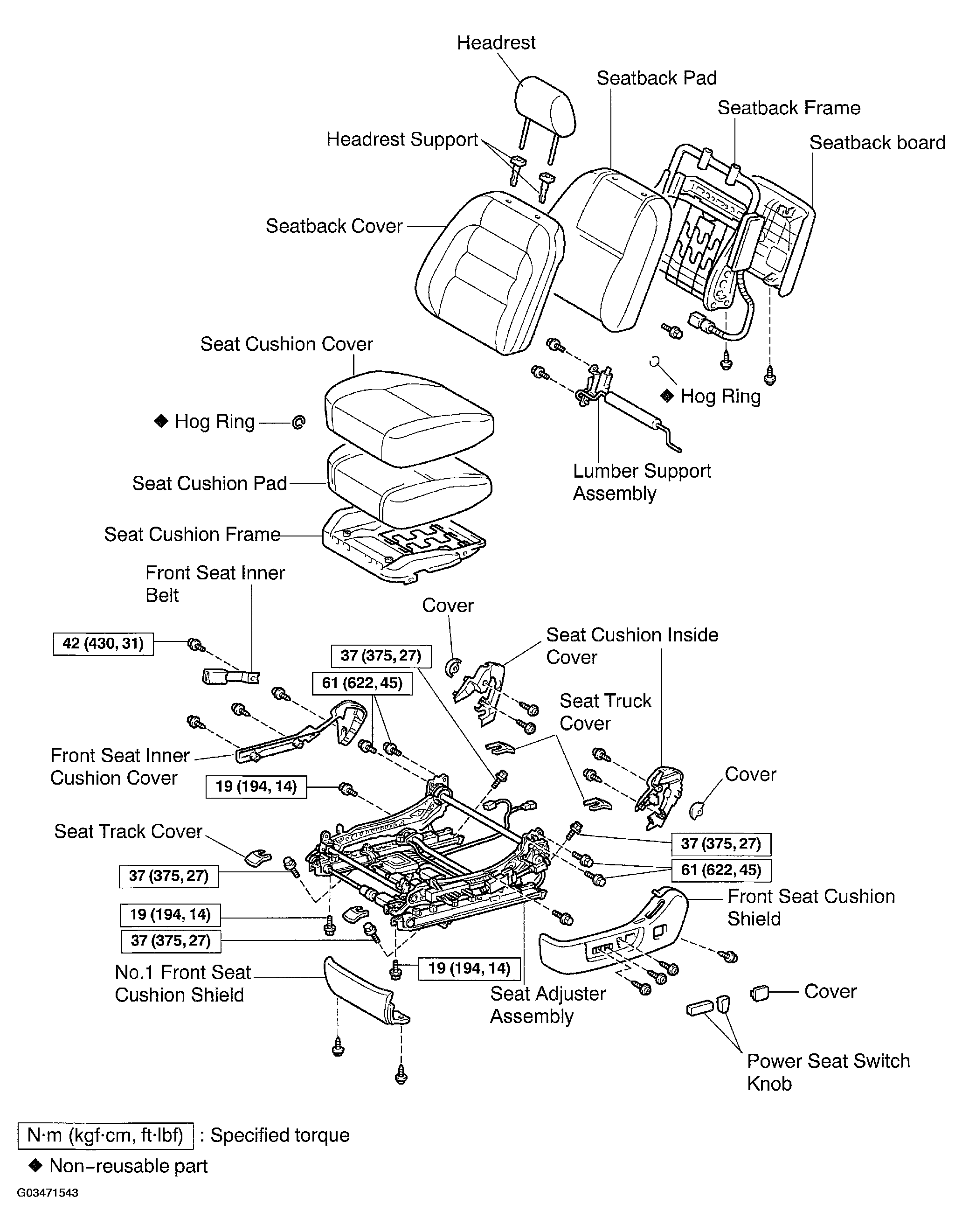

Fig 1: Identifying Front Seat Components (1 Of 2)
G03471543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

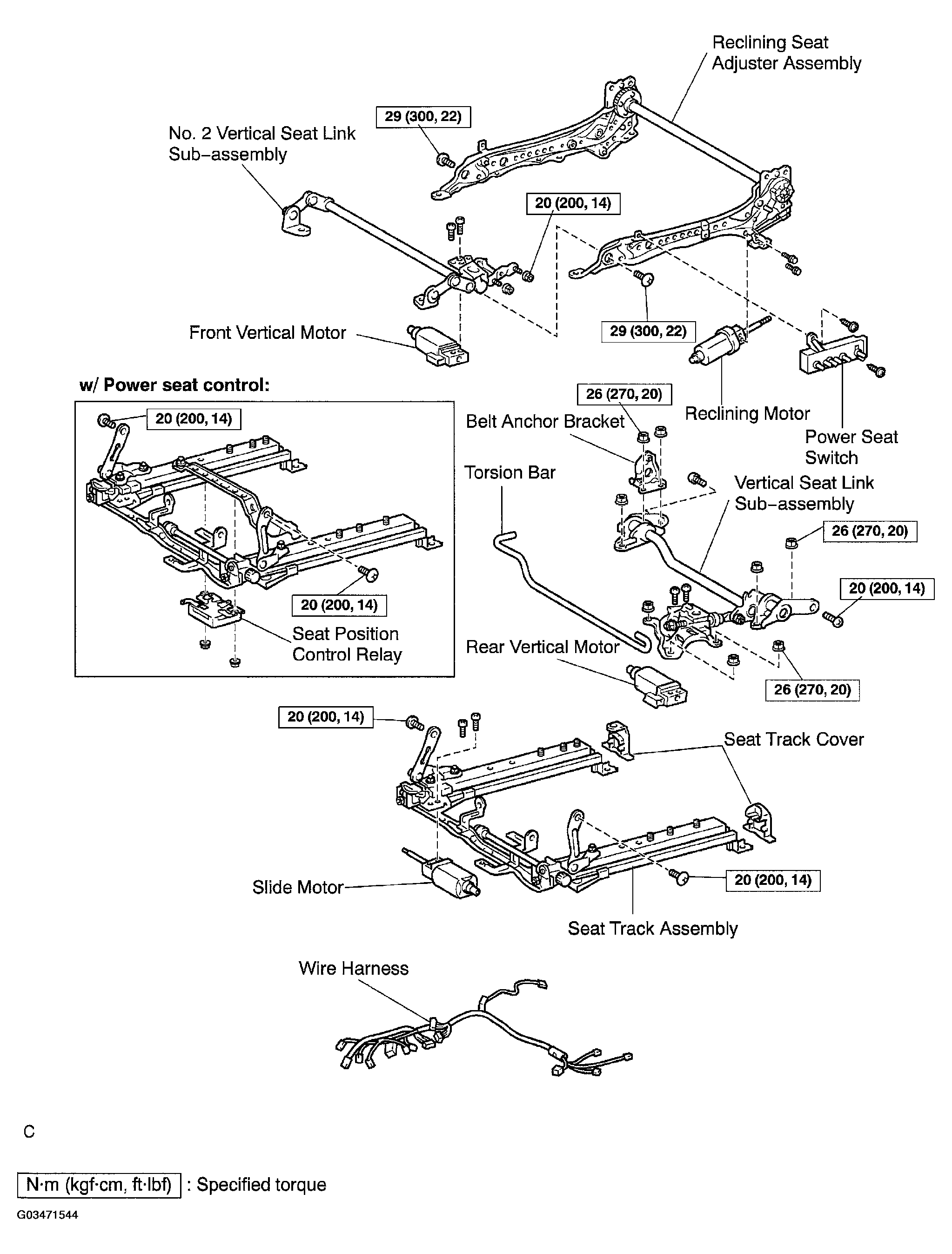

Fig 2: Identifying Front Seat Components (2 Of 2)
G03471544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
