Engine Coolant Temperature (ECT) Sensor: Components

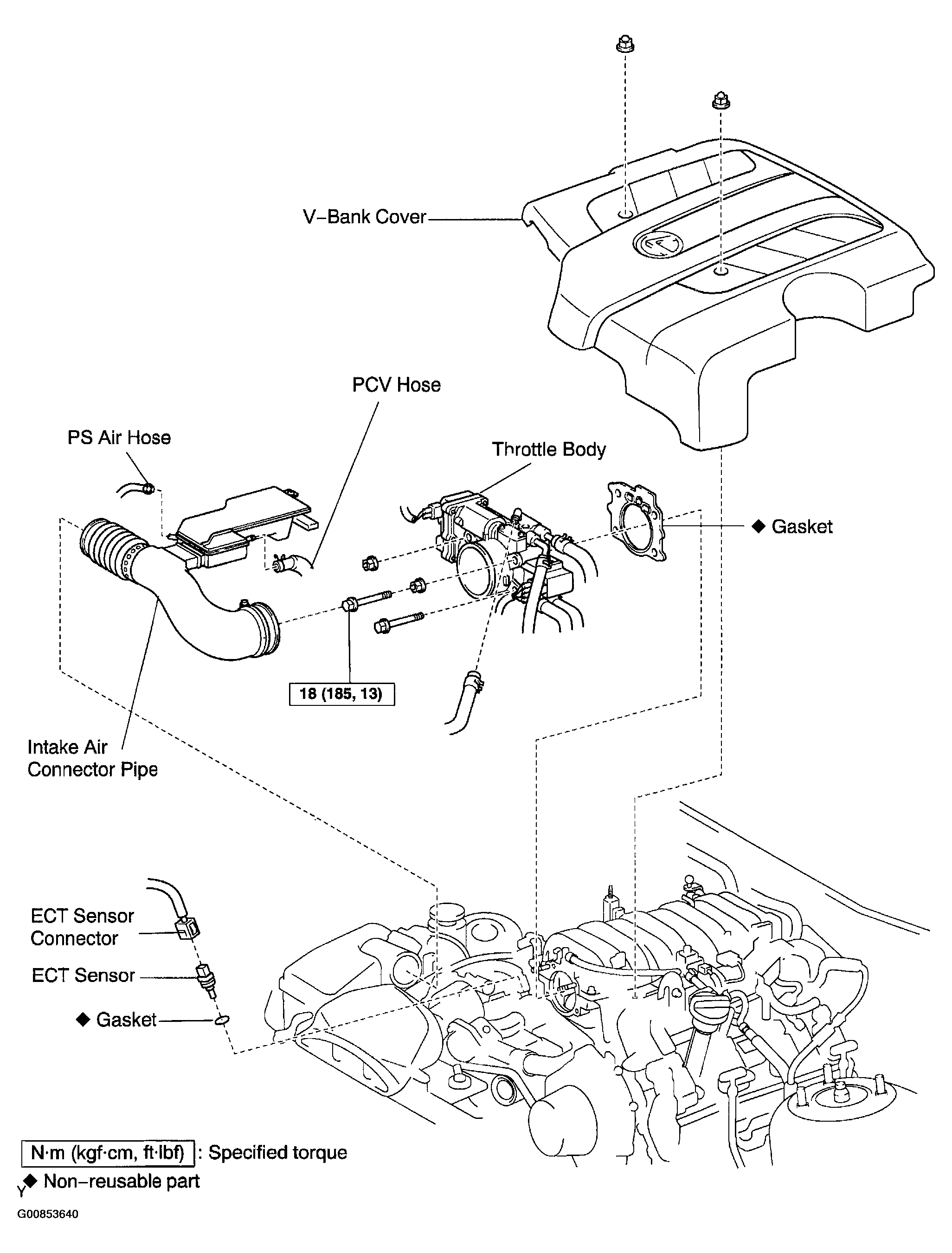

Fig 1: Identifying Engine Coolant Temperature (ECT) Sensor Components
G00853640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
