Fuel Pump: Components

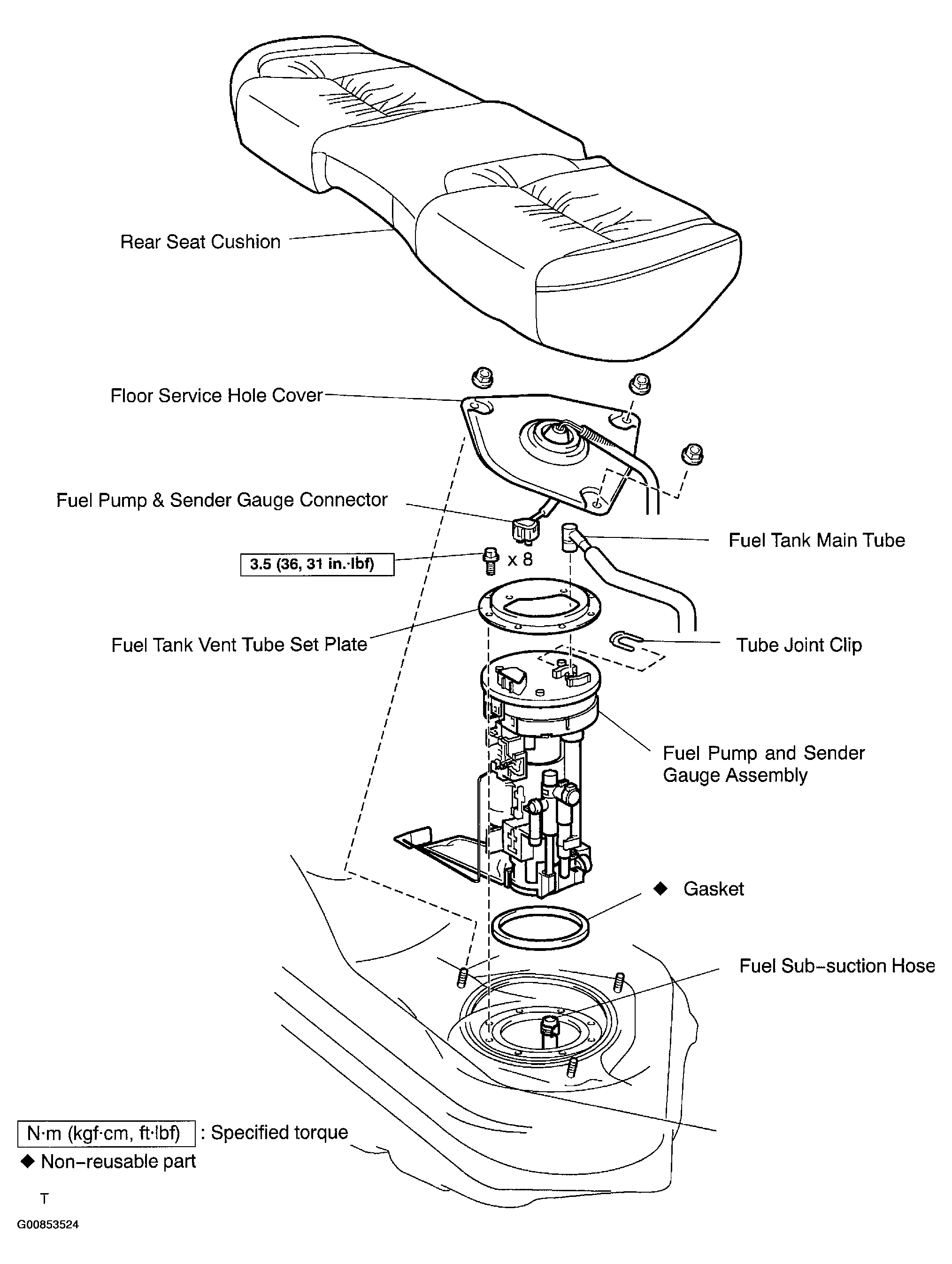

Fig 1: Identifying SFI (3UZ-FE) Components (1 Of 2)
G00853524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

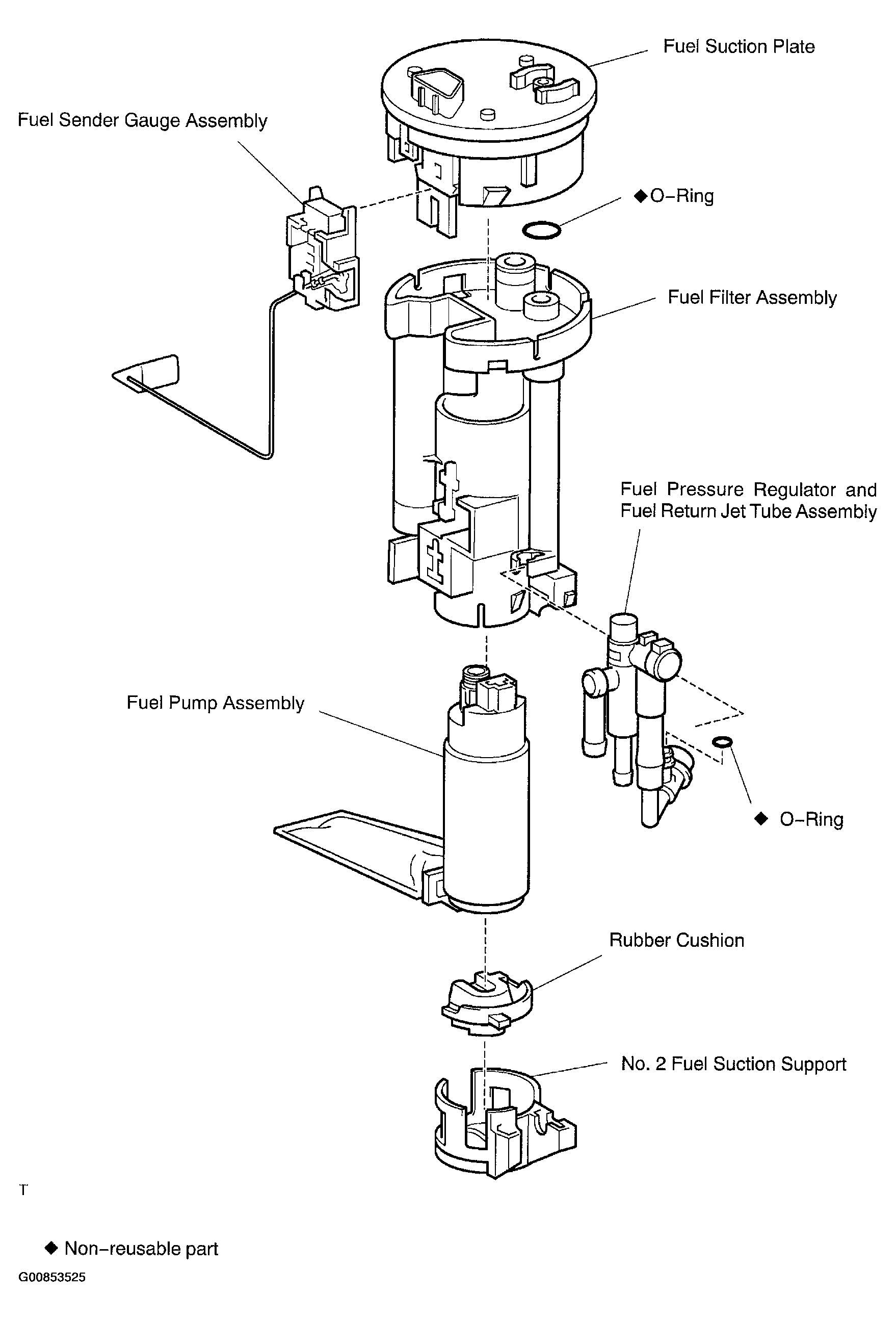

Fig 2: Identifying SFI (3UZ-FE) Components (2 Of 2)
G00853525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
