Fuel Tank And Line: Components

CAUTION:

Always use new gaskets when replacing the fuel tank or component parts.
Apply the proper torque to all parts tightened

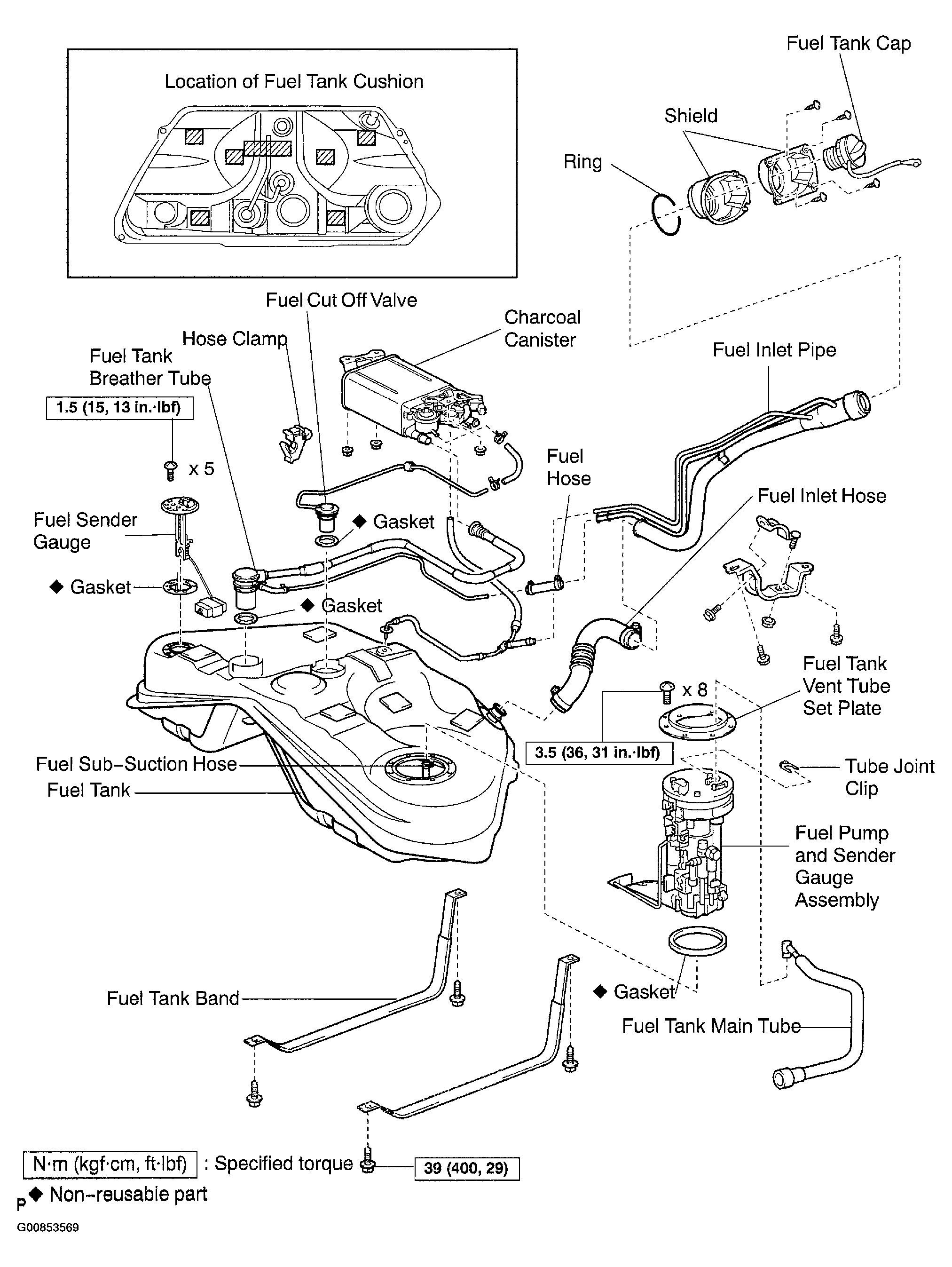

Fig 1: Identifying Fuel Tank & Line Components

G00853569

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
