Combination Meter

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.
Refer to COMBINATION METER - DIAGNOSTICS for warning light or indicator light not described in the table shown in Fig 1.

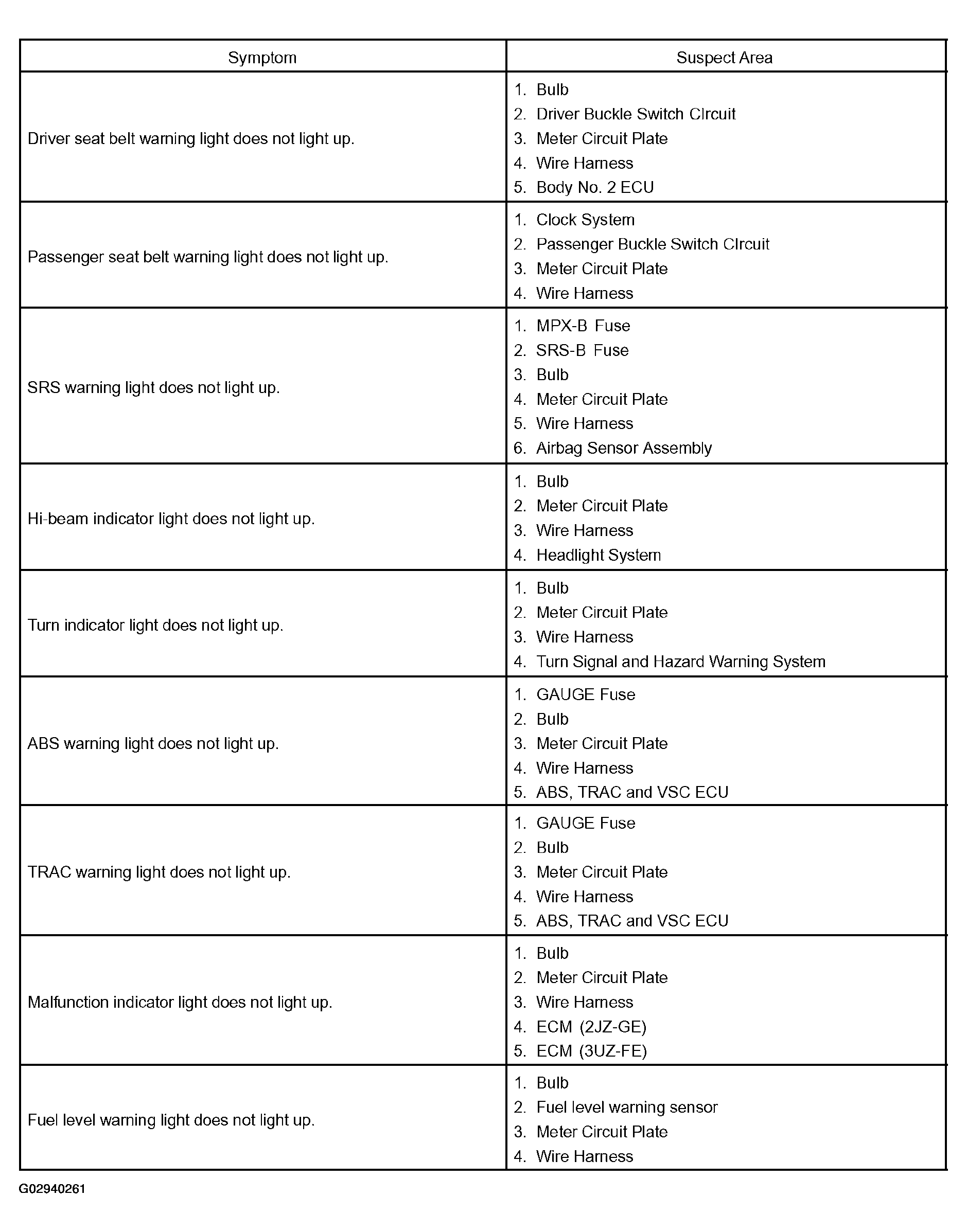

Fig 1: Problem Symptom Table (Combination Meter)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
