Auto Up/Down Function Does Not Operate At Driver Side: Wiring Diagram

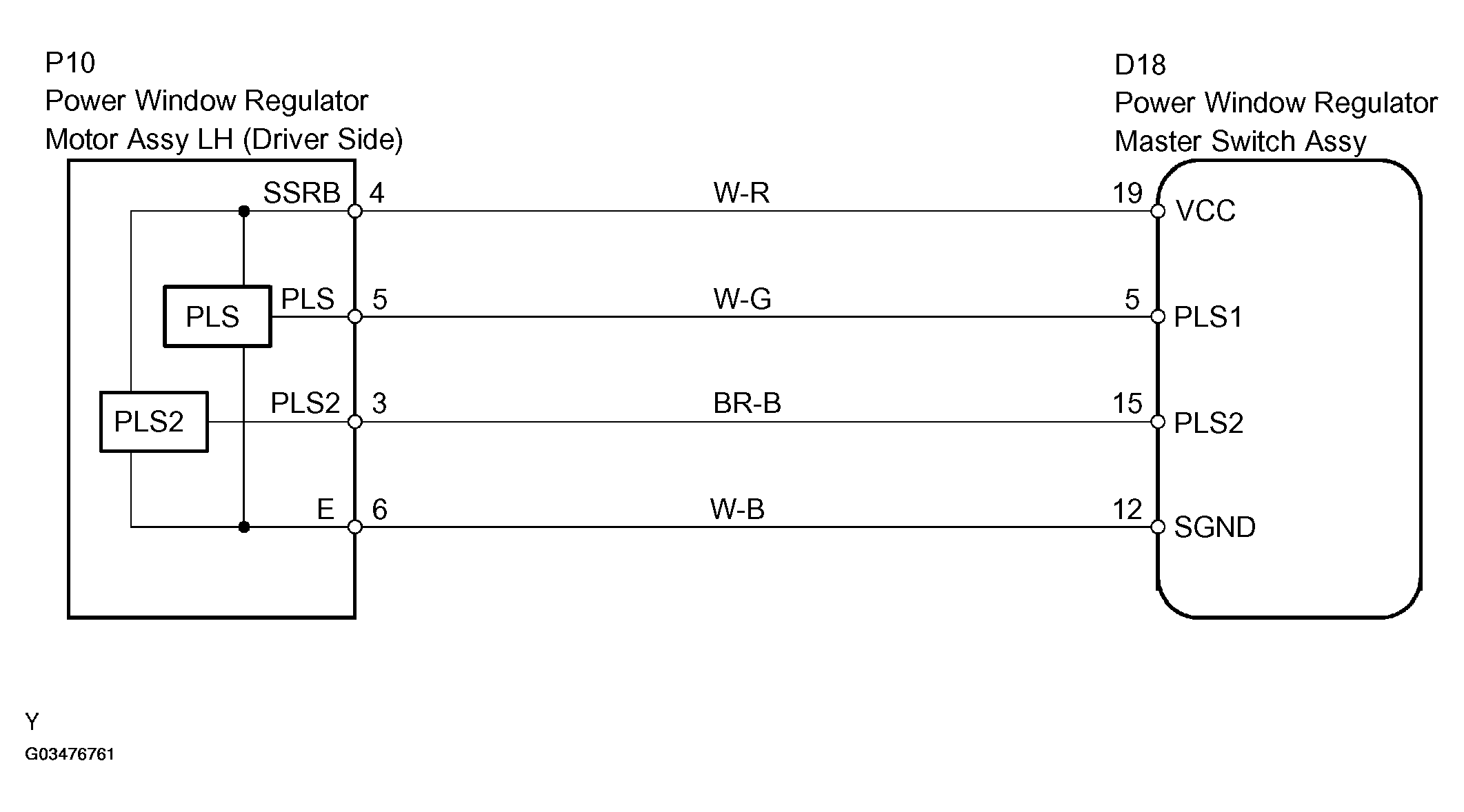

Fig 1: Identifying Auto Up/Down Function Does Not Operate At Driver Side Wiring Diagram
G03476761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
