Throttle W/Motor Body ASSY (2UZ-FE): Components

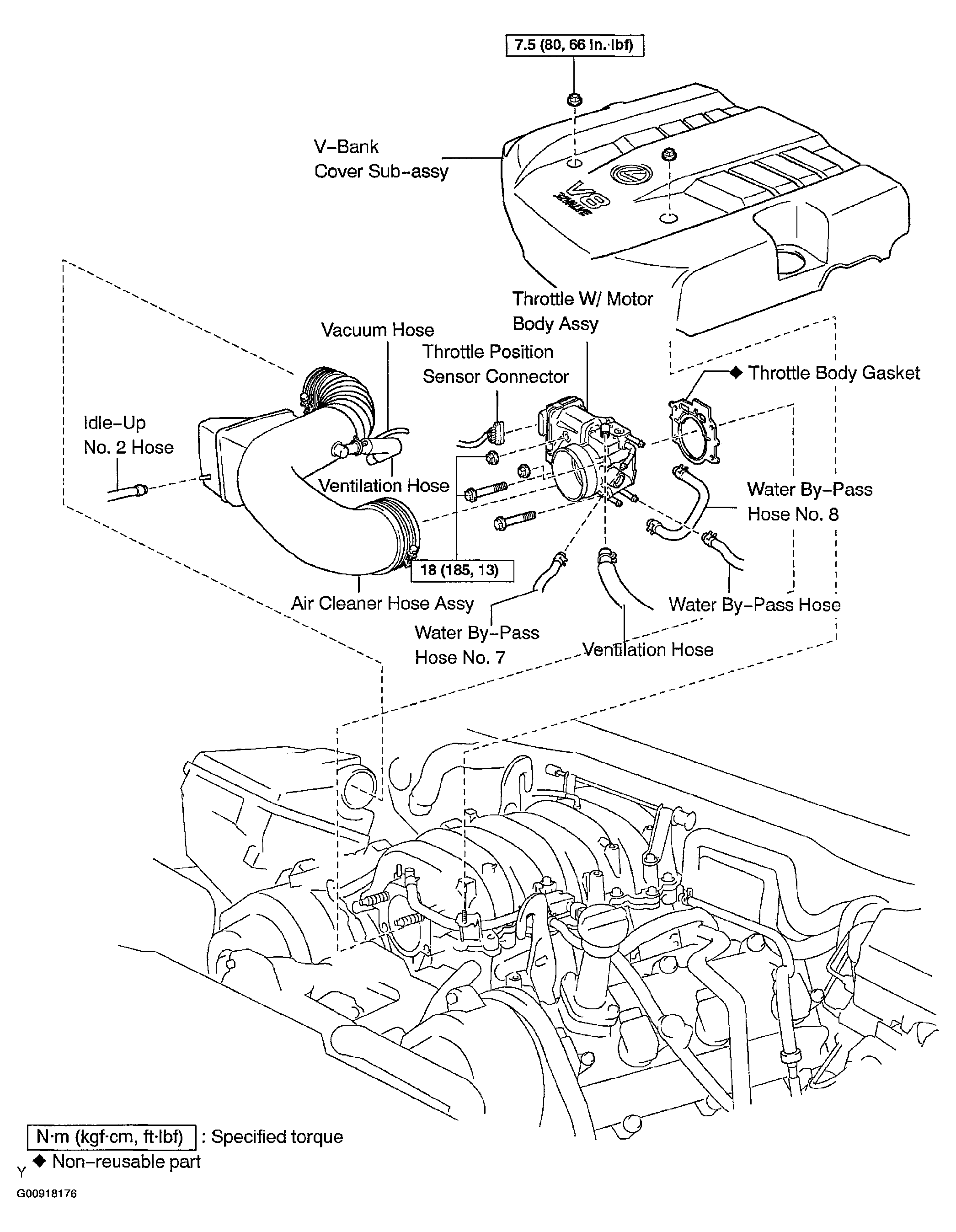

Fig 1: Identifying Throttle W/Motor Body Assembly Components
G00918176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
