Oil Pump: Components

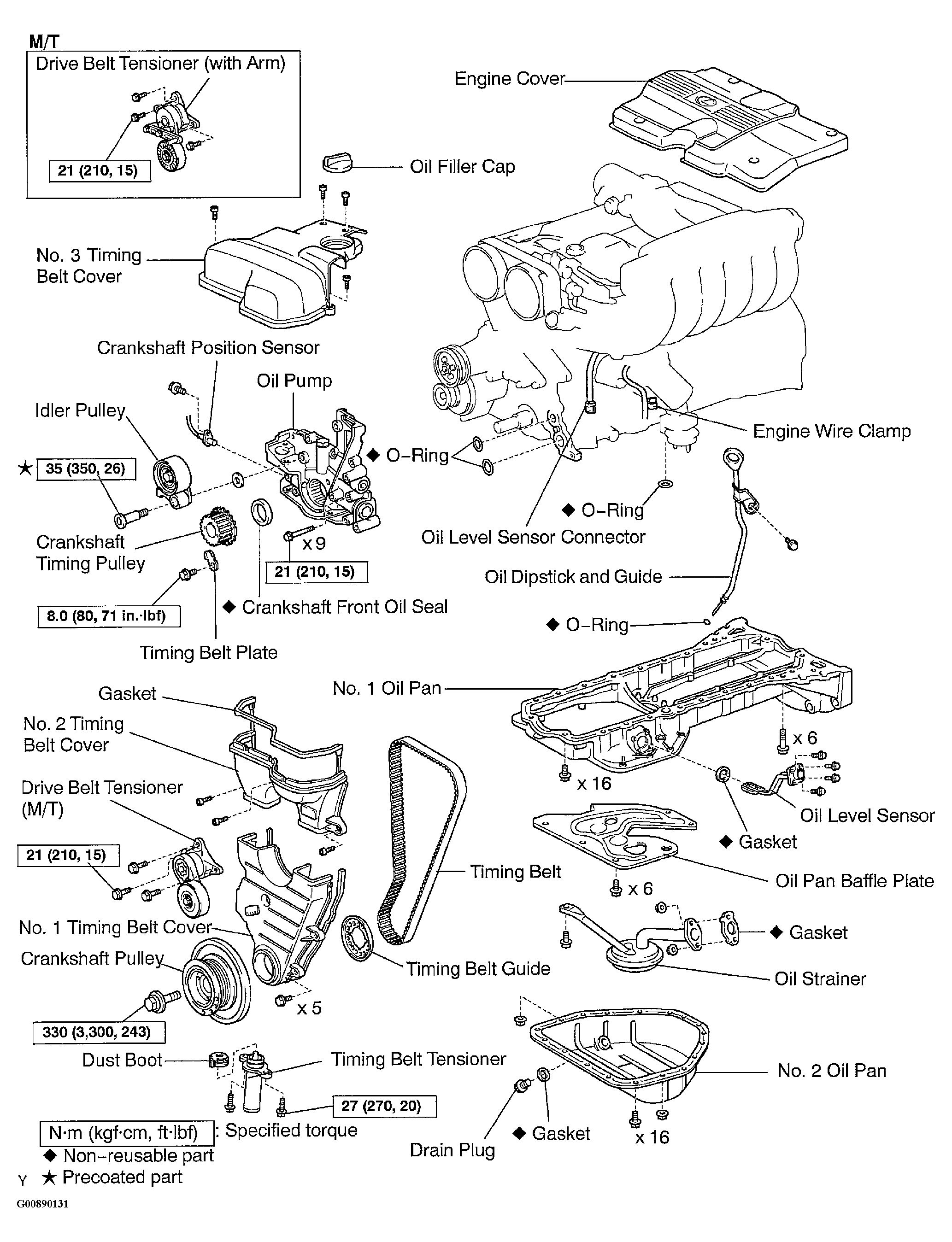

Fig 1: Identifying Oil Pump Components (1 Of 2)
G00890131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

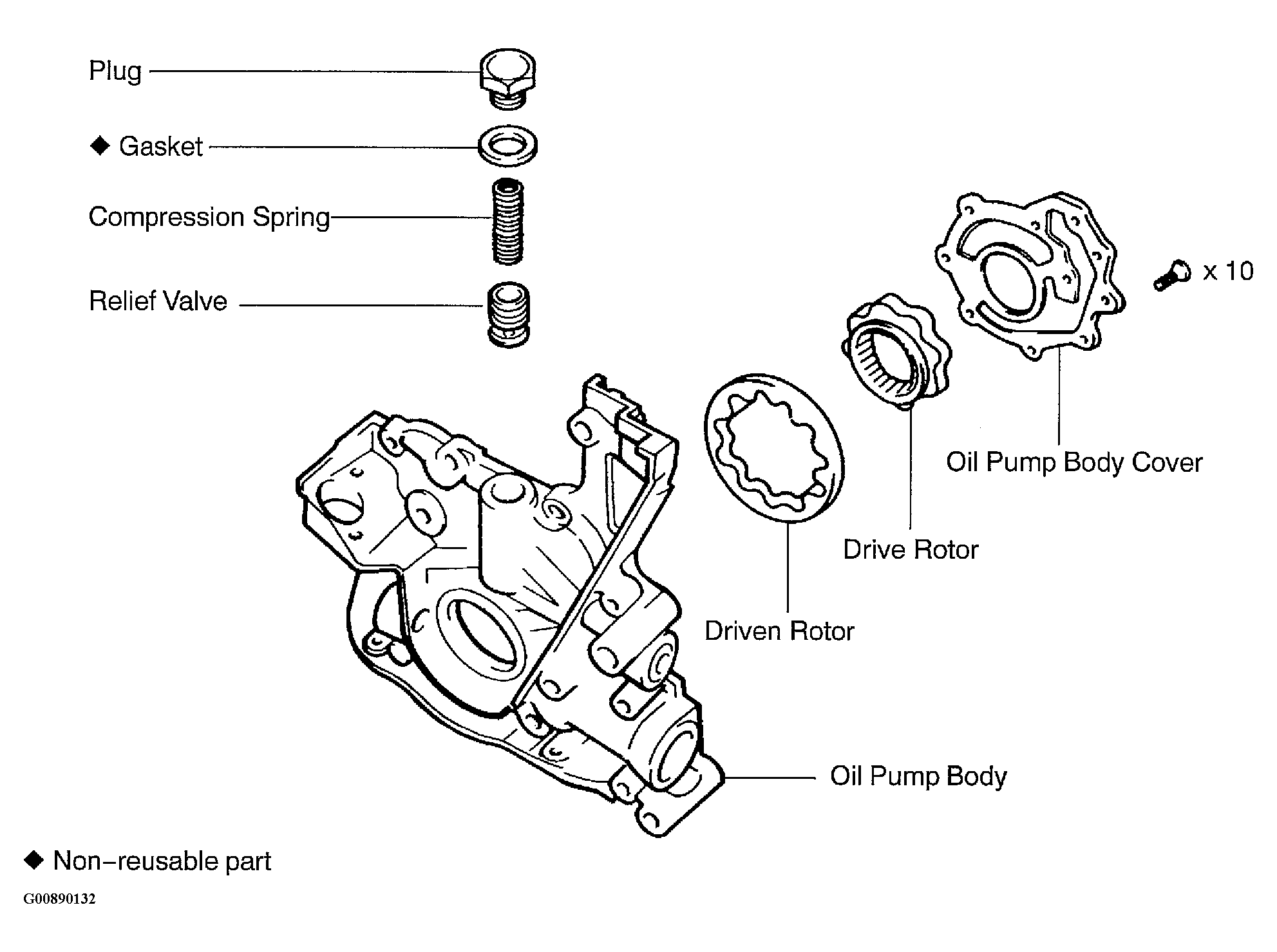

Fig 2: Identifying Oil Pump Components (2 Of 2)
G00890132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
