Typical Malfunction Thresholds

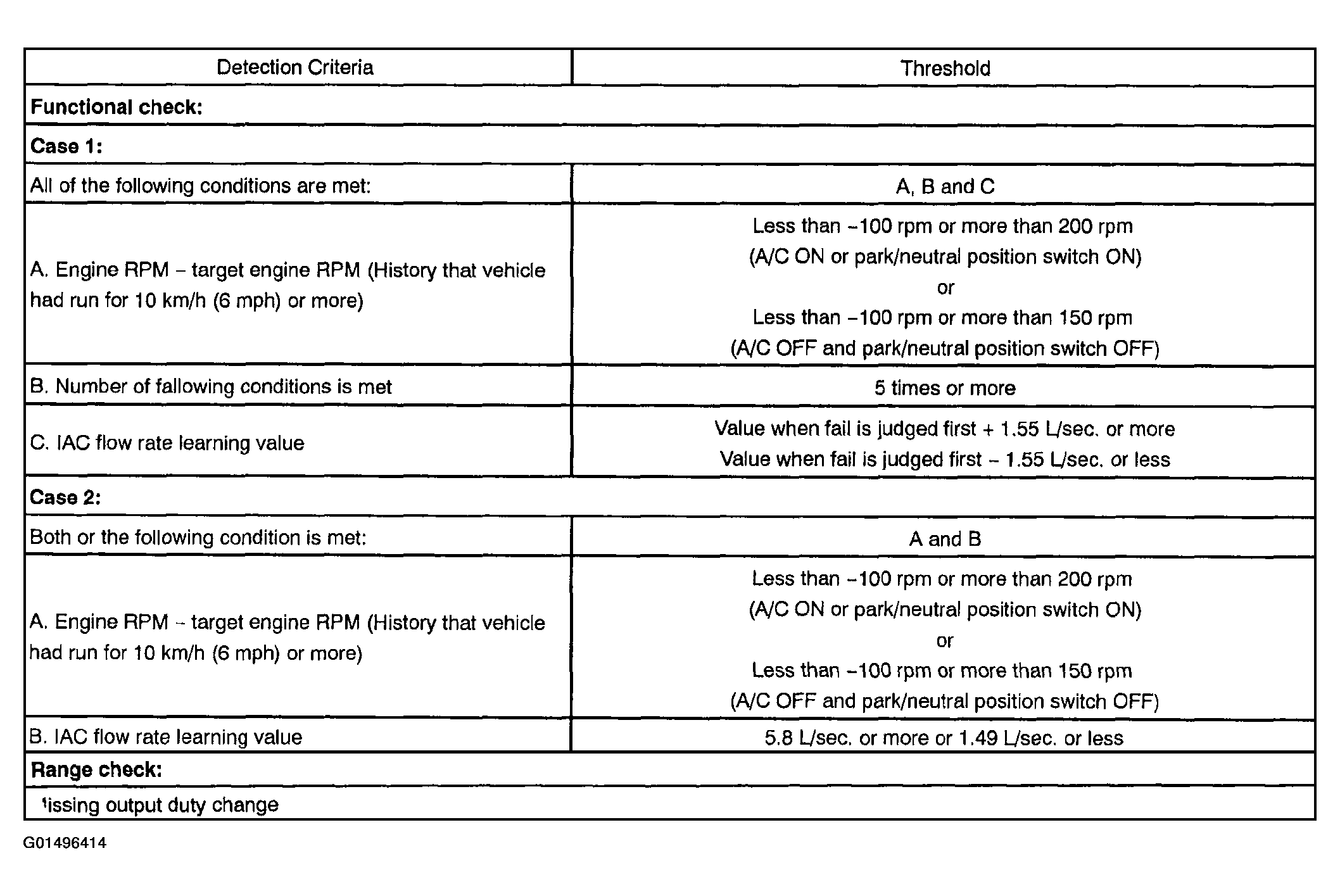

Fig 1: Typical Malfunction Thresholds Chart
G01496414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
