Fuse Block

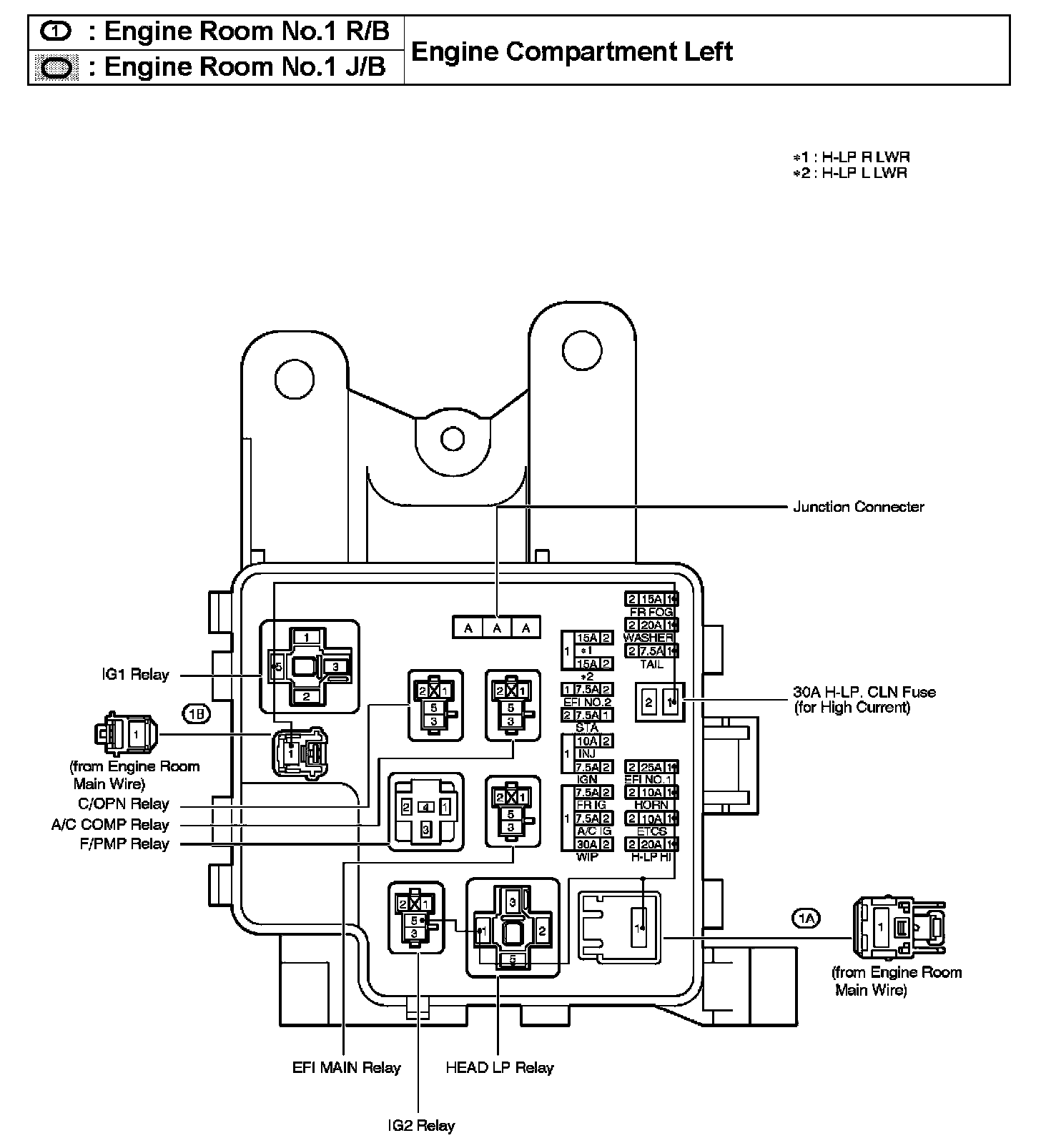

Engine Room No.1 R/B, J/B - Engine Compartment Left:

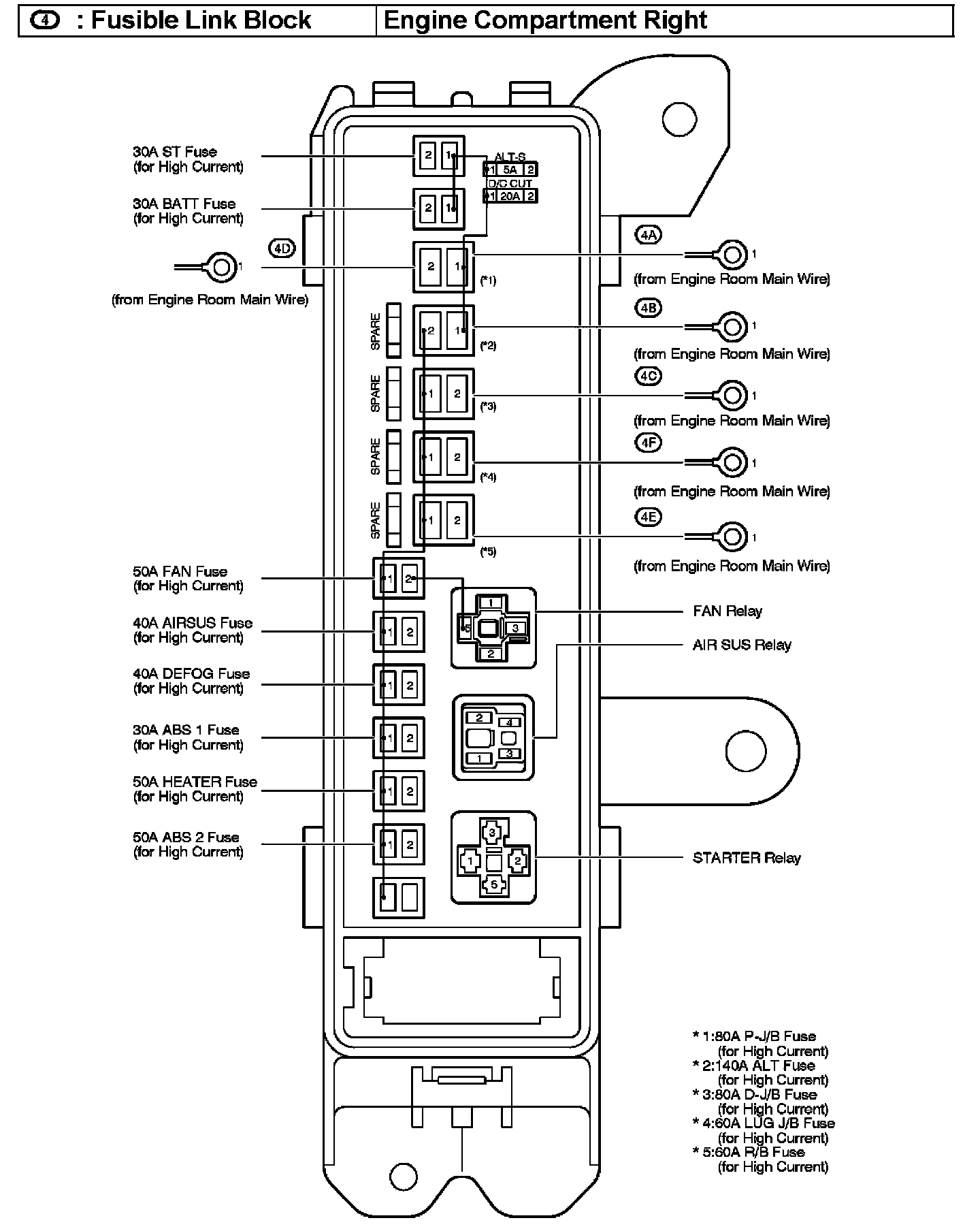

Fusible Link Block - Engine Compartment Right:

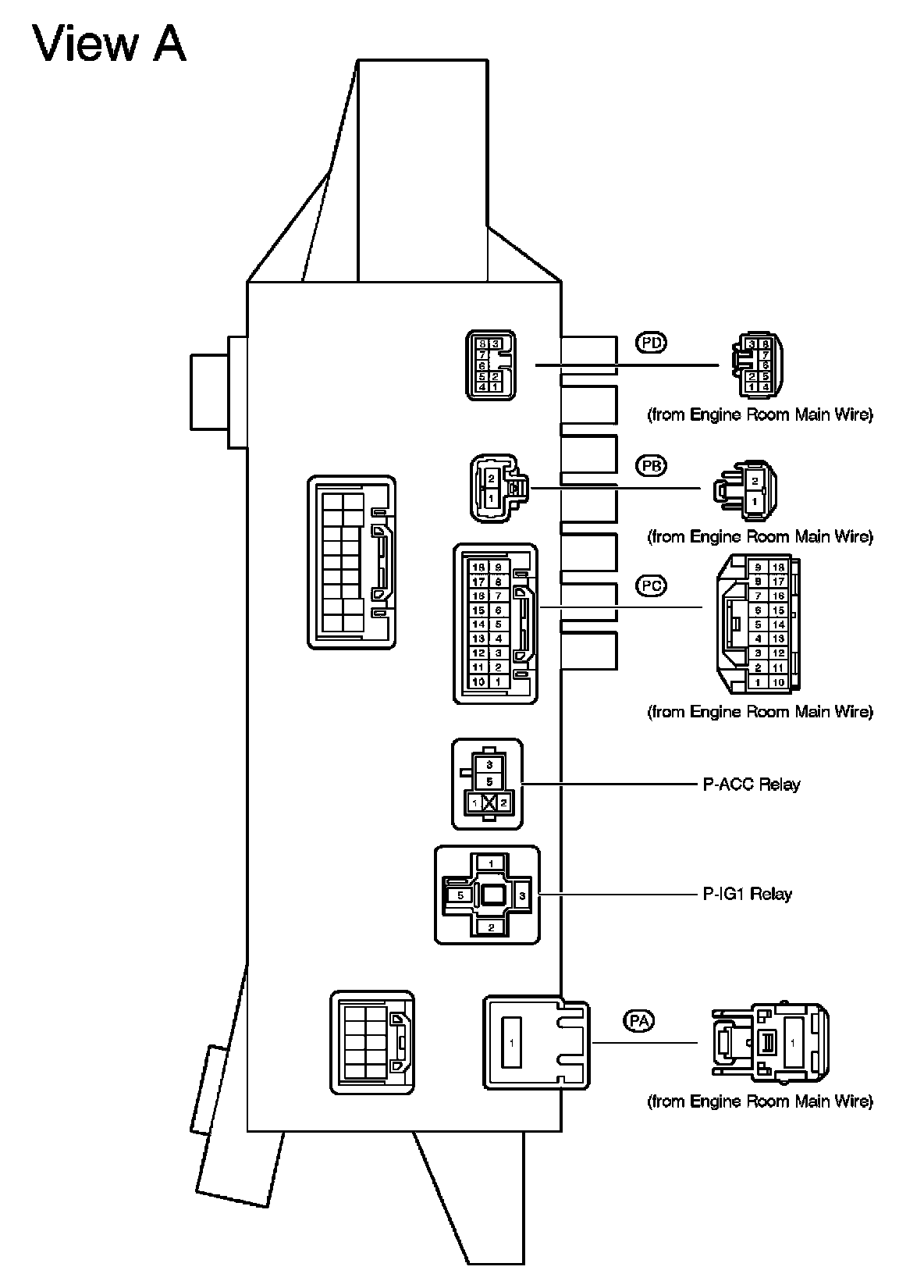

Driver Side J/B - Left Kick Panel (View A):

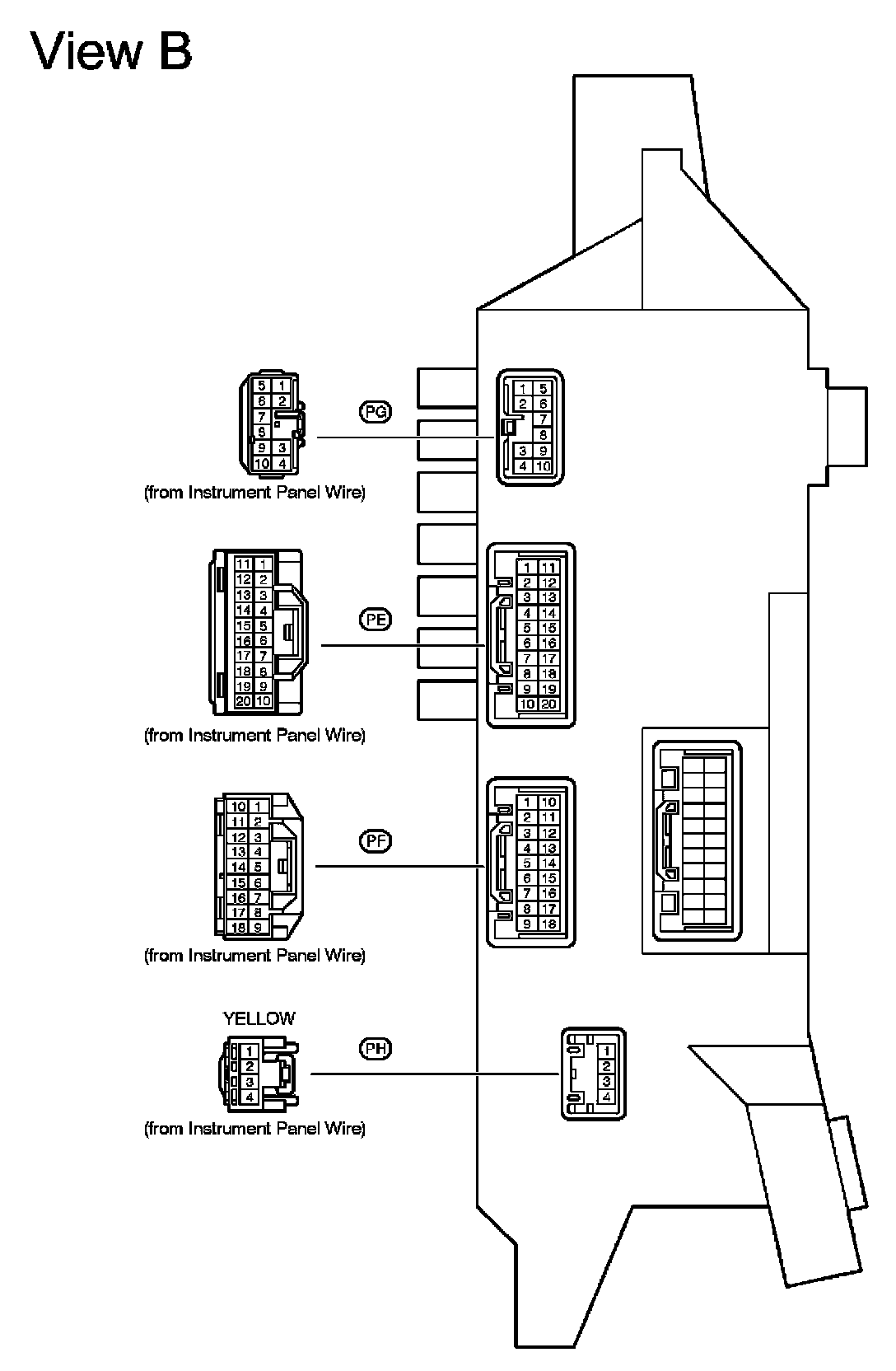

Driver Side J/B - Left Kick Panel (View B):

Driver Side J/B - Left Kick Panel (View C):

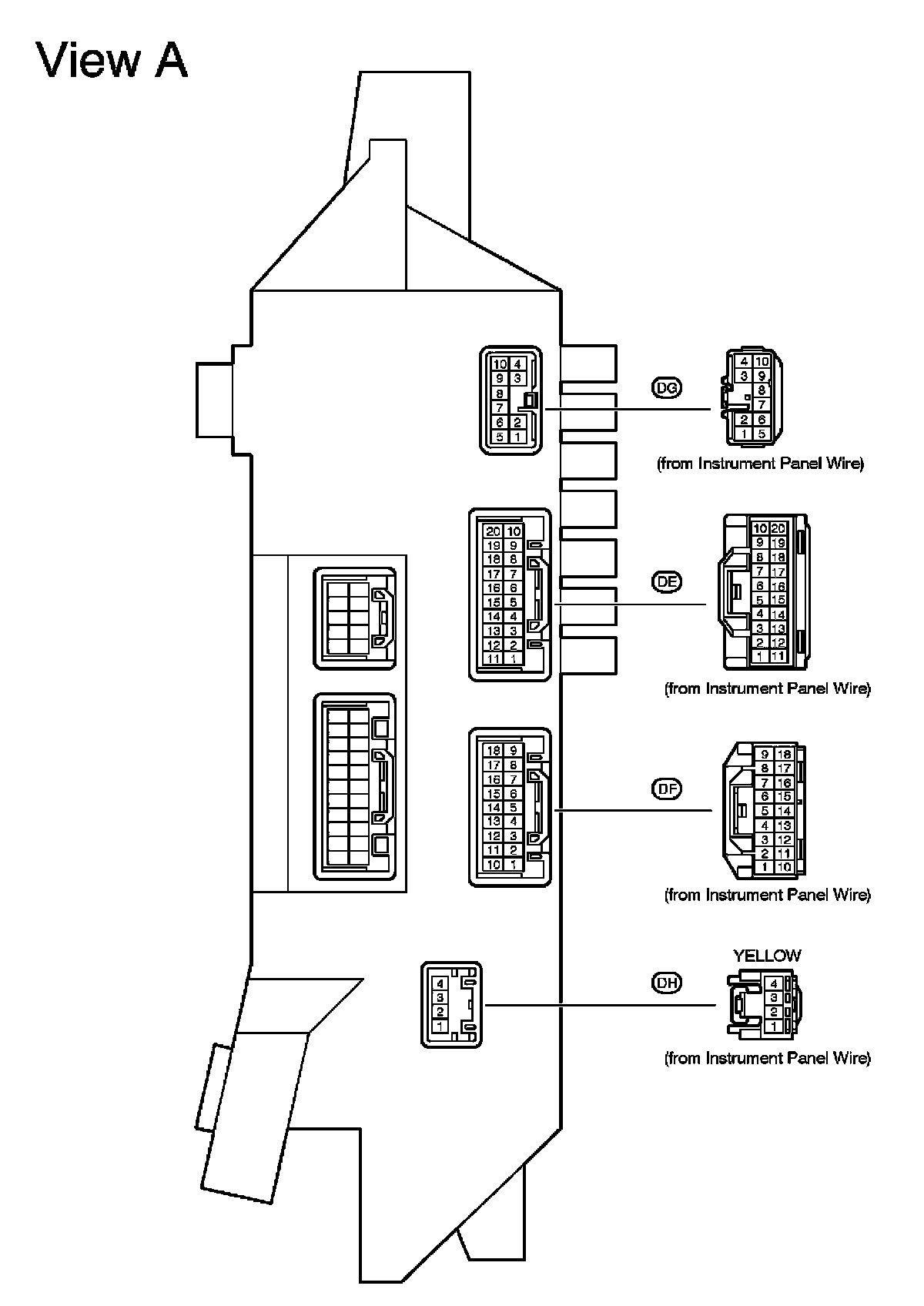

Passenger Side J/B - Right Kick Panel (View A):

Passenger Side J/B - Right Kick Panel (View B):

Passenger Side J/B - Right Kick Panel (View C):

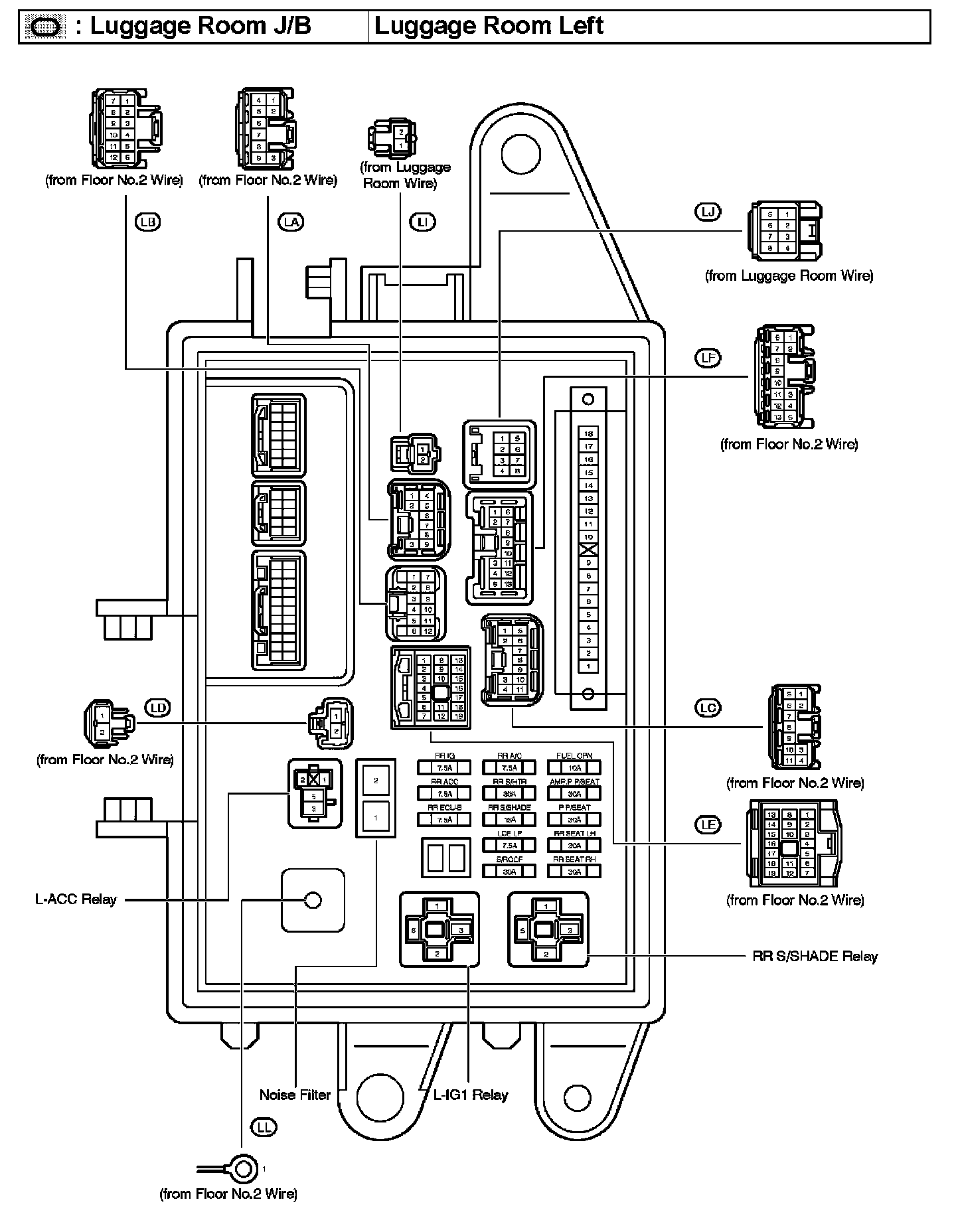

Luggage Room J/B - Luggage Room Left:
