Fuel Lid Lock Control: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• A bolt without a torque specification is shown in the standard bolt chart (see SUSPENSION CONTROL SYSTEM ).

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
   1. Remove the 4 bolts and 4 luggage compartment trim hooks No. 1.
   2. Remove the mat.

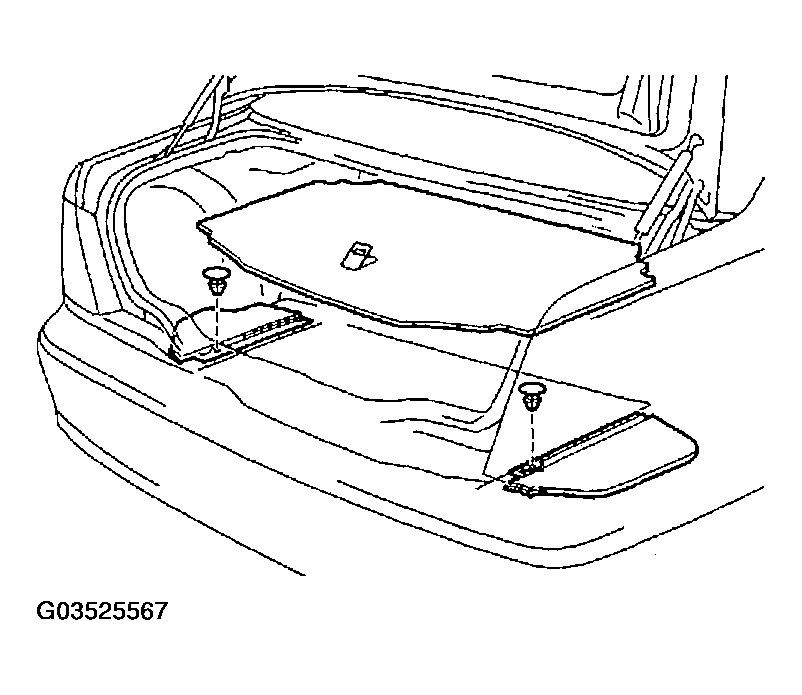

   3. Remove the 2 clips and 2 deck side trim boards.
      Fig 1: Removing 2 Clips And 2 Deck Side Trim Boards

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
   1. w/ Special utility package:

      Remove the 2 clips and cover.

      Fig 2: Removing 2 Clips And Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. w/ Special utility package:

      Using a clip remover, remove the 5 clips.

      Fig 3: Removing 5 Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. w/o Special utility package:

      Using a clip remover, remove the 3 clips.

      Fig 4: Removing Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

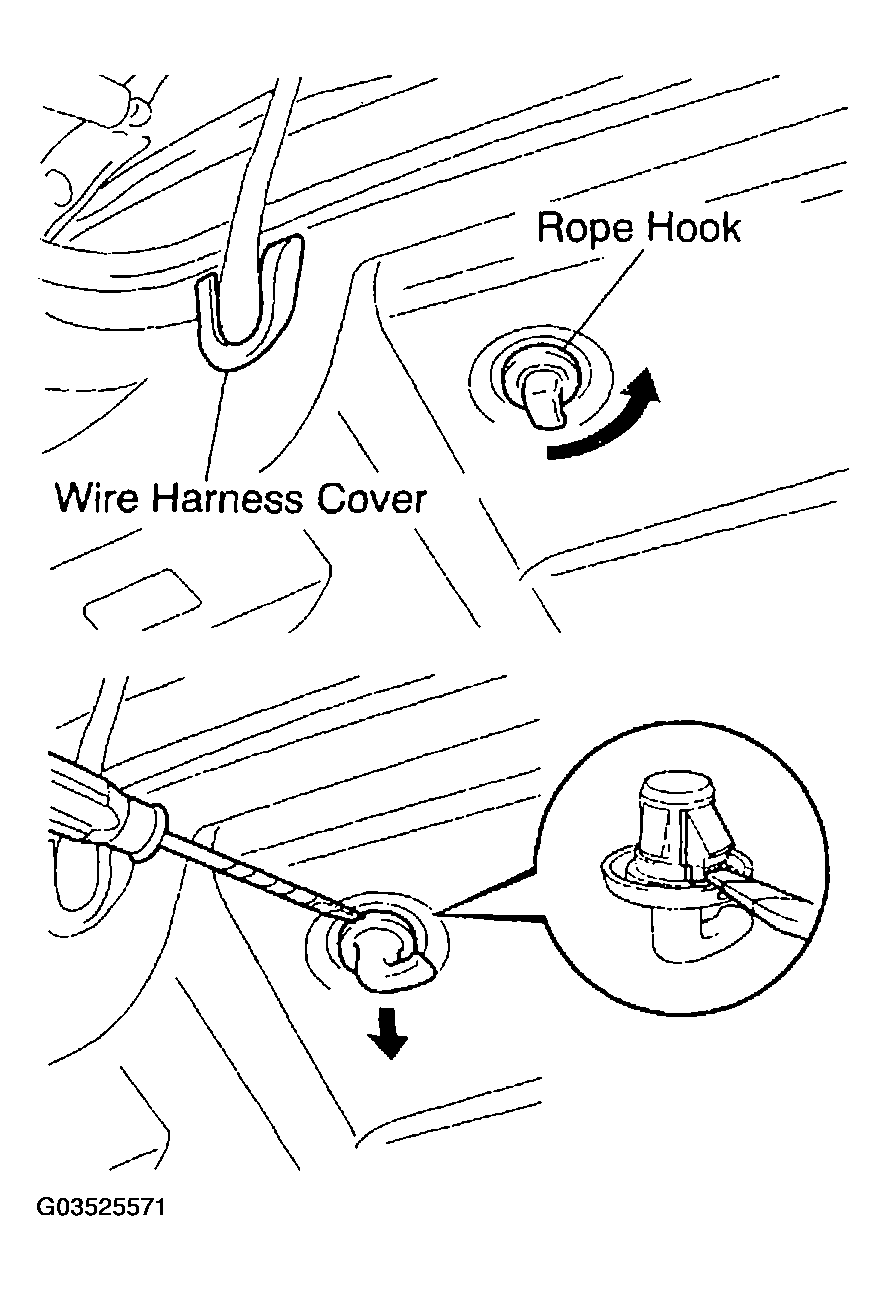

   4. Using a screwdriver, pry out wire harness cover.

      HINT:

      Tape the screwdriver tip before use.

   5. Using a screwdriver, remove the 2 rope hooks.

      HINT:

      Turn the rope hook 90 degrees counterclockwise. Insert a screwdriver (with its tip taped) into the slit in the side of the rope hook. Hold down the claw inside the slit and remove the rope hook as shown in the illustration.

      Fig 5: Removing Rope Hooks

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   6. w/ Special utility package:

      Remove the 2 clips.

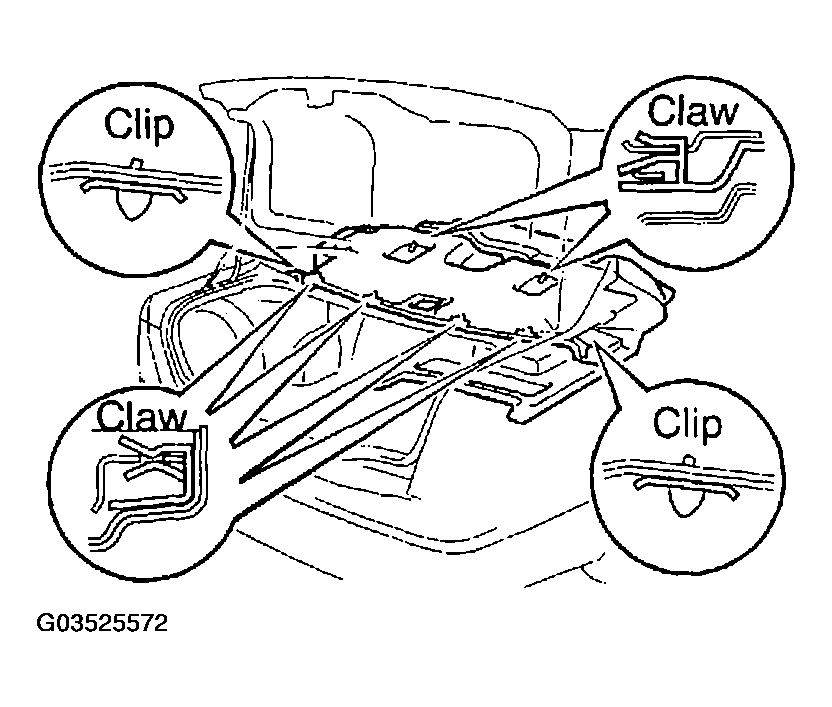

   7. w/ Special utility package:

      Disengage the 6 claws and remove the cover.

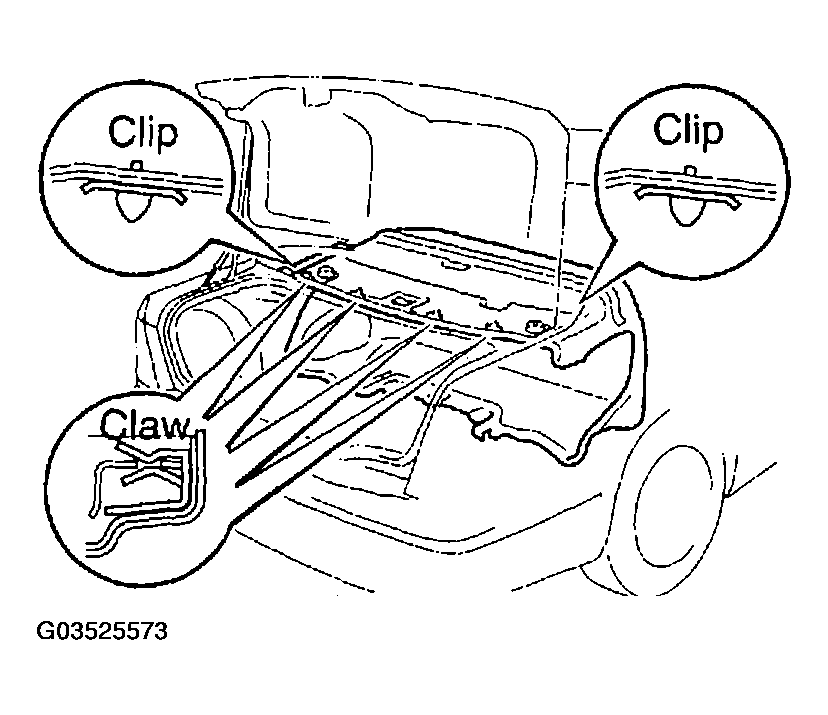

      Fig 6: Removing Clips And Claws Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   8. w/o Special utility package:

      Remove the 2 clips.

   9. w/o Special utility package:

      Disengage the 4 claws and remove the trim.

      Fig 7: Removing Clips And Claws Trim

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

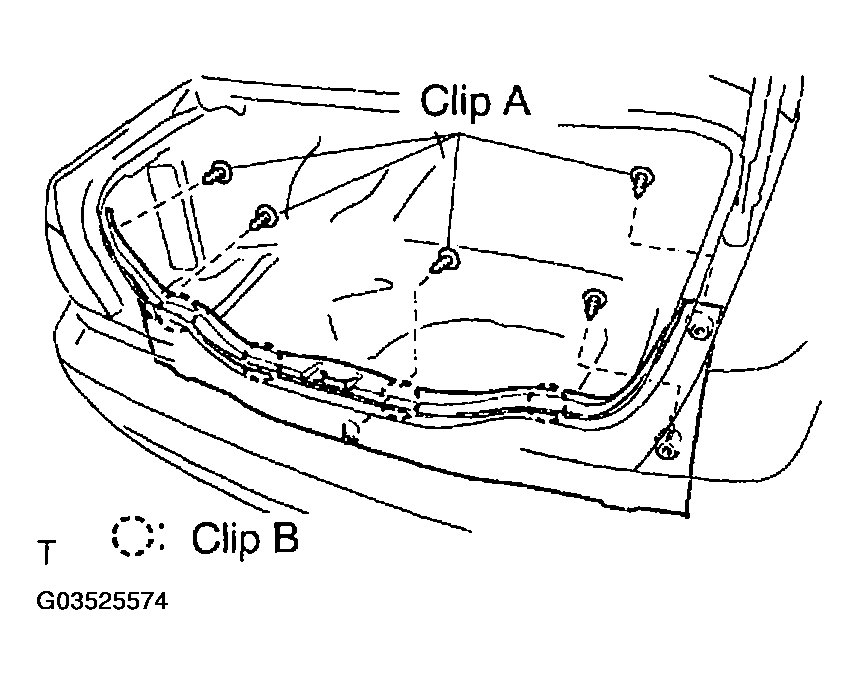

3. REMOVE REAR FLOOR FINISH PLATE
   1. Using a clip remover, remove the 5 clips labeled A.
   2. Using a screwdriver, disengage the 4 clips labeled B and remove the plate.

   HINT:

   Tape the screwdriver tip before use.

   Fig 8: Disengaging 4 Clips Labeled B And Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY LH
   1. Remove the tool bag.
   2. Remove the side trim tool bag cover.
      Fig 9: Removing Side Trim Tool Bag Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

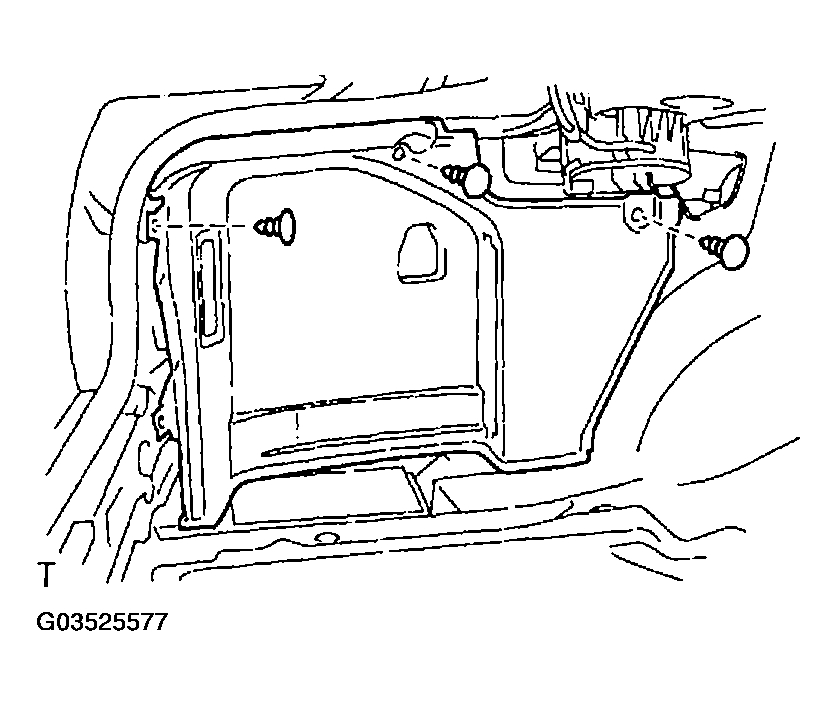

   3. Using a clip remover, remove the 2 clips and trim cover.
      Fig 10: Removing 2 Clips And Trim Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. w/ Special utility package:

      Using a clip remover, remove the 3 clips and trim cover.

      Fig 11: Removing Clips And Trim Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

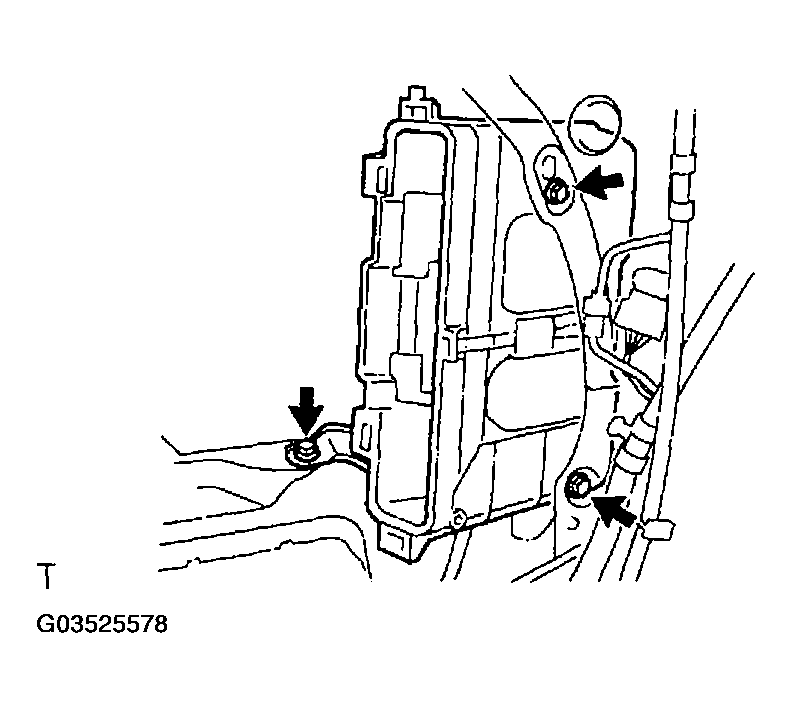

   5. Remove the 3 bolts and tool box.
      Fig 12: Removing 3 Bolts And Tool Box

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE FUEL LID LOCK CONTROL ASSY

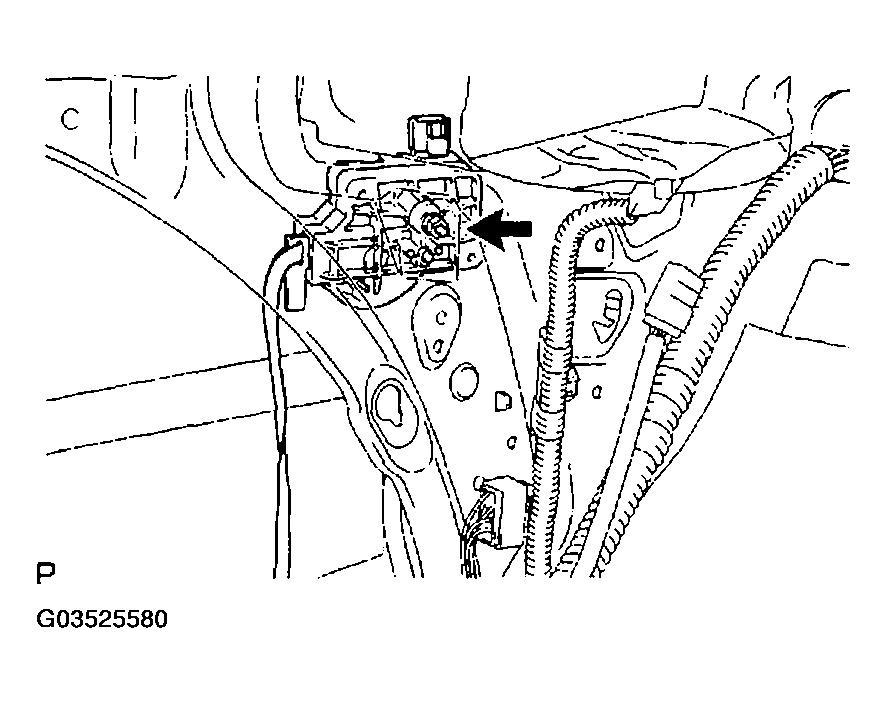

   1. Remove the nut.
      Fig 13: Removing Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disconnect the connector.
   3. Remove the nut and control.
      Fig 14: Removing Nut And Control

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL FUEL LID LOCK CONTROL ASSY
   1. Install the control with the nut.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

   2. Connect the connector.
      Fig 15: Connecting Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

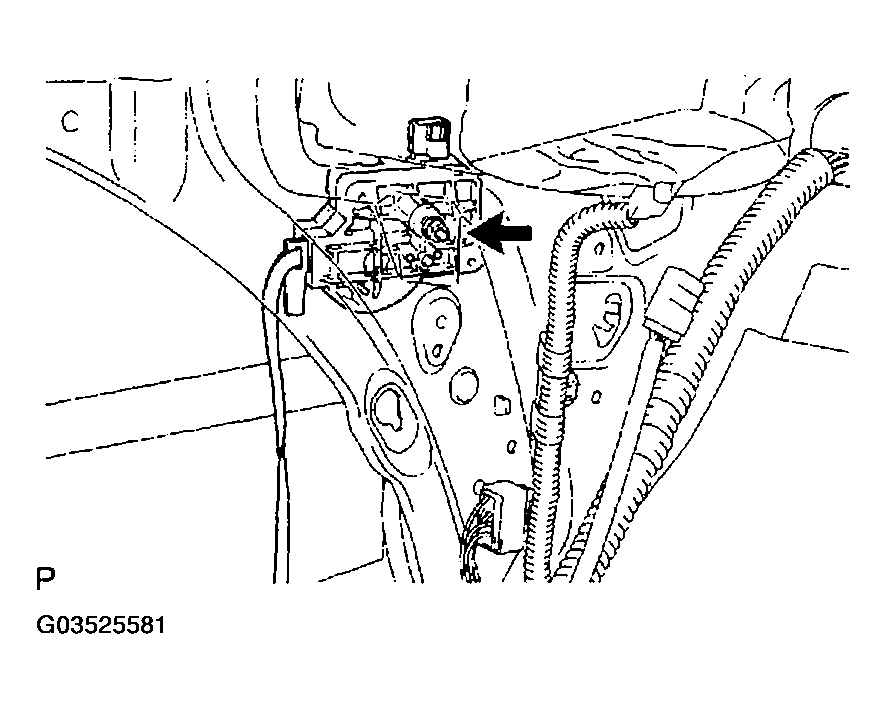

   3. Tighten the nut.

      Torque: 11.5 N.m (117 kgf.cm, 7.5 ft.lbf)

      Fig 16: Tightening Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
