System Diagram

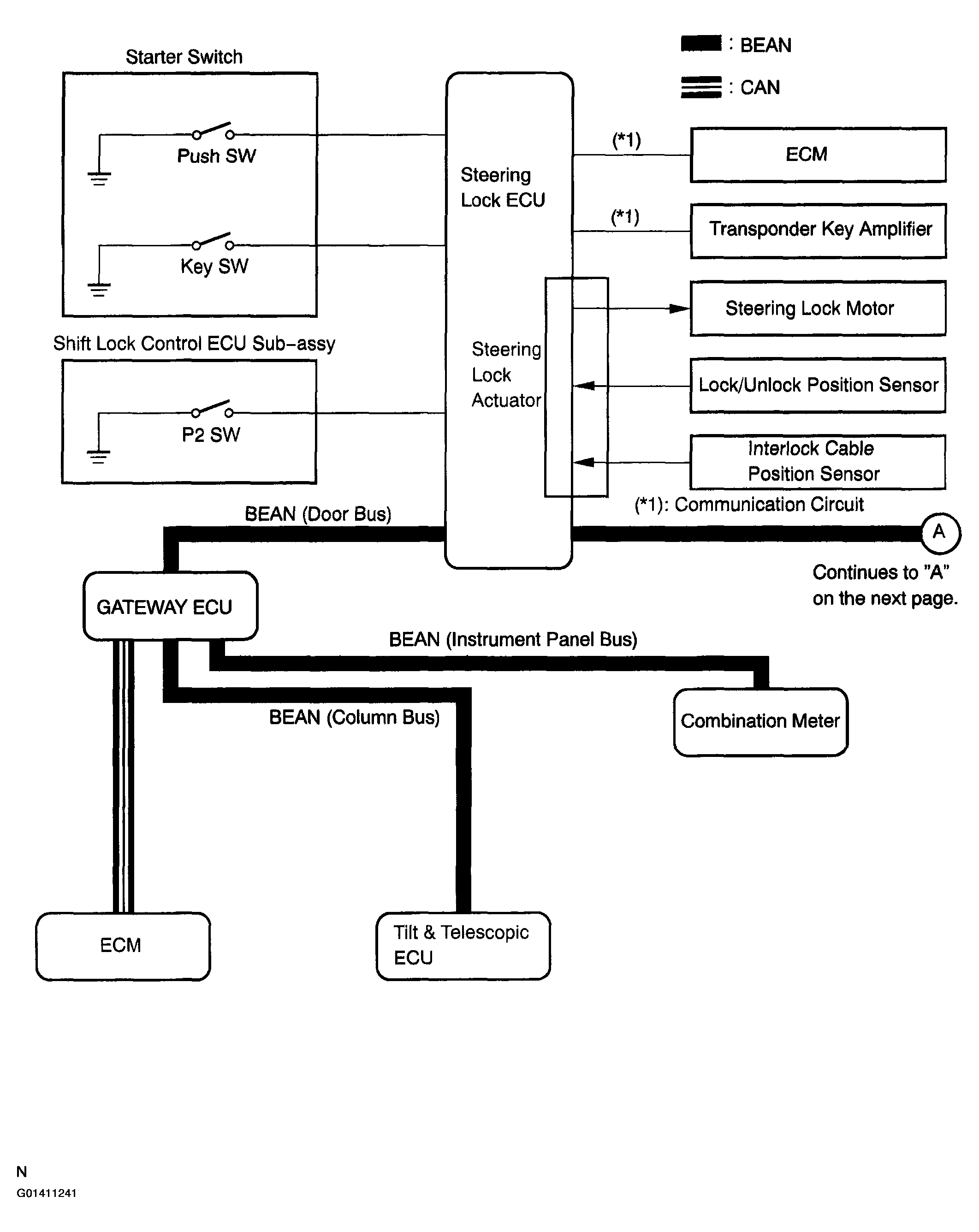

Fig 1: Steering Lock System Wiring Diagram
G01411241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

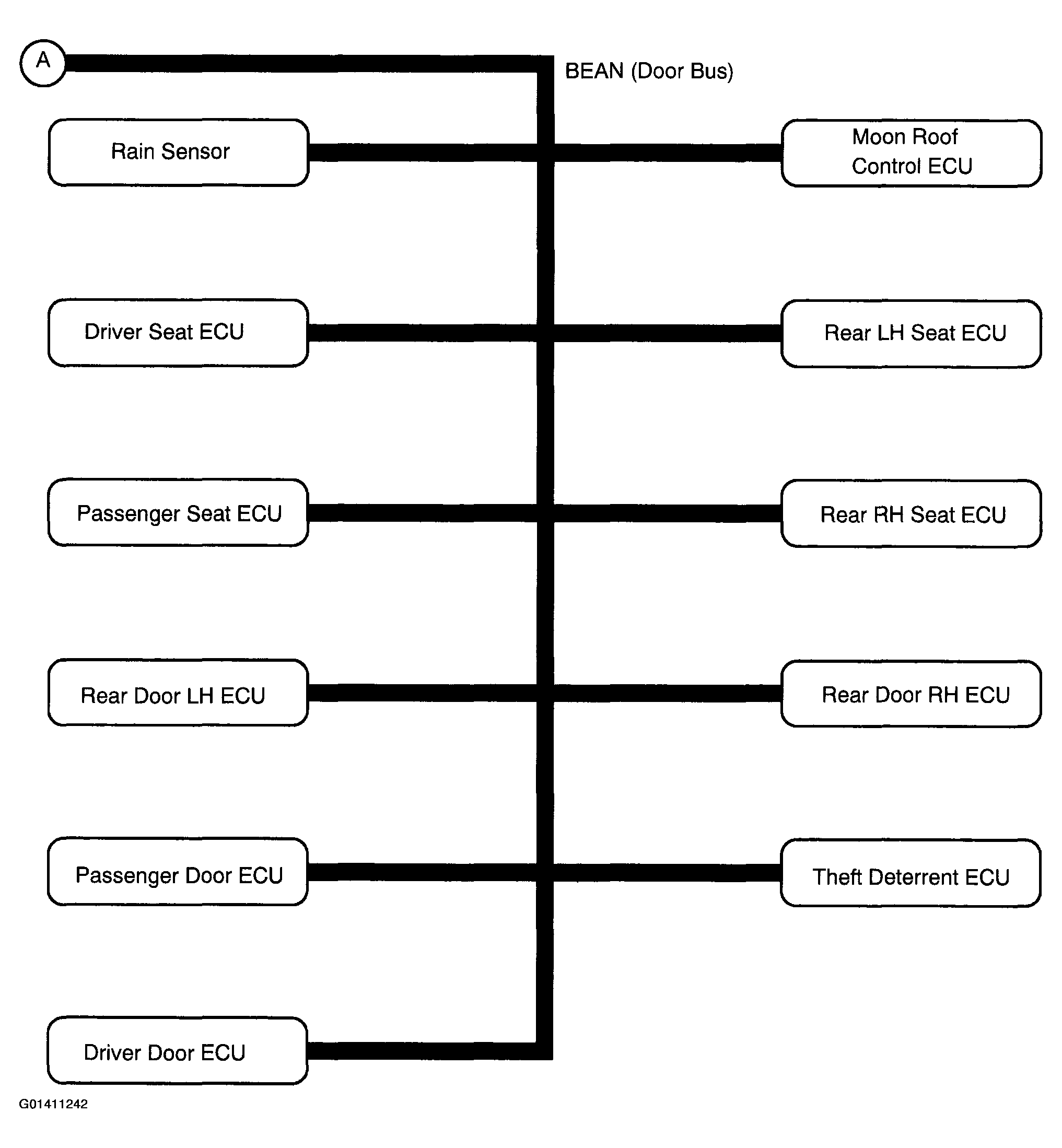

Fig 2: Steering Lock System Wiring Diagram
G01411242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Input and output signals of each ECU.

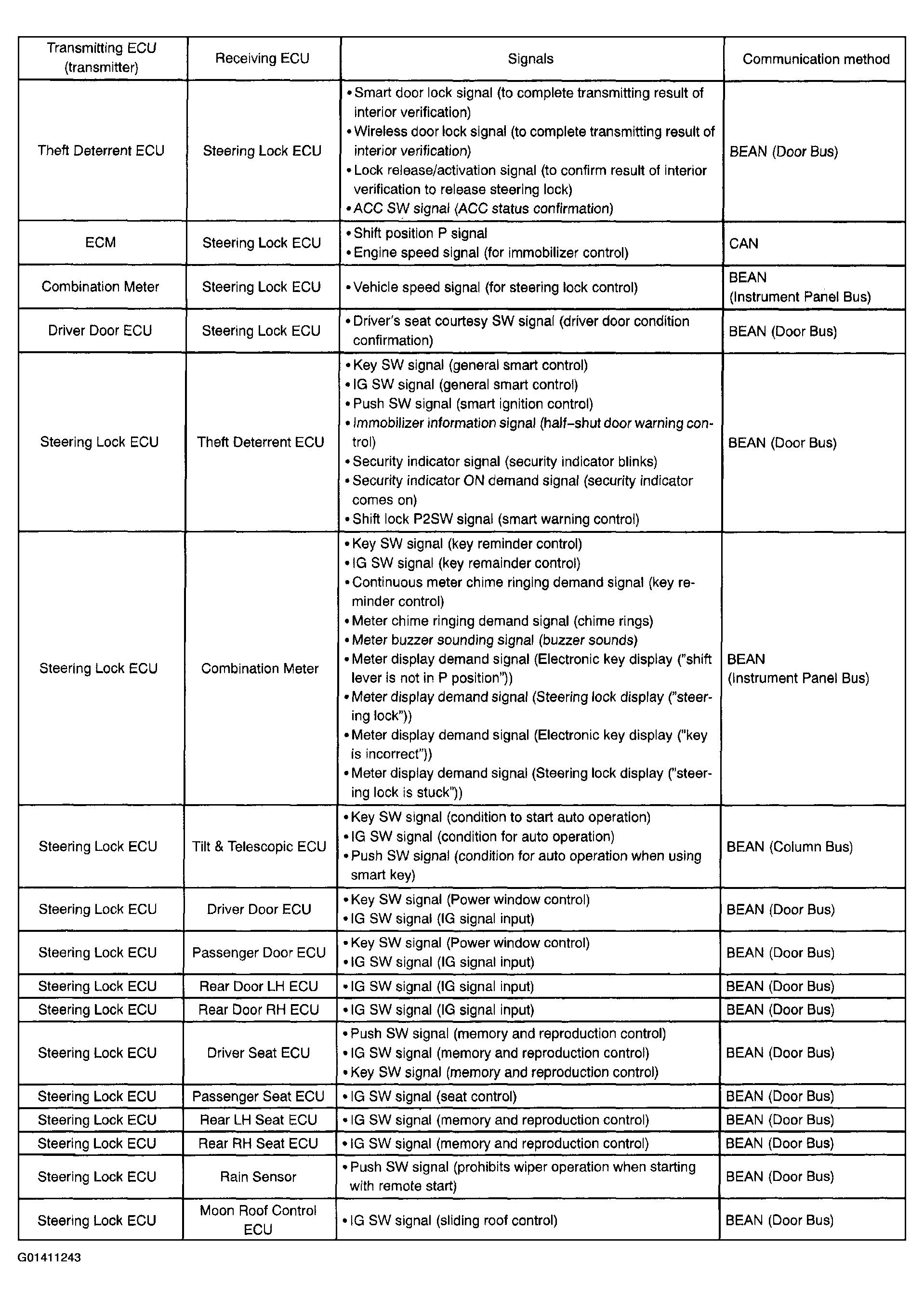

Fig 3: Input And Output Signals ECU Table
G01411243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
