Terminals Of Ecu

STEERING LOCK ECU

Fig 1: Identifying Steering Lock ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

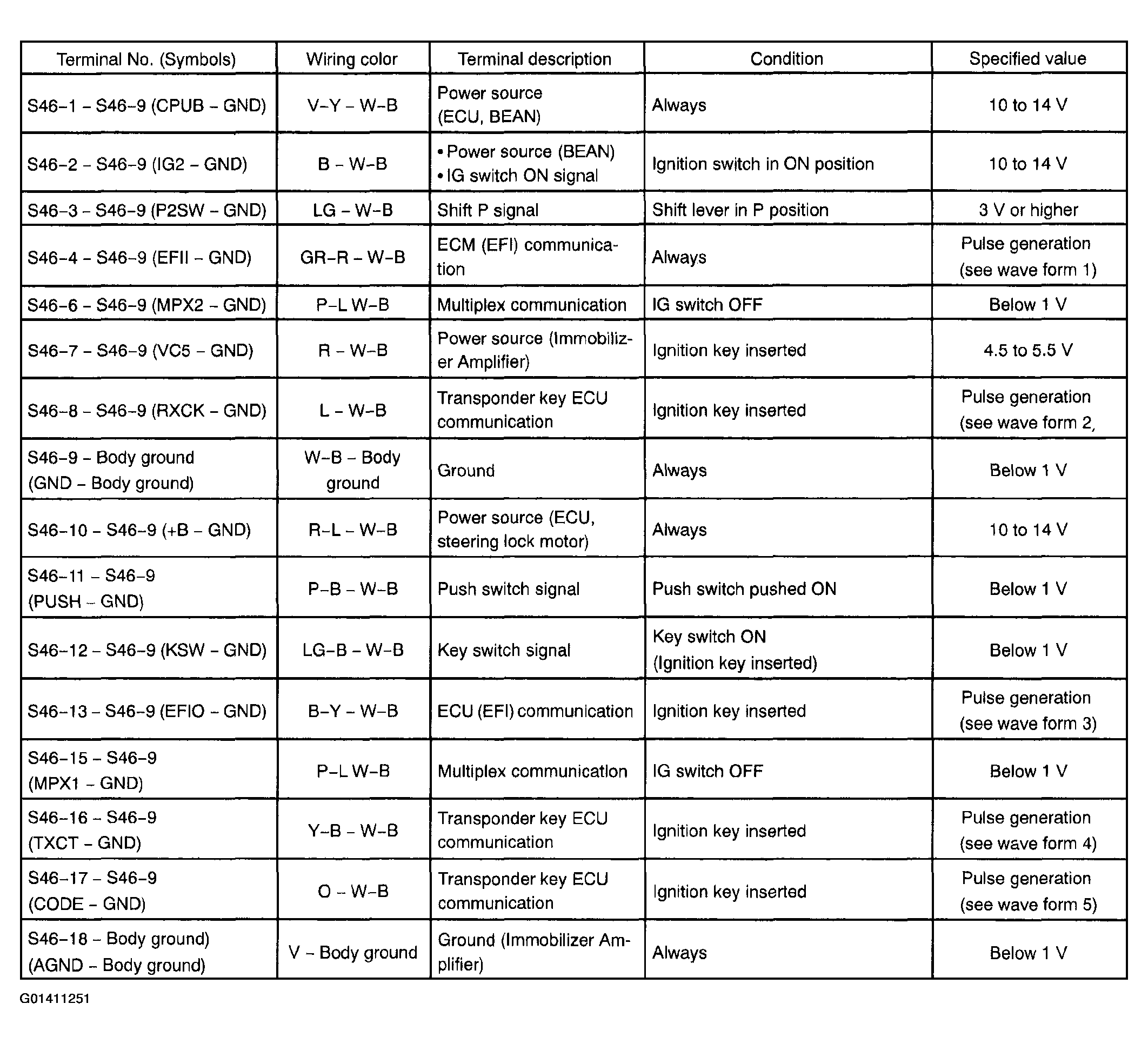

Fig 2: ECU Terminal Description Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Wave form 1

  Fig 3: Identifying Wave Form 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 4: Wave Form 1 Content Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Wave form 2

  Fig 5: Identifying Wave Form 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 6: Wave Form 2 Content Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Wave form 3

  Fig 7: Identifying Wave Form 3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 8: Wave Form 3 Content Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Wave form 4

  Fig 9: Identifying Wave Form 4
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 10: Wave Form 4 Content Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Wave form 5

  Fig 11: Identifying Wave Form 5
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 12: Wave Form 5 Content Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
