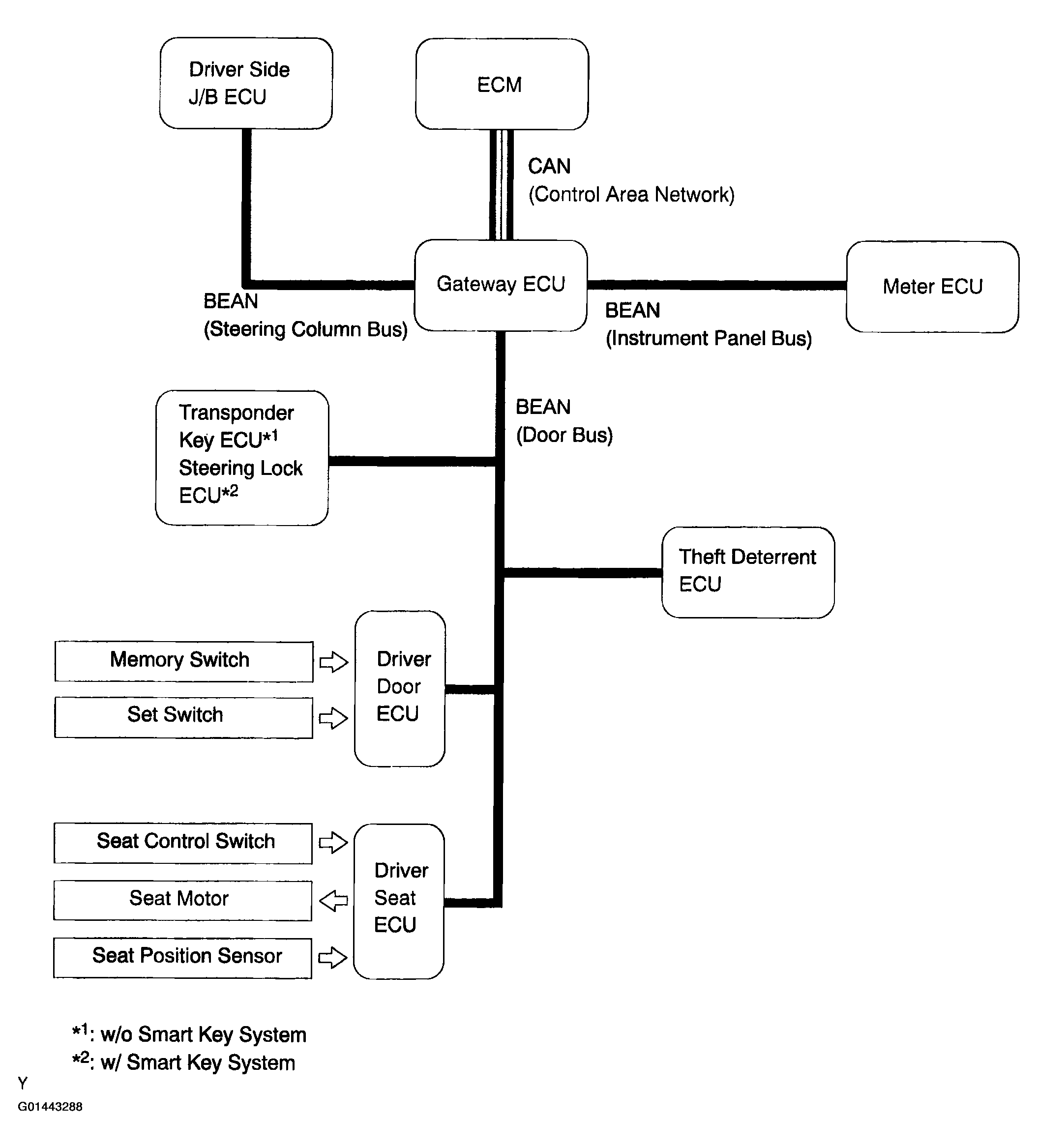

System Diagram

Fig 1: System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

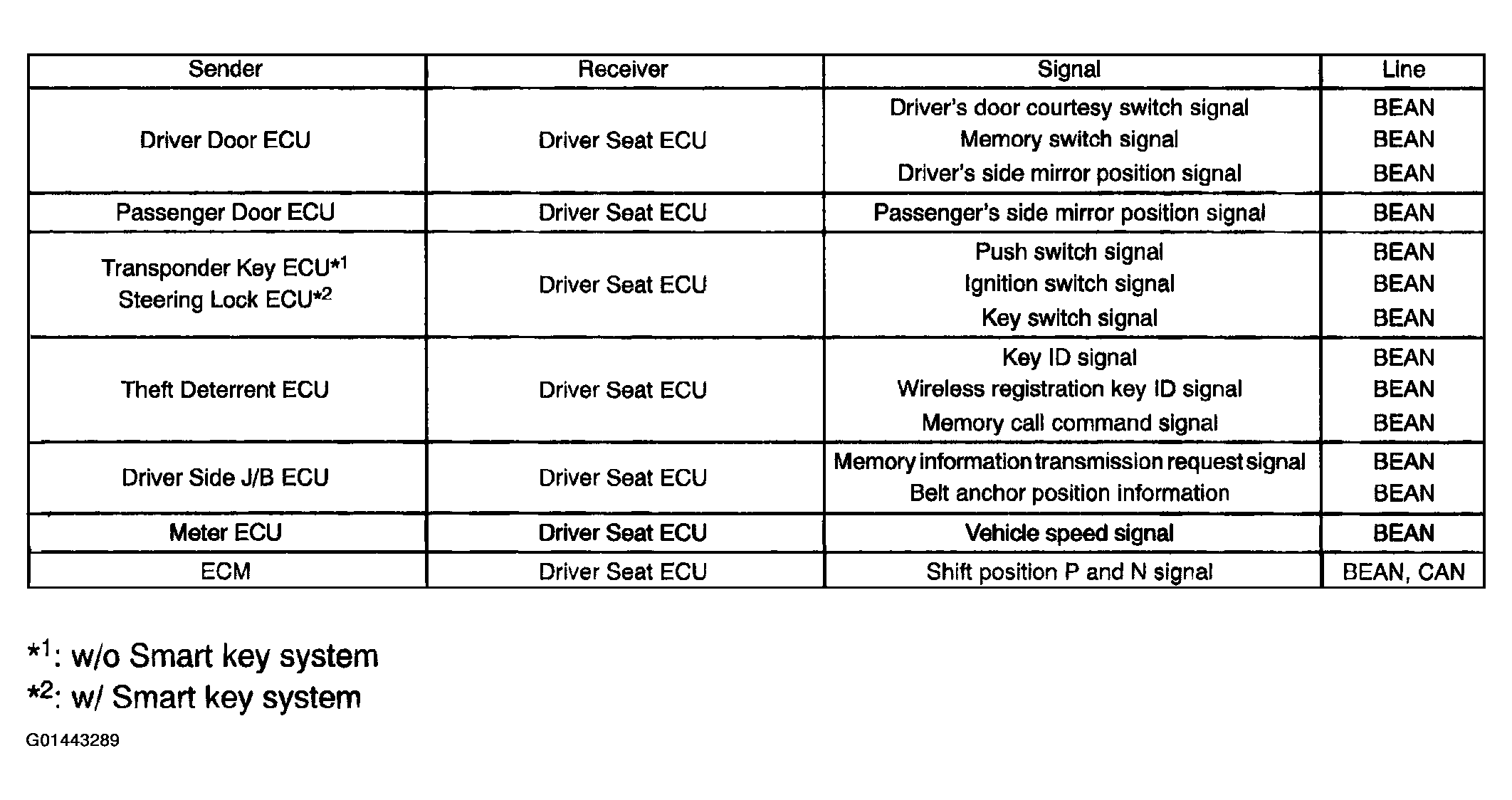

Communication Table

Fig 2: Communication Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

*1: w/o Smart key system

*2: w/ Smart key system
