System Diagram

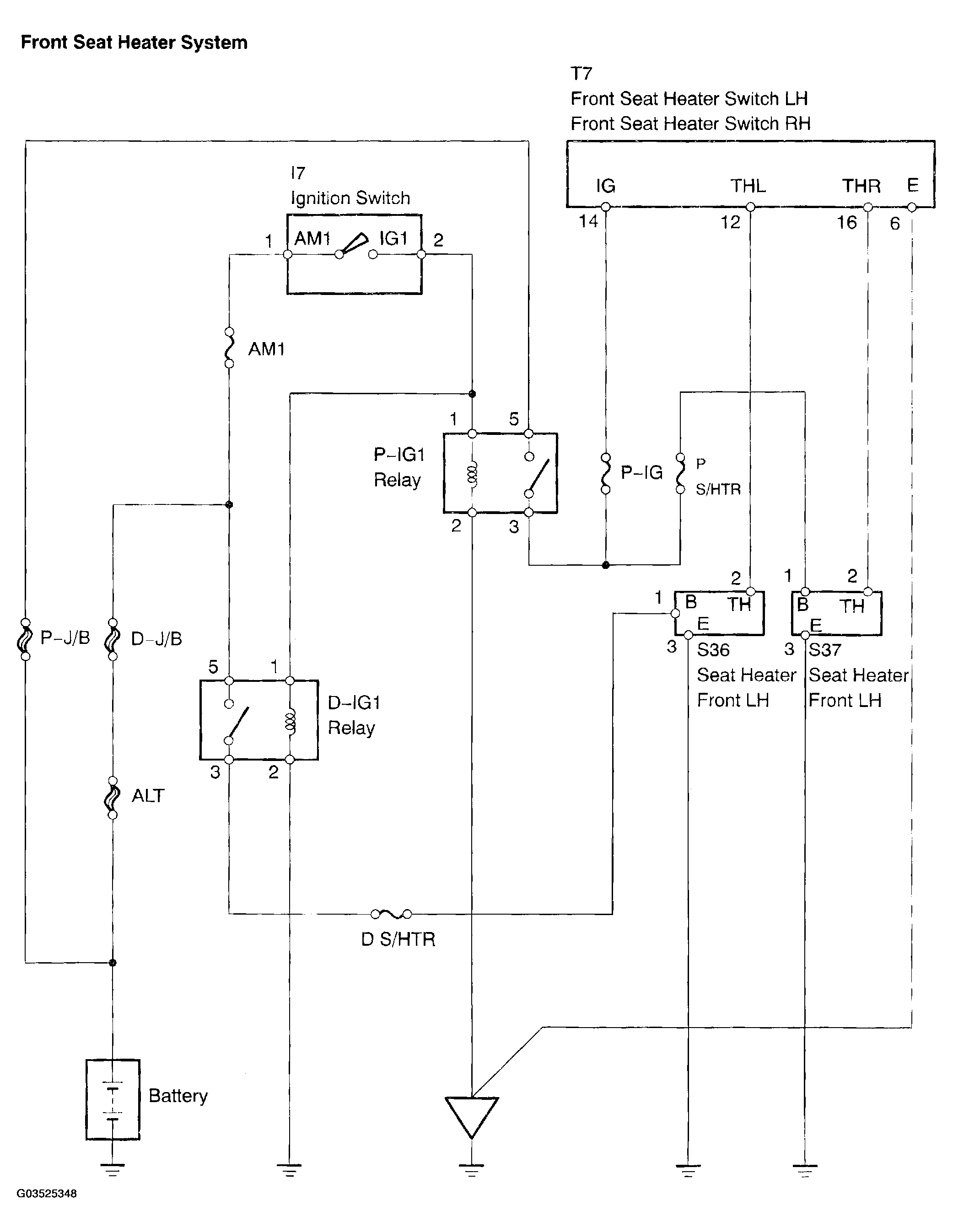

Fig 1: Front Seat Heater System Diagram
G03525348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

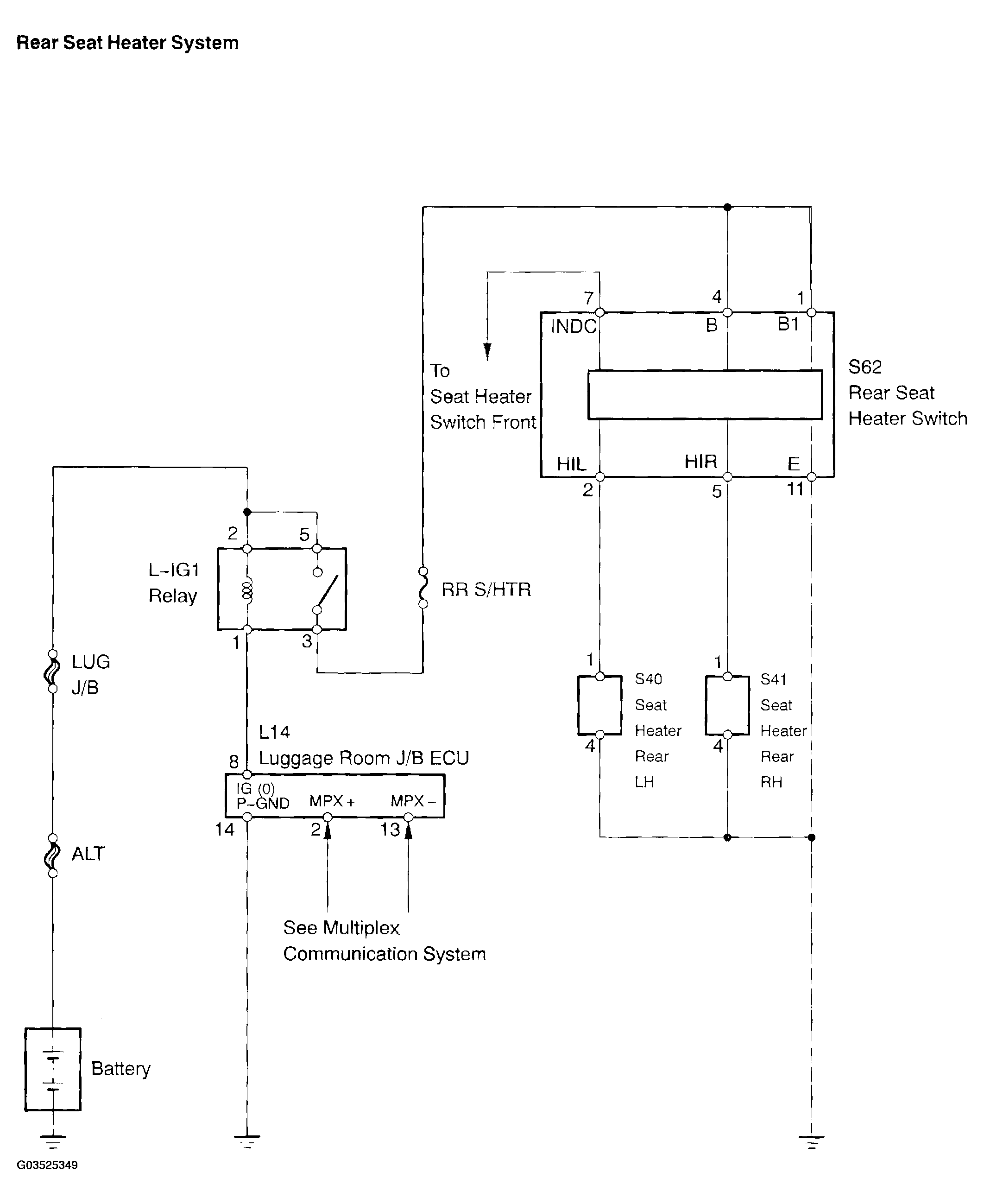

Fig 2: Rear Seat Heater System Diagram
G03525349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
