Restraints Control Systems
>>
Seat Belt System
>>
Seat Belt Tension Reducer System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

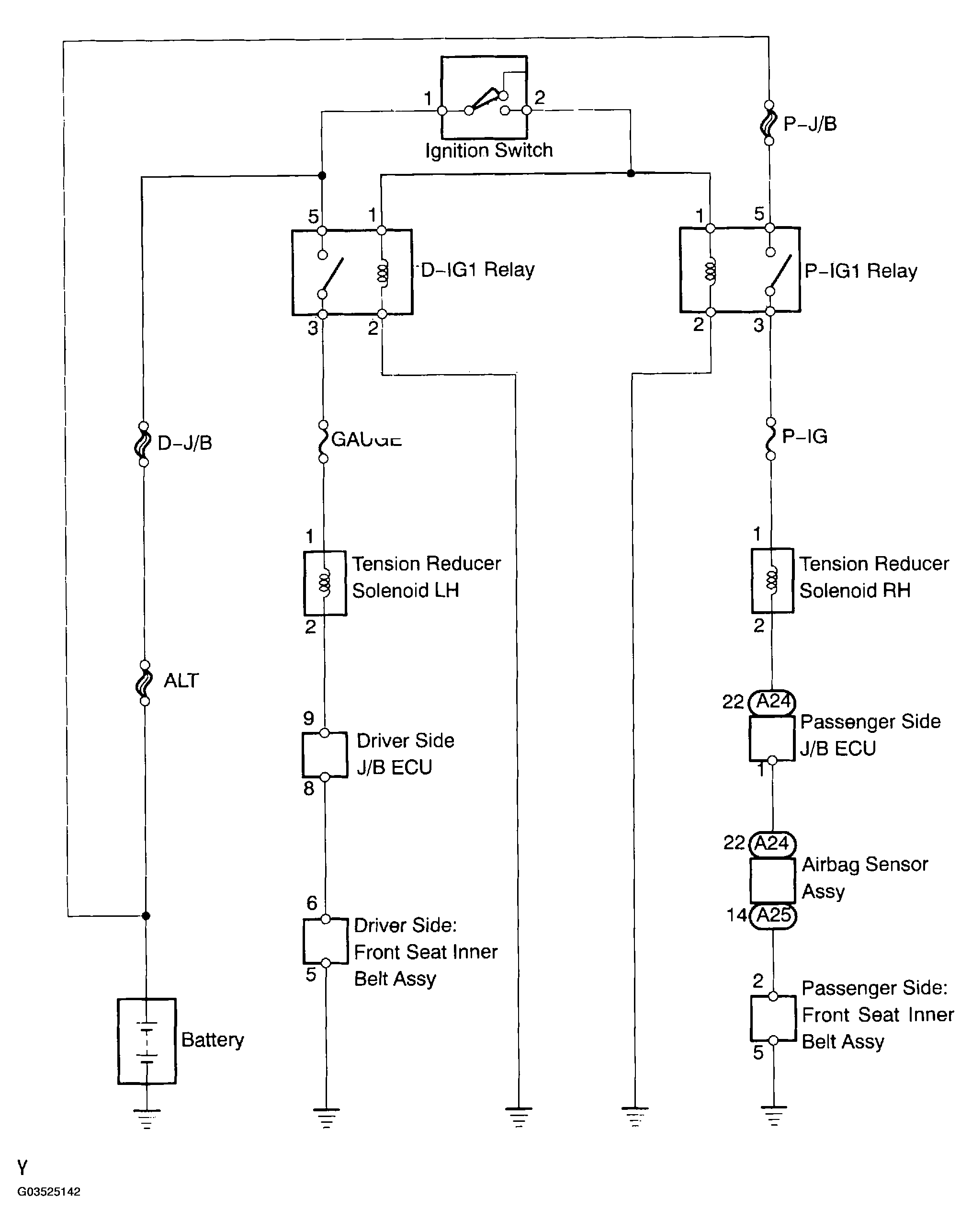

Fig 1: Seat Belt Tension Reducer System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
