Standard Bolt; How To Determine Bolt Strength: Notes

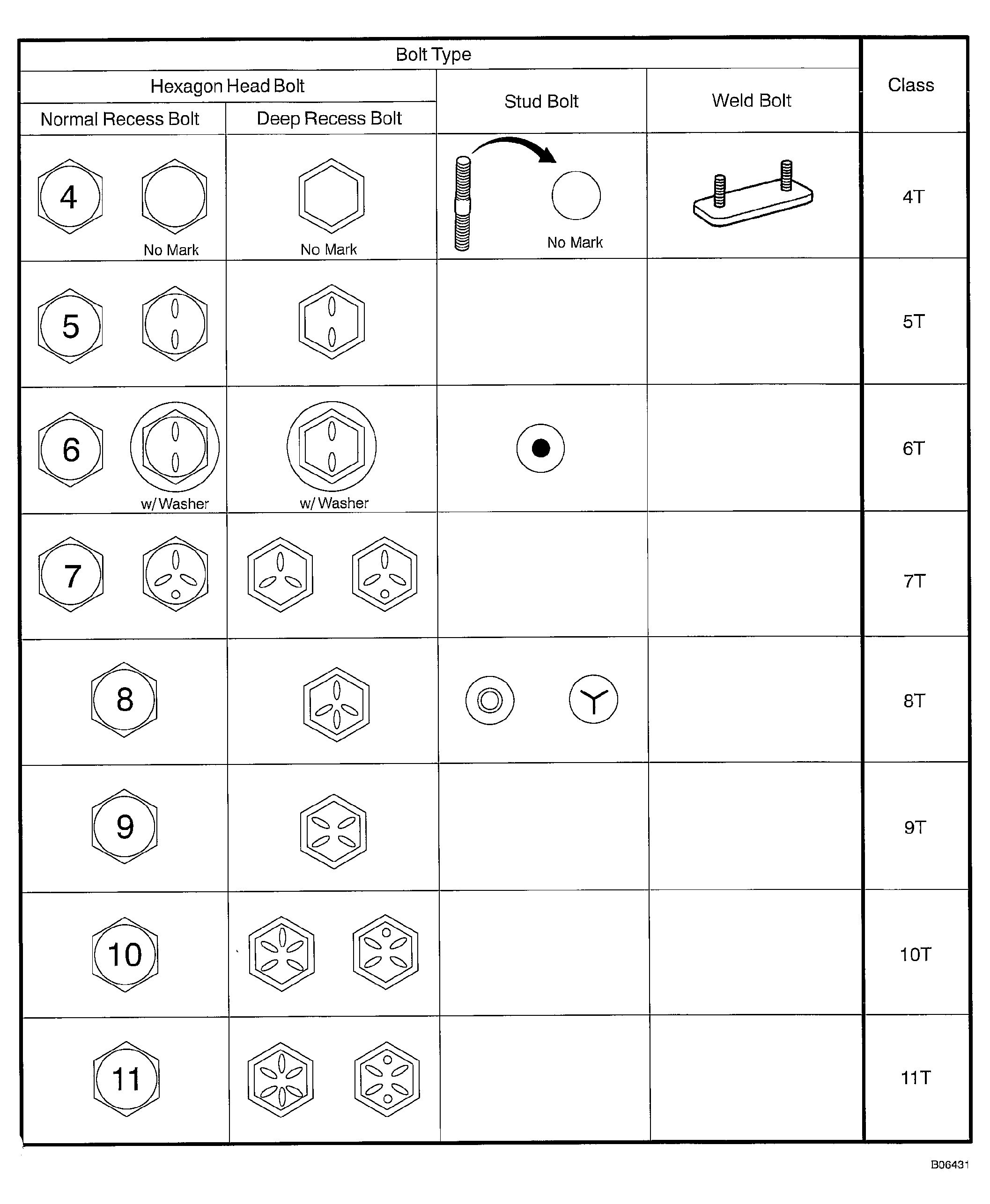

Fig 1: Standard Bolt - How To Determine Bolt Strength
G04072401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
