Fuse Block

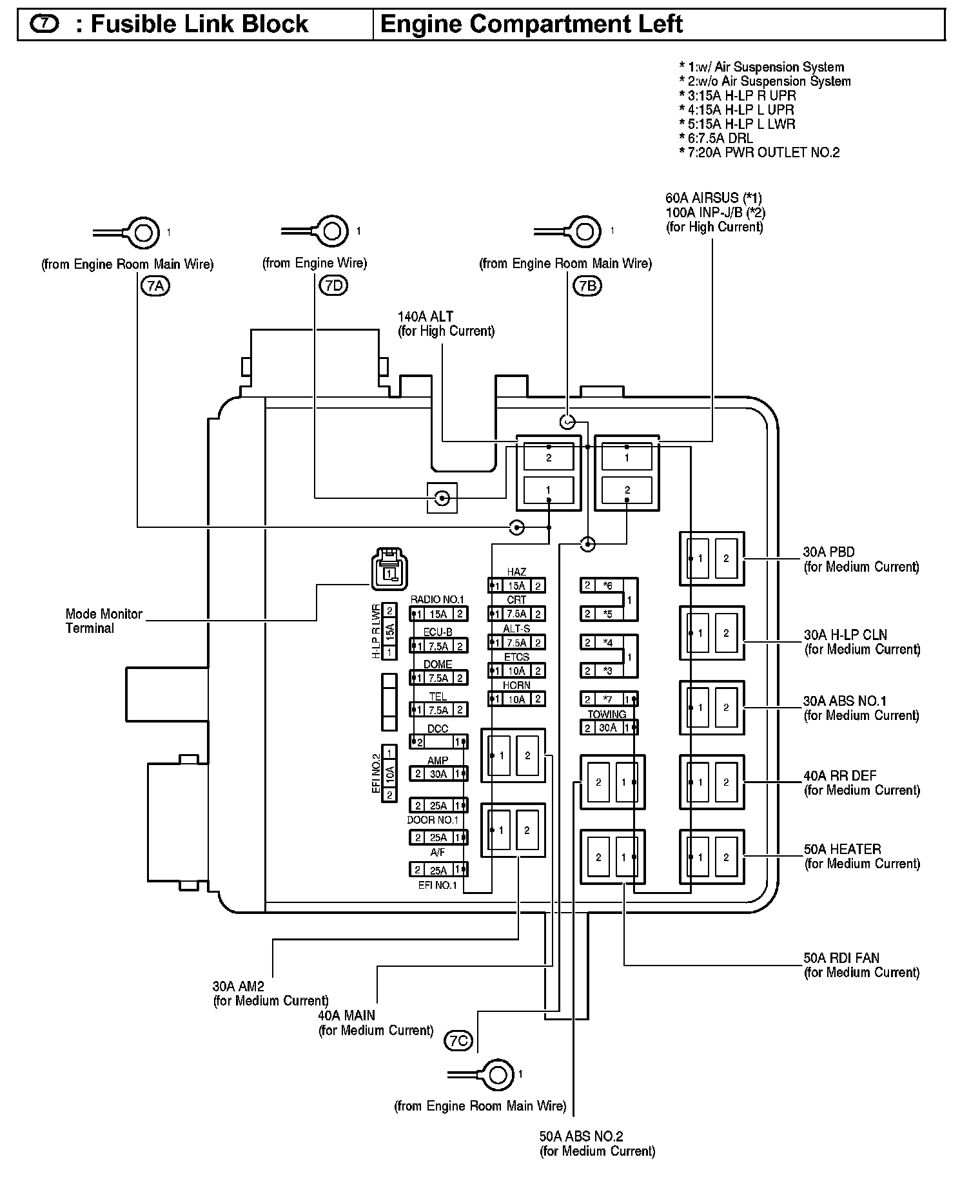

Fusible Link Block - Engine Compartment Left:

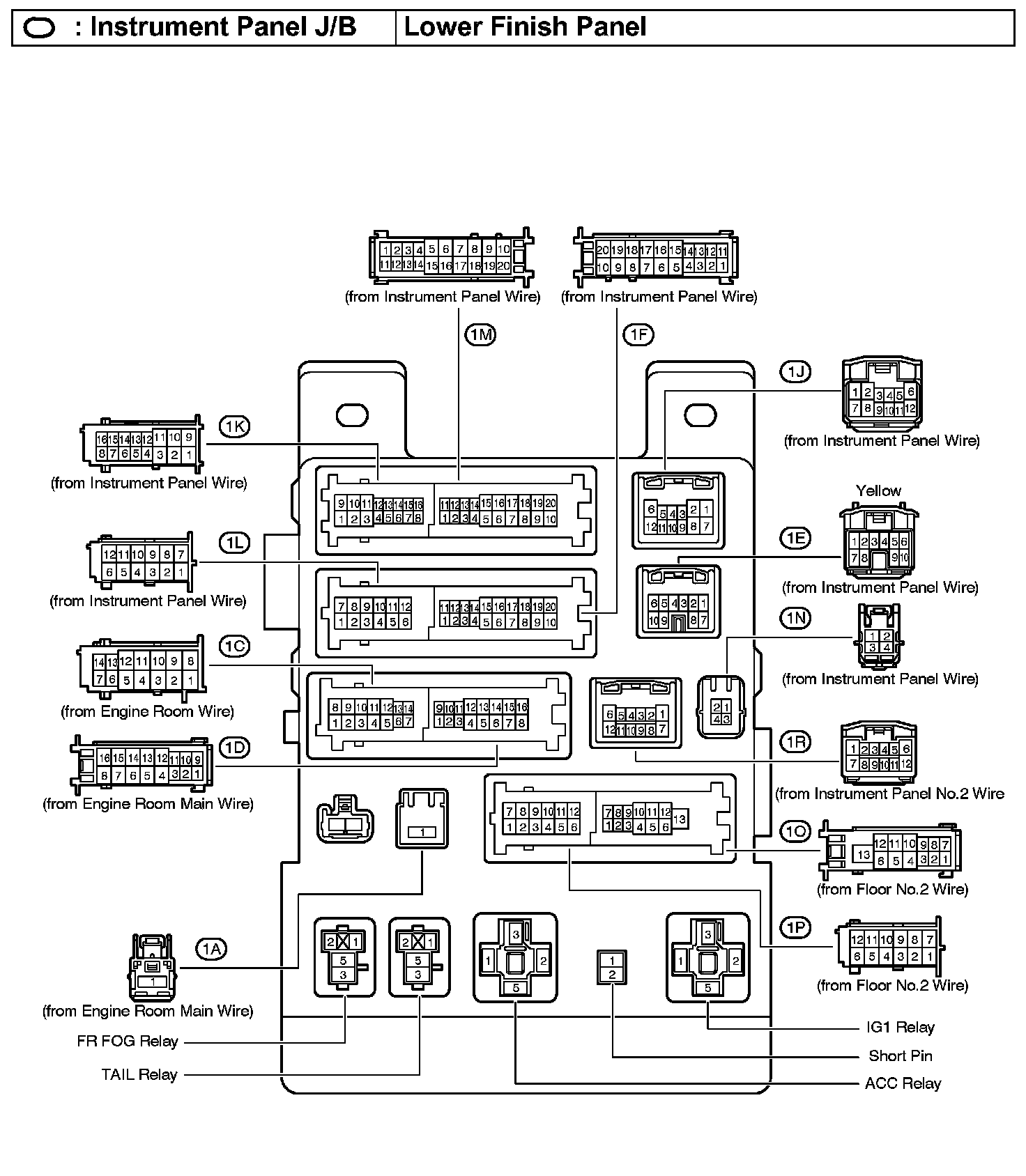

Instrument Panel J/B - Lower Finish Panel:




Instrument Panel J/B - Lower Finish Panel:

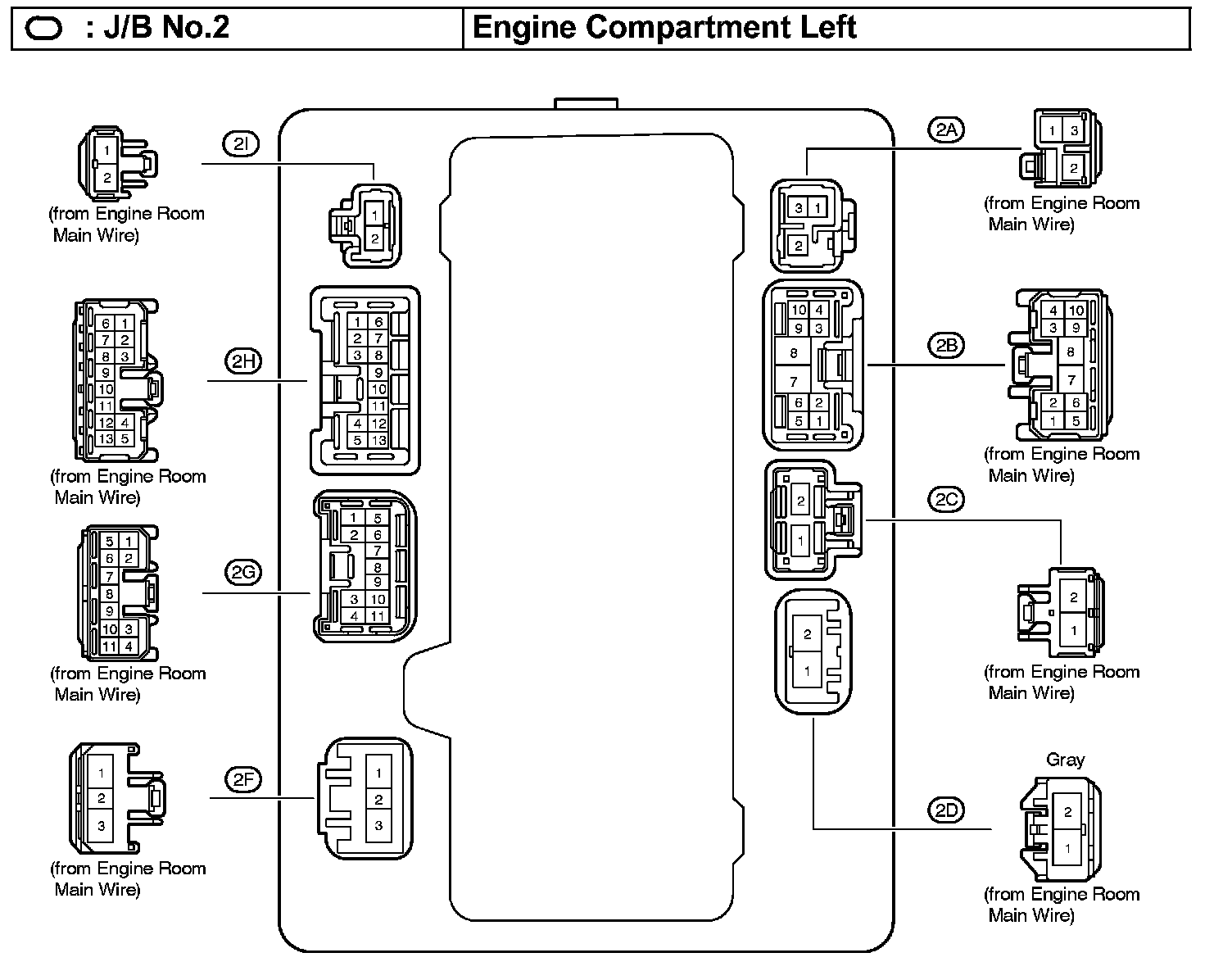

J/B No.2 - Engine Compartment Left:

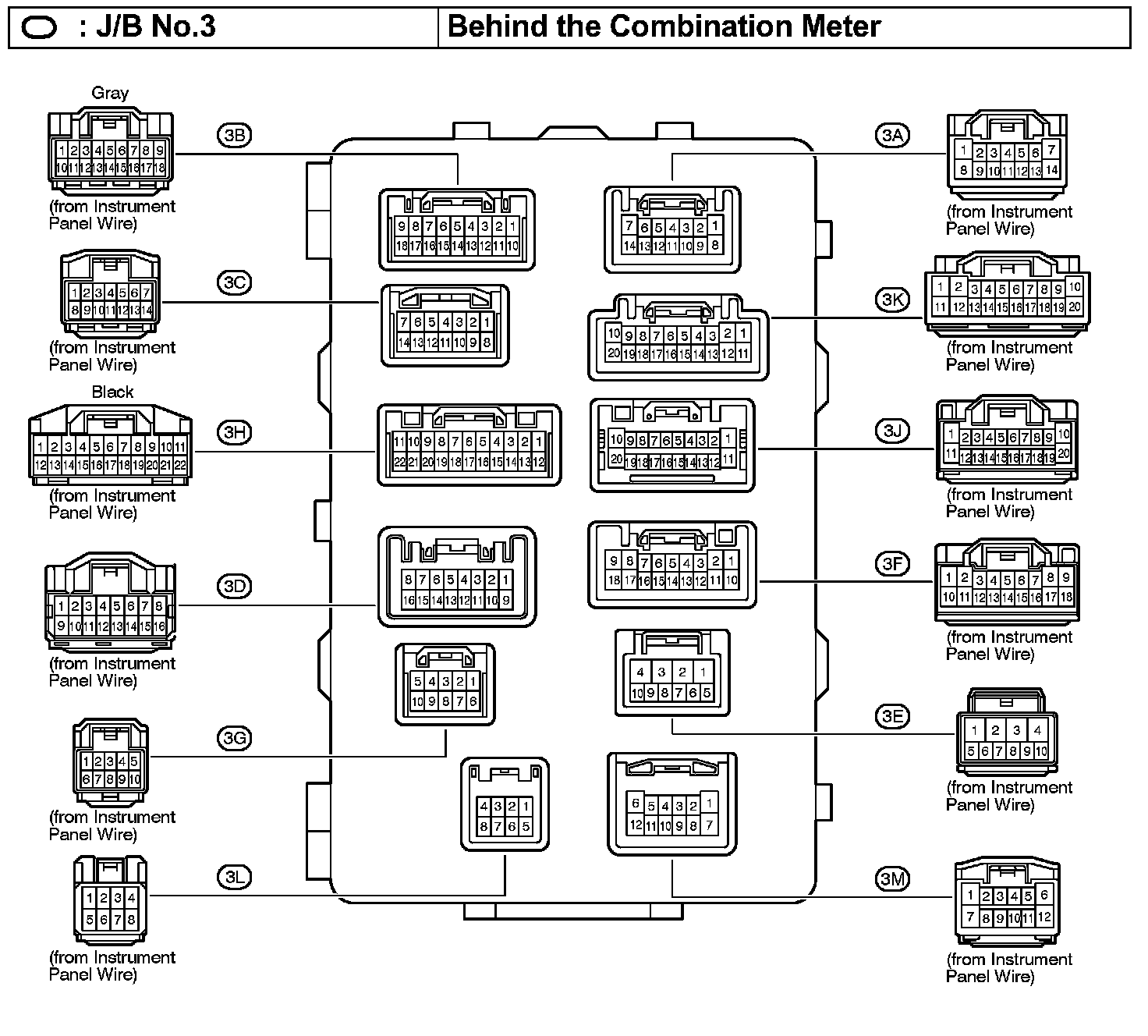

J/B No.3 - Behind The Combination Meter:




J/B No.4 - Behind The Glove Box:




J/B No.4 - Behind The Glove Box:

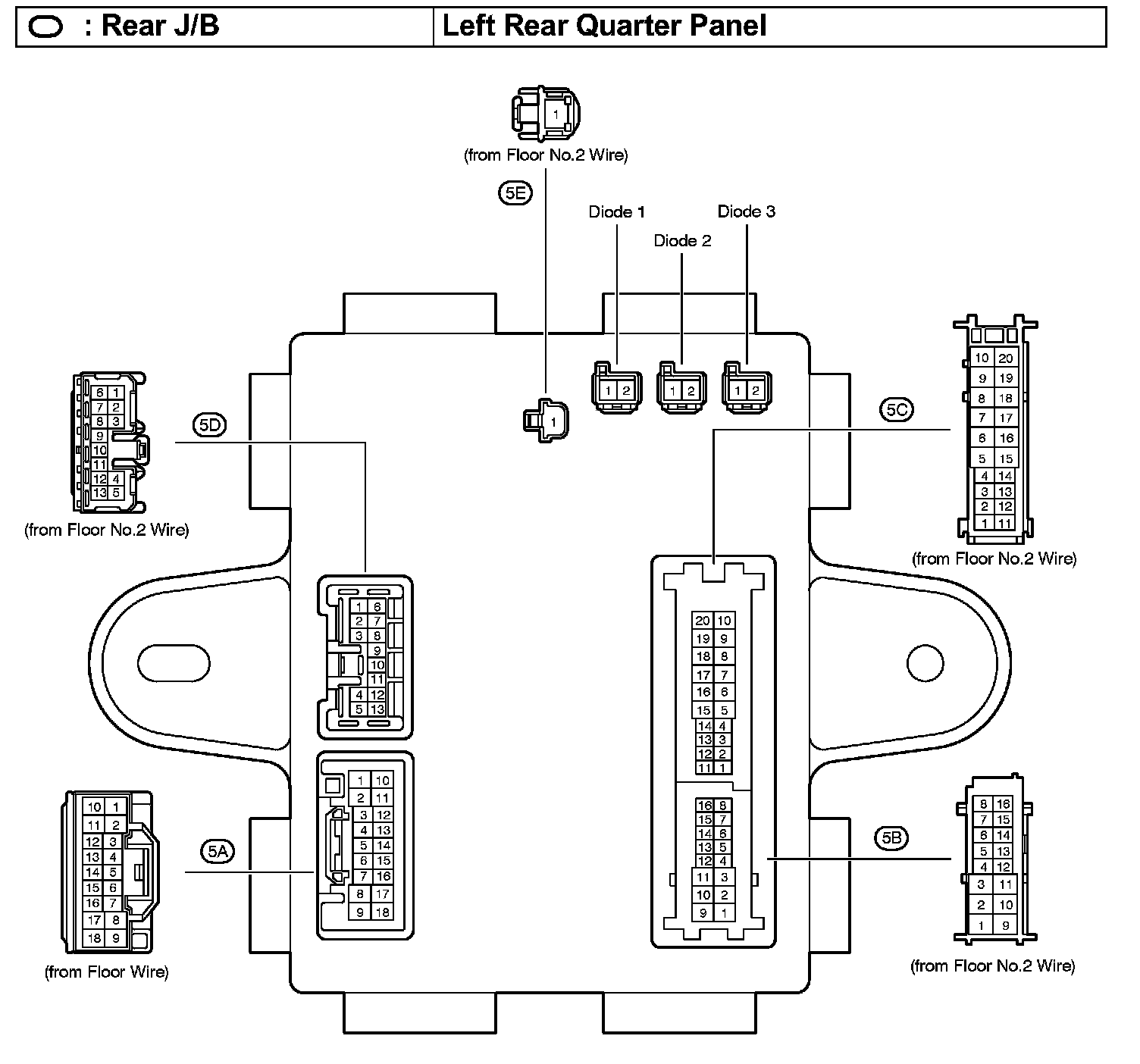

Rear J/B - Left Rear Quarter Panel:
