Manual Up/Down Function Does Not Operate On Passenger Side: Wiring Diagram

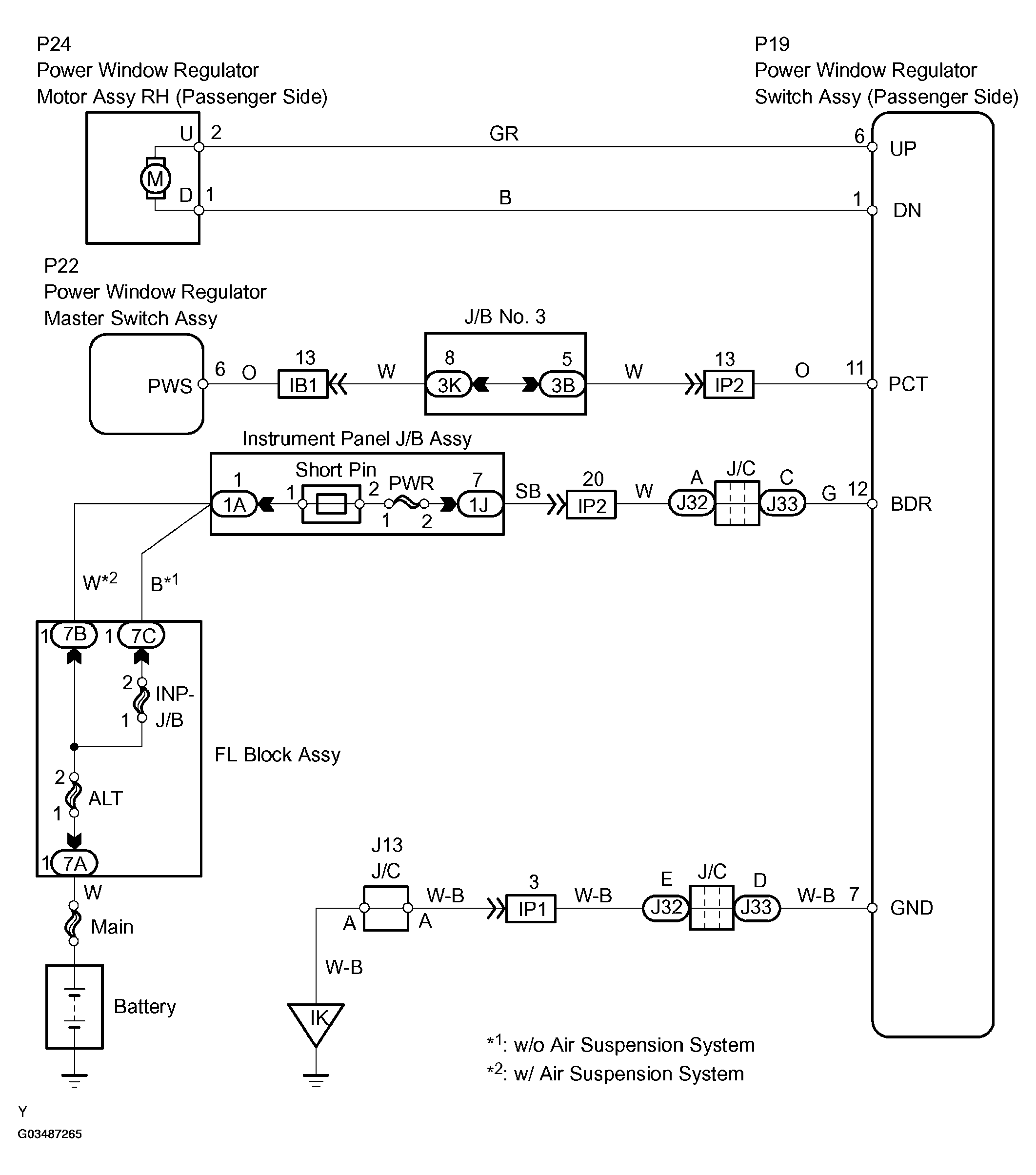

Fig 1: Wiring Diagram - Manual Up/Down Function Not Operate On Passenger Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
