Inspection Procedure

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HARNESS AND CONNECTOR (ECM - GENERATOR ASSY)
    1. Disconnect the G2 connector of generator assy and the E7 connector of ECM.
    2. Measure the resistance according to the value (s) in the table below.

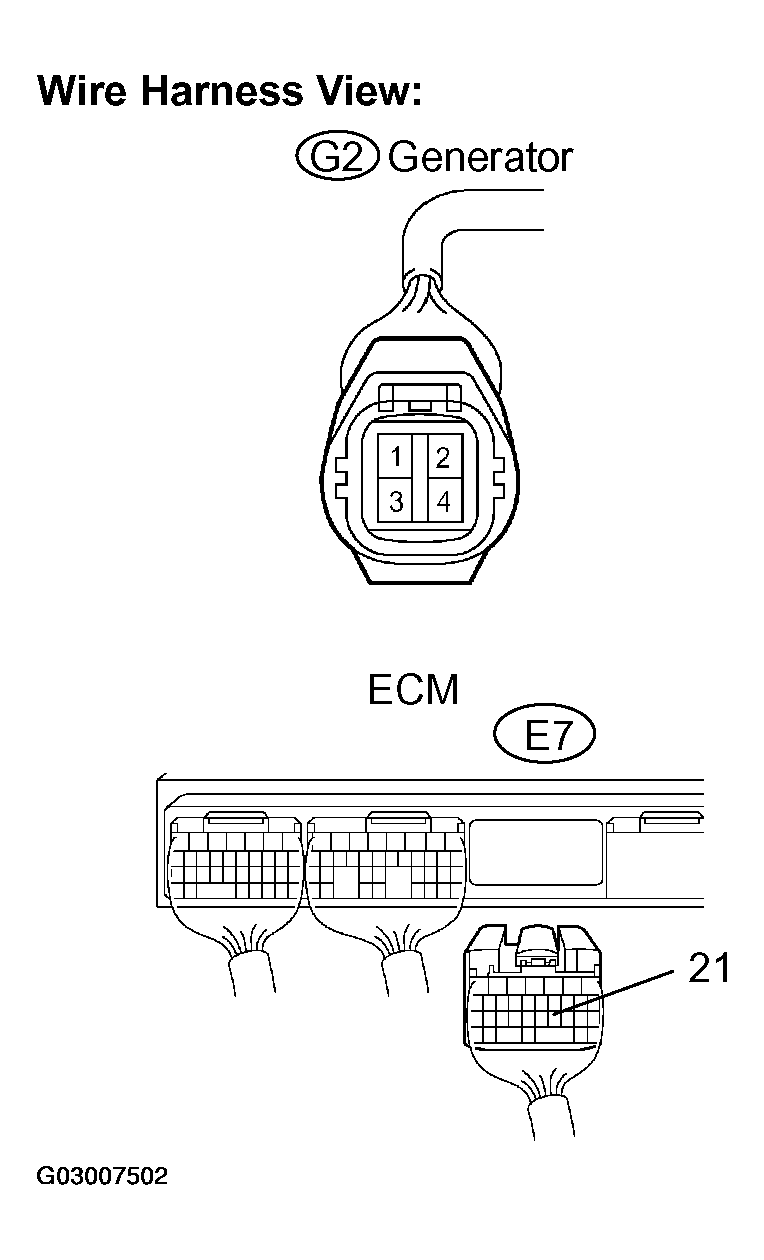

      Fig 1: Disconnecting G2 Connector Of Generator Assy And E7 Connector Of ECM
      G03007502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      TESTER SPECIFIED CONDITION CHART

      Tester connection Condition Specified condition
      L (G2-4) - RL (E7-21) Always Below 1 Ω
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: Go to next step.
  2. INSPECT GENERATOR ASSY
    1. Inspect generator assy (See  GENERATOR ASSY (3MZ-FE)  ).
    1. NG: CHECK AND REPLACE GENERATOR ASSY
    2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
