Multi-Display ASSY: Replacement

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT BATTERY NEGATIVE TERMINAL (See  SUPPLEMENTAL RESTRAINT SYSTEM  )
  2. REMOVE SHIFT LEVER KNOB SUB-ASSY (See  OVERHAUL  )
  3. REMOVE CONSOLE PANEL UPPER FRONT (See  REPLACEMENT  )
  4. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See  REPLACEMENT  )
  5. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET (See  RADIO RECEIVER ASSY  )
  6. REMOVE MULTI-DISPLAY ASSY
    1. Remove the 2 bolts, and disengage the 4 clips.
    2. Disconnect the connector.
    3. Remove the multi-display assy.

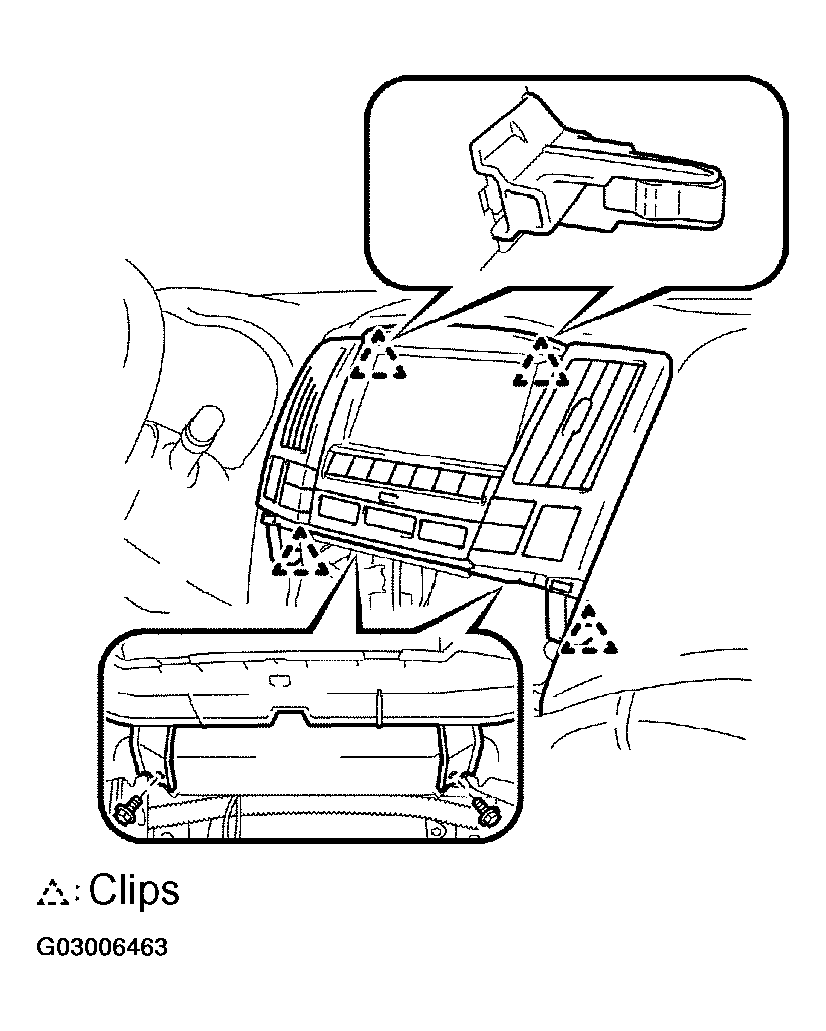

      4. Fig 1: Removing Radio Receiver Assembly W/Bracket
      G03006463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
