Navigation Ecu: Replacement

HINT:

See LOCATION

1. REMOVE DECK BOARD SUB-ASSY (See step 15 in  REPLACEMENT  )
2. REMOVE TONNEAU COVER ASSY
3. REMOVE DECK FLOOR BOX FRONT (See step 19 in  REPLACEMENT  )
4. REMOVE DECK FLOOR BOX REAR (See step 20 in  REPLACEMENT  )
5. REMOVE DECK BOARD SUB-ASSY NO. 2 (See step 21 in  REPLACEMENT  )
6. REMOVE DECK BOARD SUB-ASSY NO. 3
7. REMOVE DECK SIDE TRIM BOX RH (See step 24 in  REPLACEMENT  )
8. REMOVE NAVIGATION ECU W/BRACKET
   1. Disconnect the connector.
   2. Disconnect the wire harness clamp.
   3. Remove the 3 nuts and the navigation ECU w/bracket.

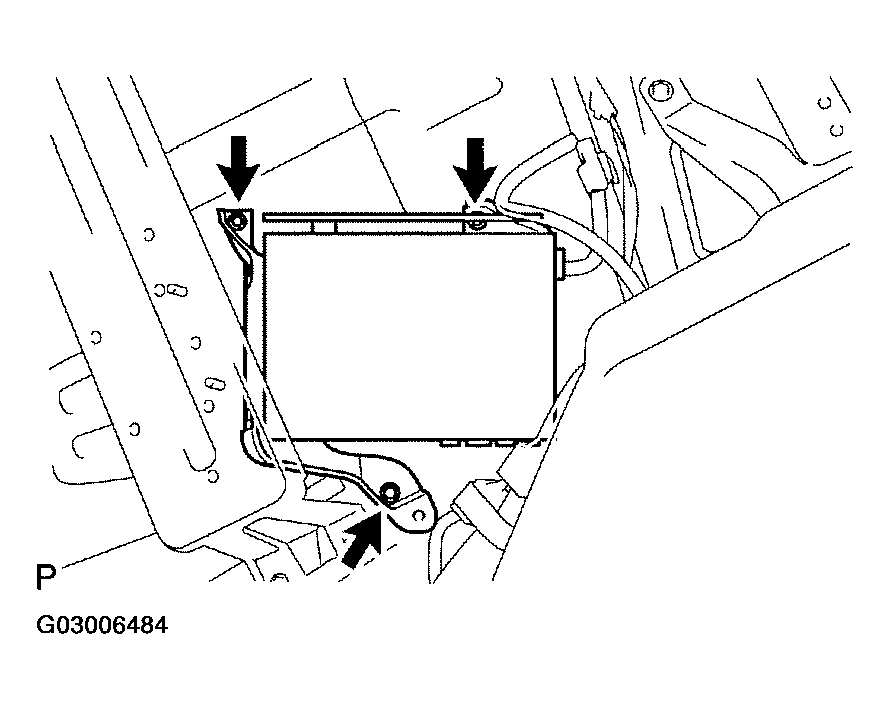

   Fig 1: Removing Navigation ECU W/Bracket
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE DISC PLAYER BRACKET
   1. Remove the screw and the disc player bracket.
      Fig 2: Removing Disc Player Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE DISC PLAYER BRACKET NO. 2
    1. Remove the 2 screws and the disc player bracket No.2.
