Torque Specification

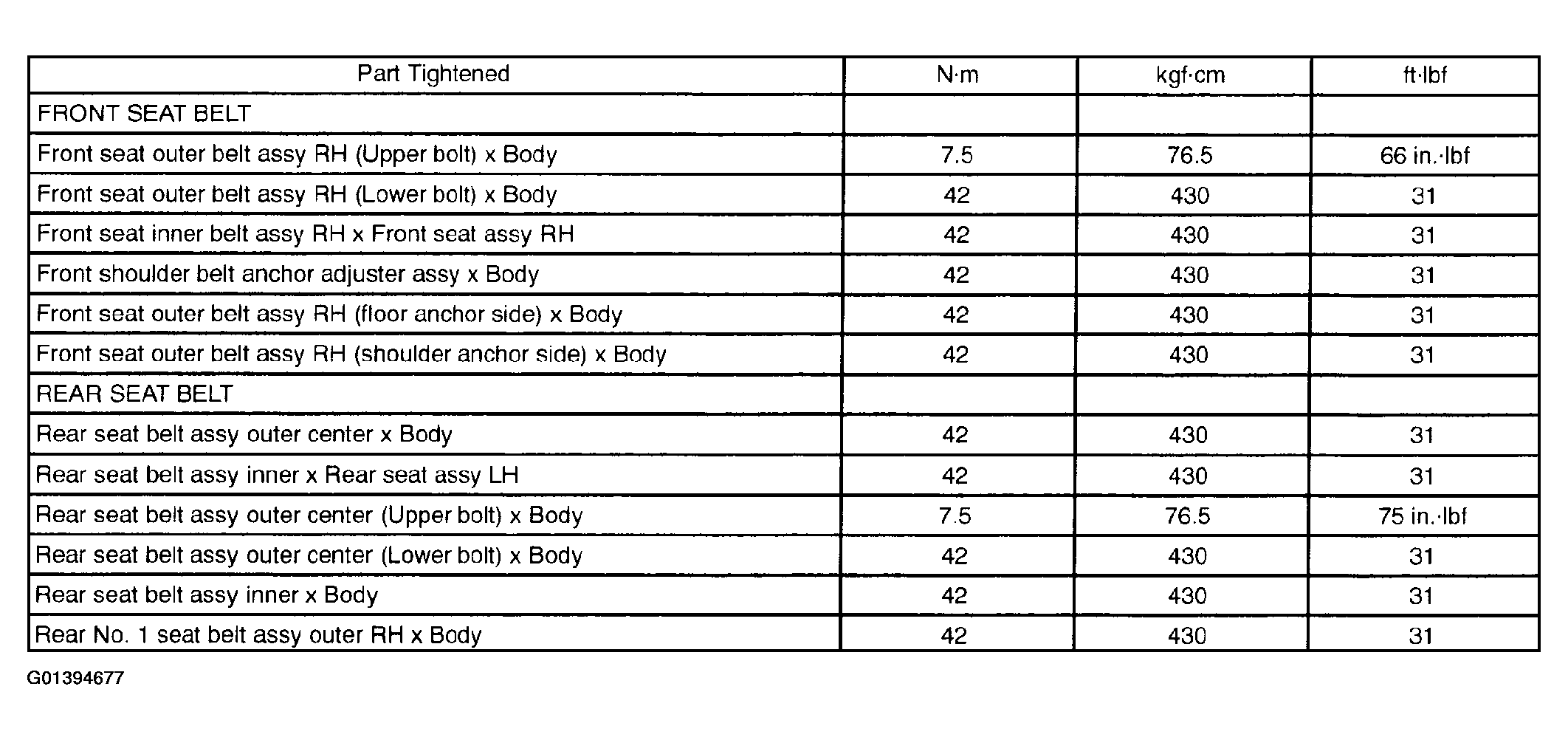

Fig 1: Seat Belt Torque Specification Table

G01394677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
