Shift Lever ASSY (ATM): Components

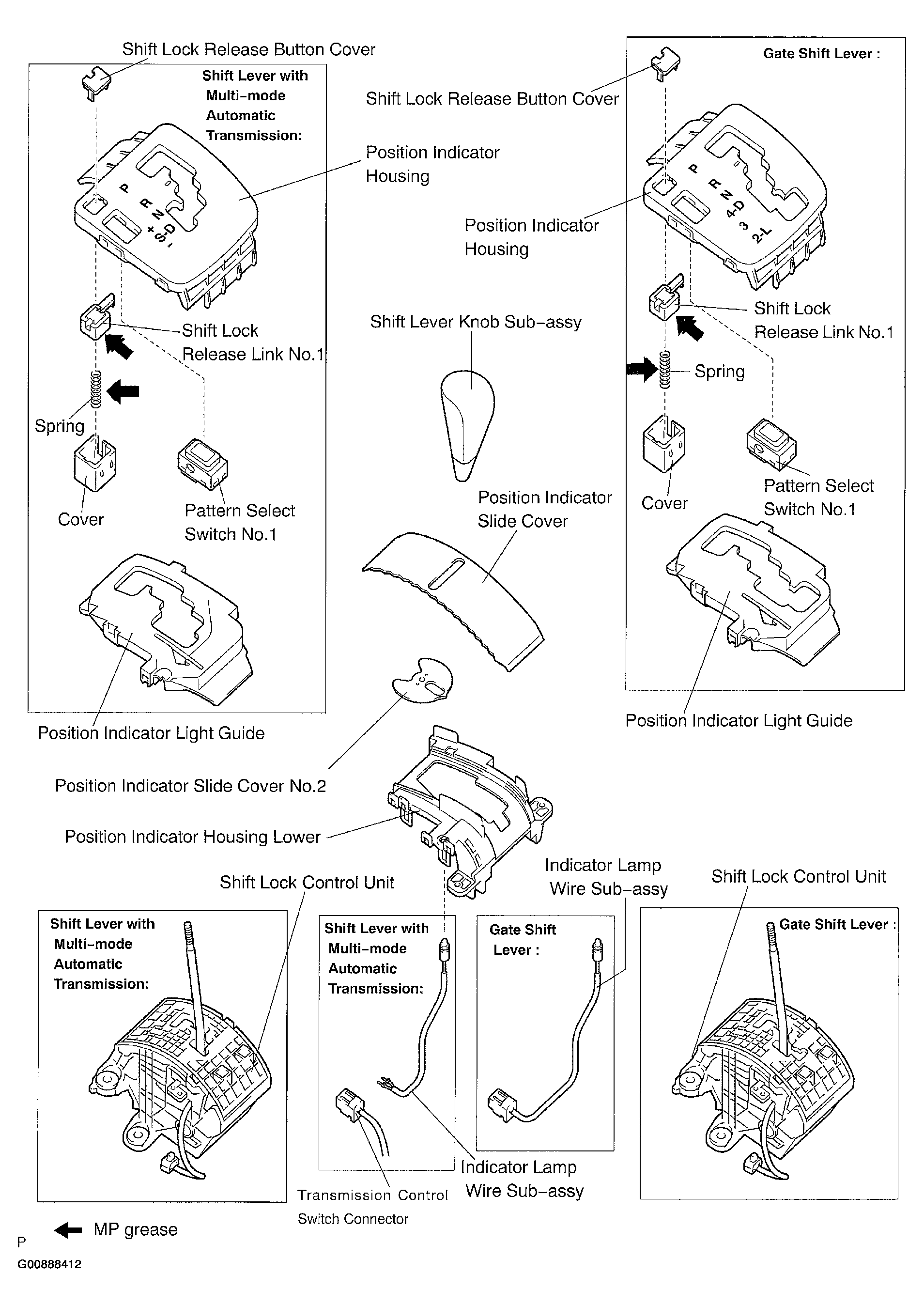

Fig 1: Exploded View Of Shift Lever Assembly (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Shift Lever Assembly (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
