Fuse Block: Locations

Engine Compartment:

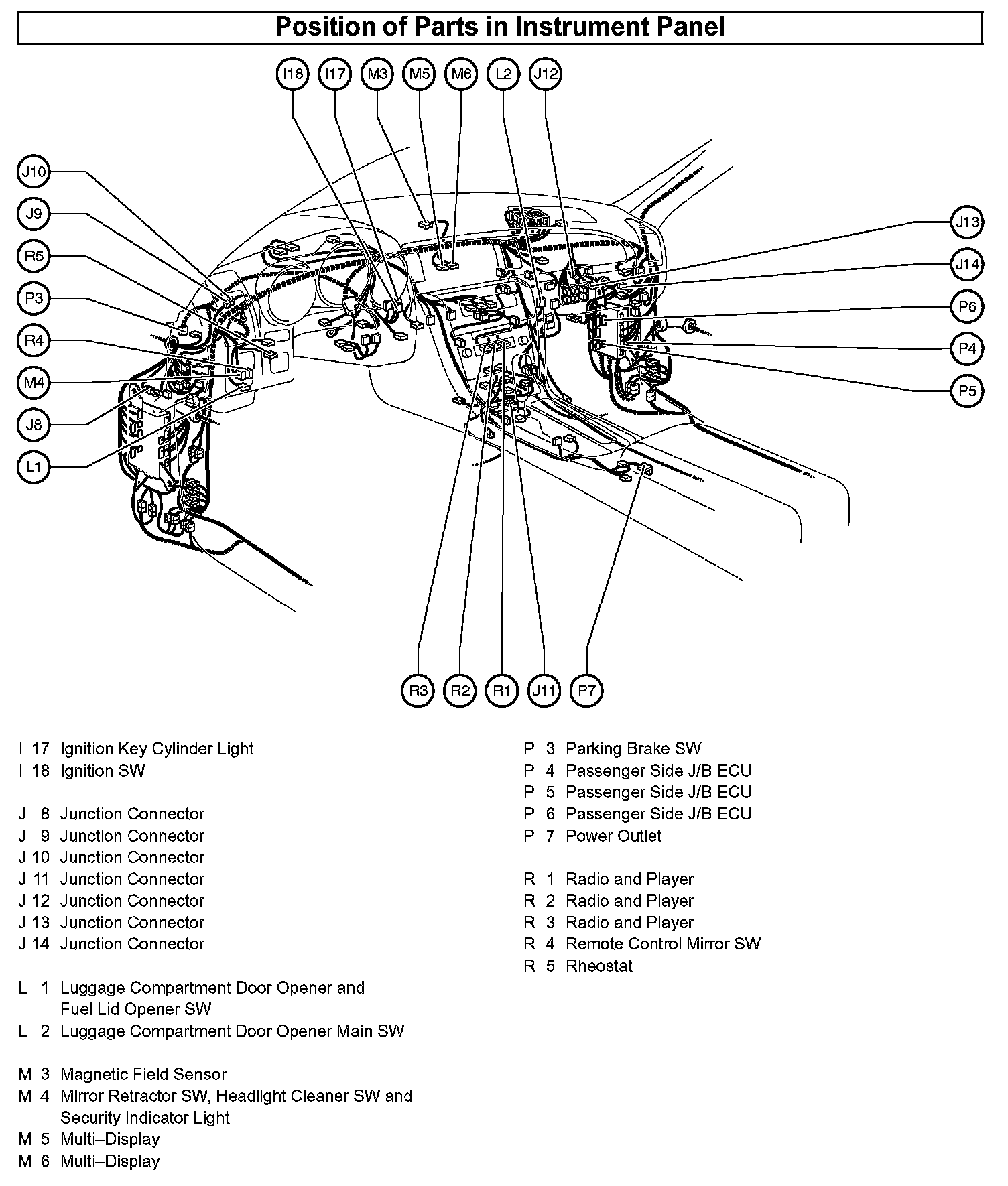

Instrument Panel:

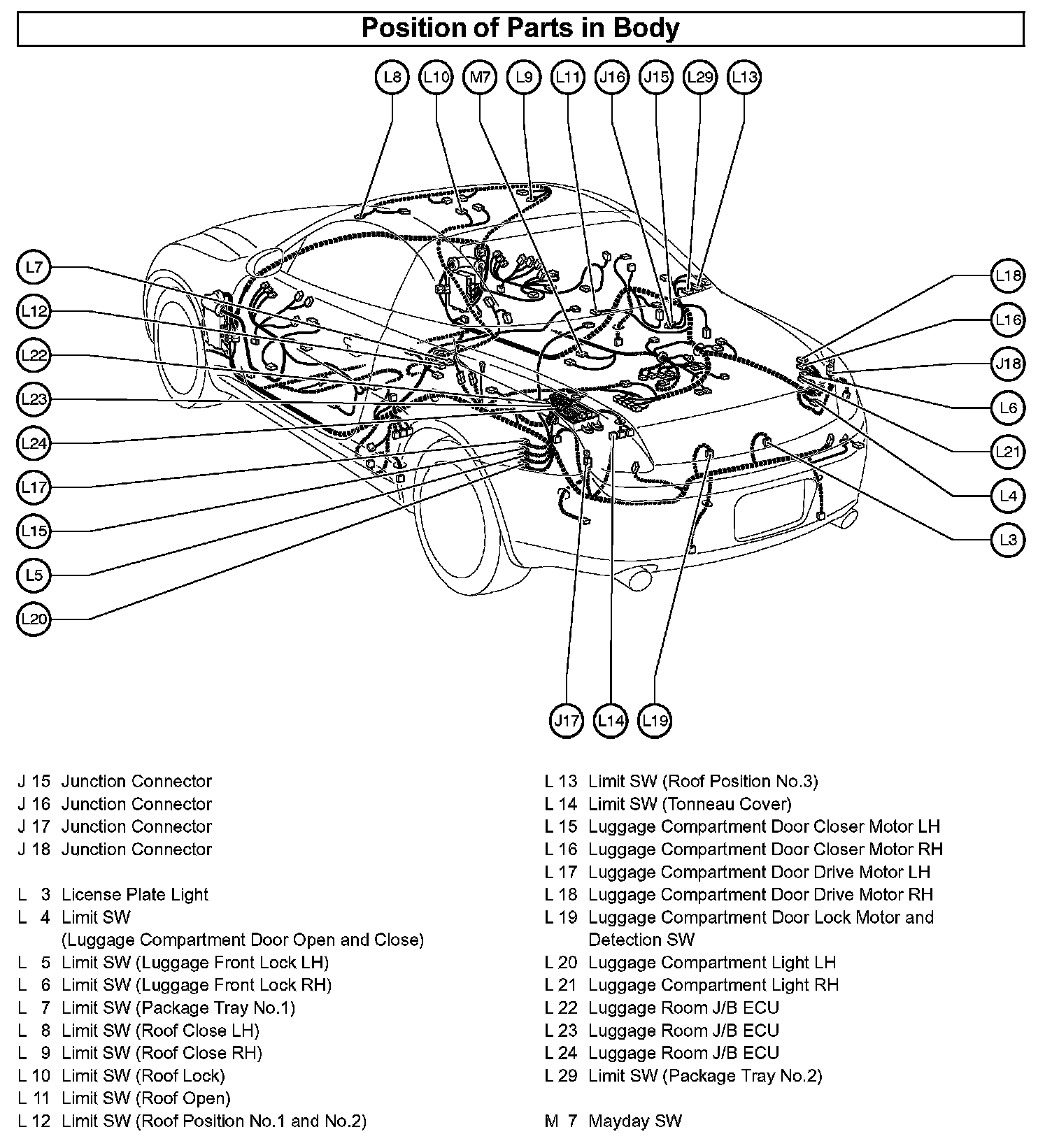

Body:




Ci - He:




Ig - Rh:




Ju - Ma:
