Inspection Procedure

READ VALUE OF HAND-HELD TESTER
1. Connect the hand-held tester to the DLC3.
2. Check the cruise control switch assy using DATA LIST.
CRUISE CONTROL (ECM):

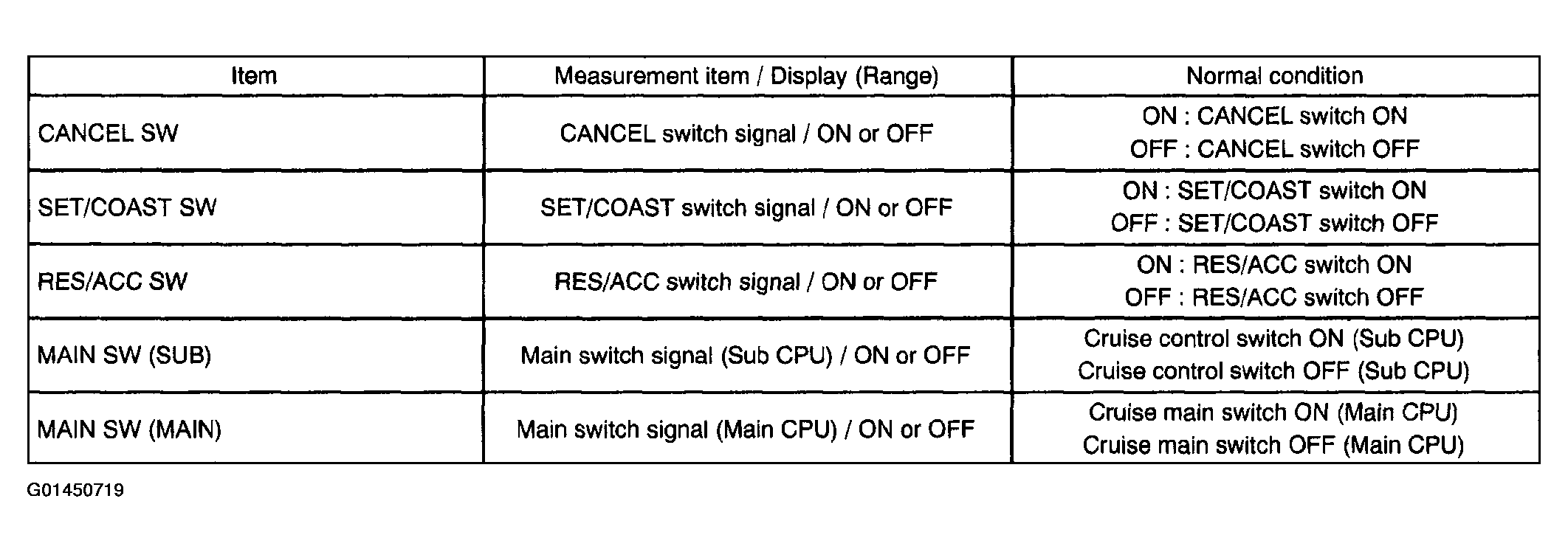

Fig 1: Cruise Control (ECM) - Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: GO TO STEP 2
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
INSPECT CRUISE CONTROL MAIN SWITCH ASSY

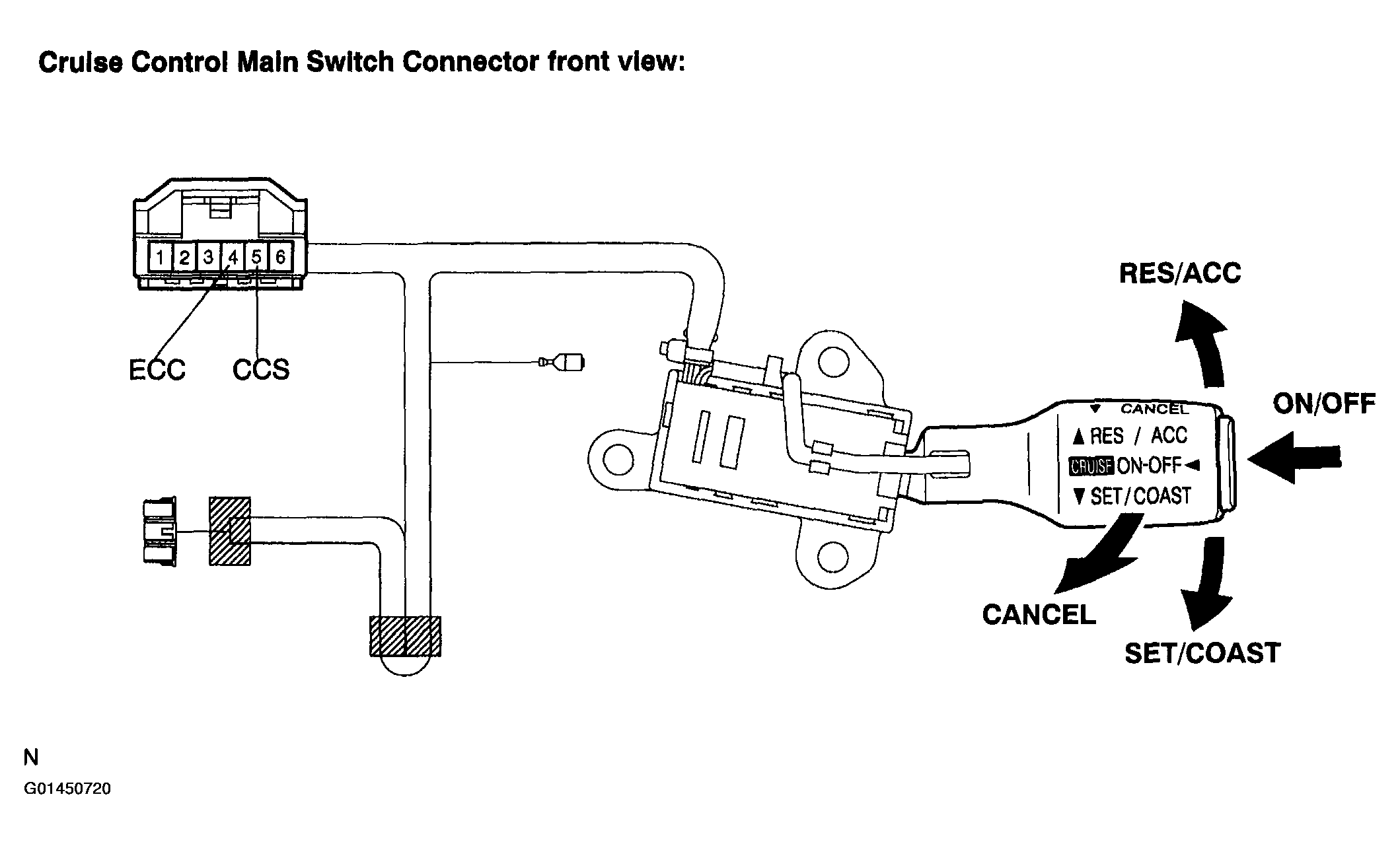

Fig 2: Inspecting Cruise Control Main Switch Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Turn the ignition switch OFF.
2. Disconnect the cruise control main switch connector.
3. Measure the resistance according to the value(s) in the Fig 3 .
Standard:

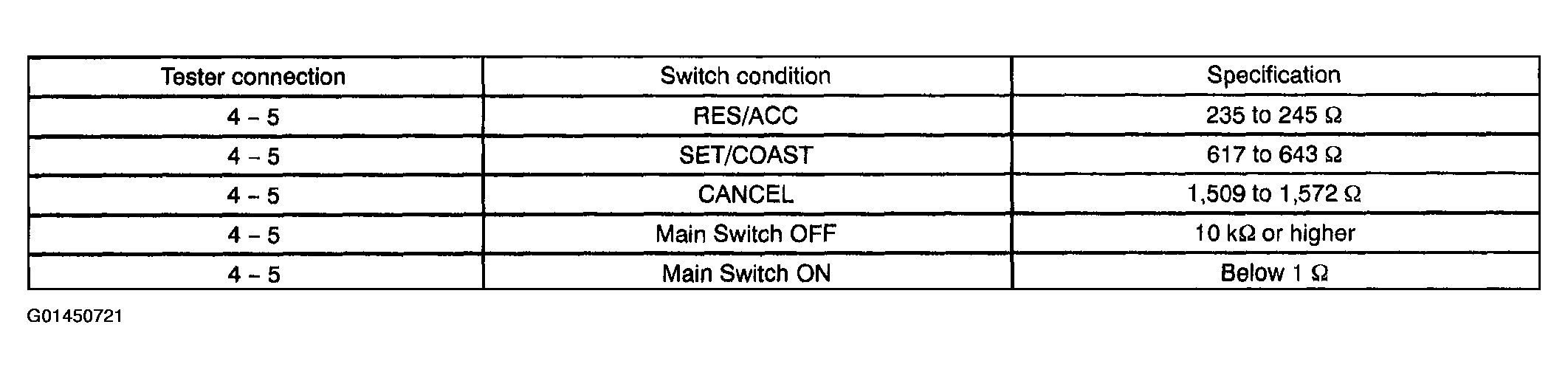

Fig 3: Terminals Resistance Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE CRUISE CONTROL MAIN SWITCH ASSY (SEE REPLACEMENT )
2. OK: GO TO NEXT STEP.
INSPECT SPIRAL CABLE SUB-ASSY
1. Disconnect the spiral cable sub-assy connector ECM side.
2. Measure the resistance according to the value(s) in the Fig 4 .
  Standard:

  Fig 4: Terminals Resistance Reference Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

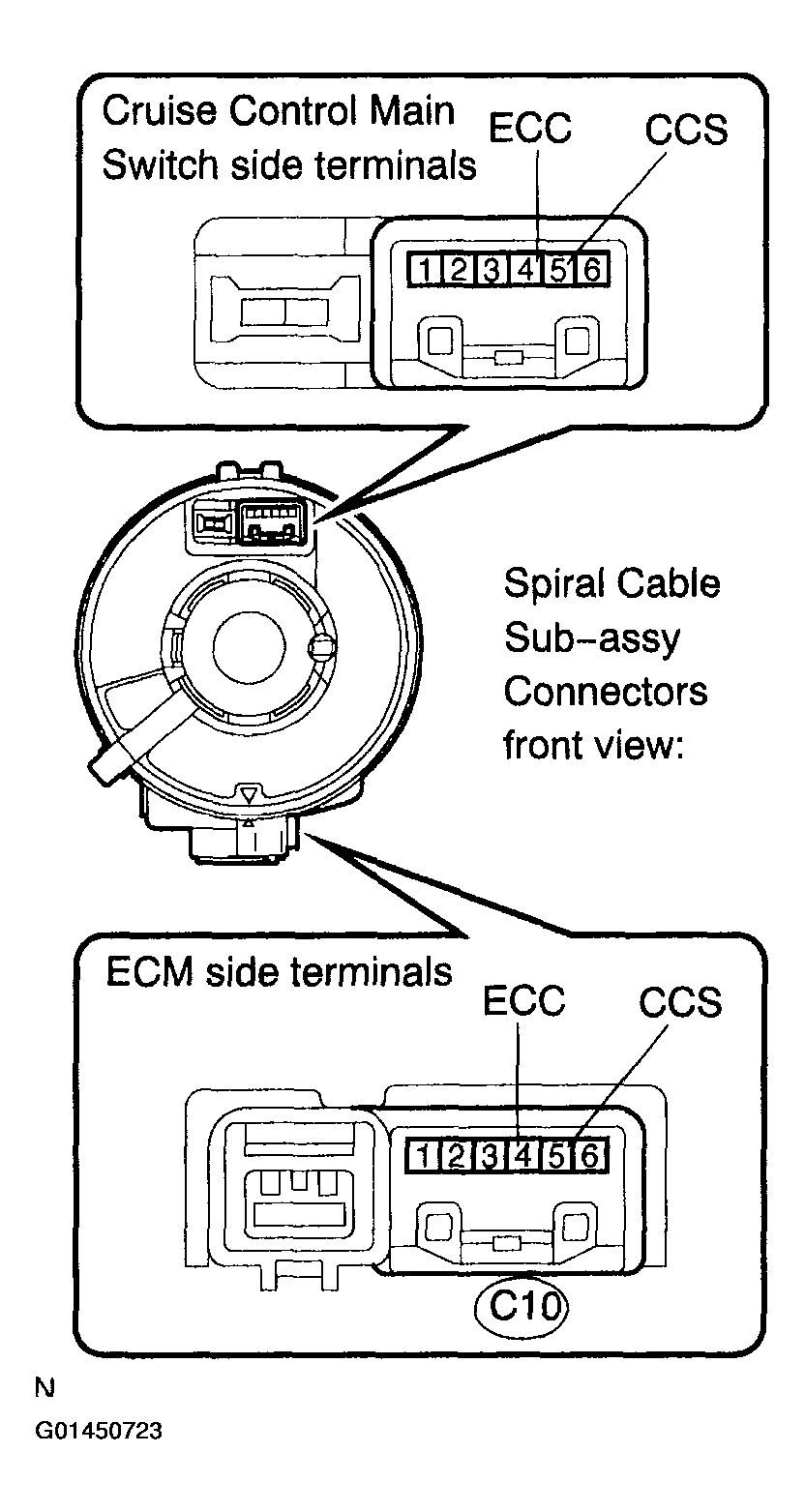

  Fig 5: Inspecting Spiral Cable Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE SPIRAL CABLE SUB-ASSY (SEE SPIRAL CABLE )
2. OK: GO TO NEXT STEP.
CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSY-BODY GROUND)
1. Measure the resistance according to the value(s) in the Fig 6 .
  Standard:

  Fig 6: Terminals Resistance Reference Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 7: Checking Harness & Connector (Spiral Cable Sub-Assy-Body Ground)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE SUB-ASSY-BODY GROUND)
2. OK: GO TO NEXT STEP
CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSY - ECM)
1. Disconnect the E5 connector of ECM.
2. Measure the resistance according to the value(s) in the Fig 8 .
  Standard:

  Fig 8: Terminals Resistance Reference Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 9: Checking Harness & Connector (Spiral Cable Sub-Assy - ECM)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 10: Identifying Wire Harness Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE SUB-ASSY - ECM)
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
