Power Door Lock Control System - Diagnosis: Pre-Check

INSPECT ECU DATA MONITOR WITH HAND-HELD TESTER
1. The ECU data monitor will indicate if the part is normal or malfunctioning.
  Standard:

  Transponder key ECU (switch condition)

  Fig 1: ECU Data Monitor With Hand-Held Tester - Transponder Key ECU Switch Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

  Door ECU (for driver's seat and passenger's seat)

  Fig 2: ECU Data Monitor With Hand-Held Tester - Door ECU (For Driver's Seat & Passenger's Seat) Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT ACTIVE TEST WITH HAND-HELD TESTER
1. The active test will indicate if the part is normal or malfunctioning.
  Standard:

  Door ECU (for driver's seat and passenger's seat)

  Fig 3: Active Test With Hand-Held Tester - Door ECU (For Driver's Seat & Passenger's Seat) Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT CUSTOMIZING FUNCTION WITH HAND-HELD TESTER (REFERENCE)
1. Makes it possible to select the following controls on door lock switch.
  Standard:

  Theft warning ECU

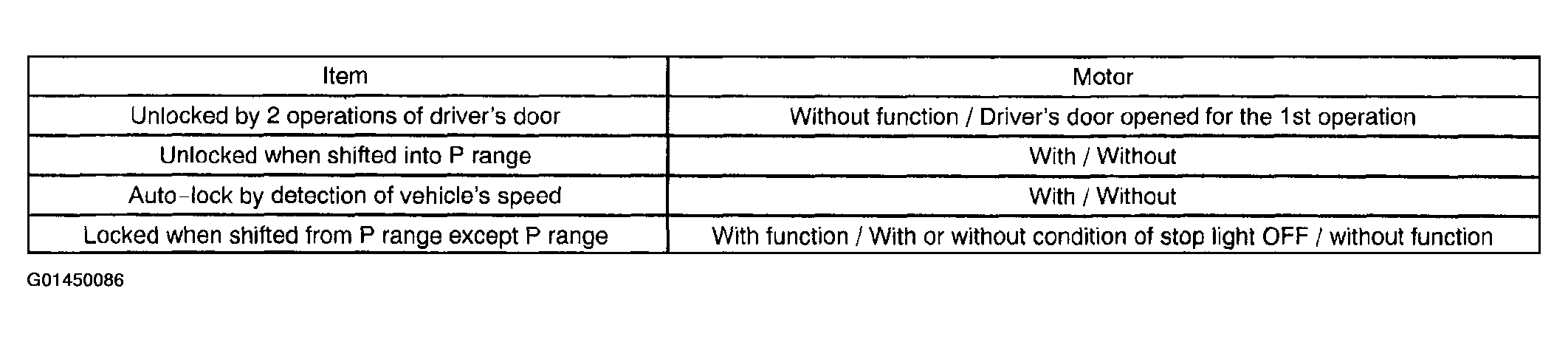

  Fig 4: Inspect Customizing Function With Hand-Held Tester - Door Lock Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
