Engine Compartment Junction & Relay Blocks: Notes

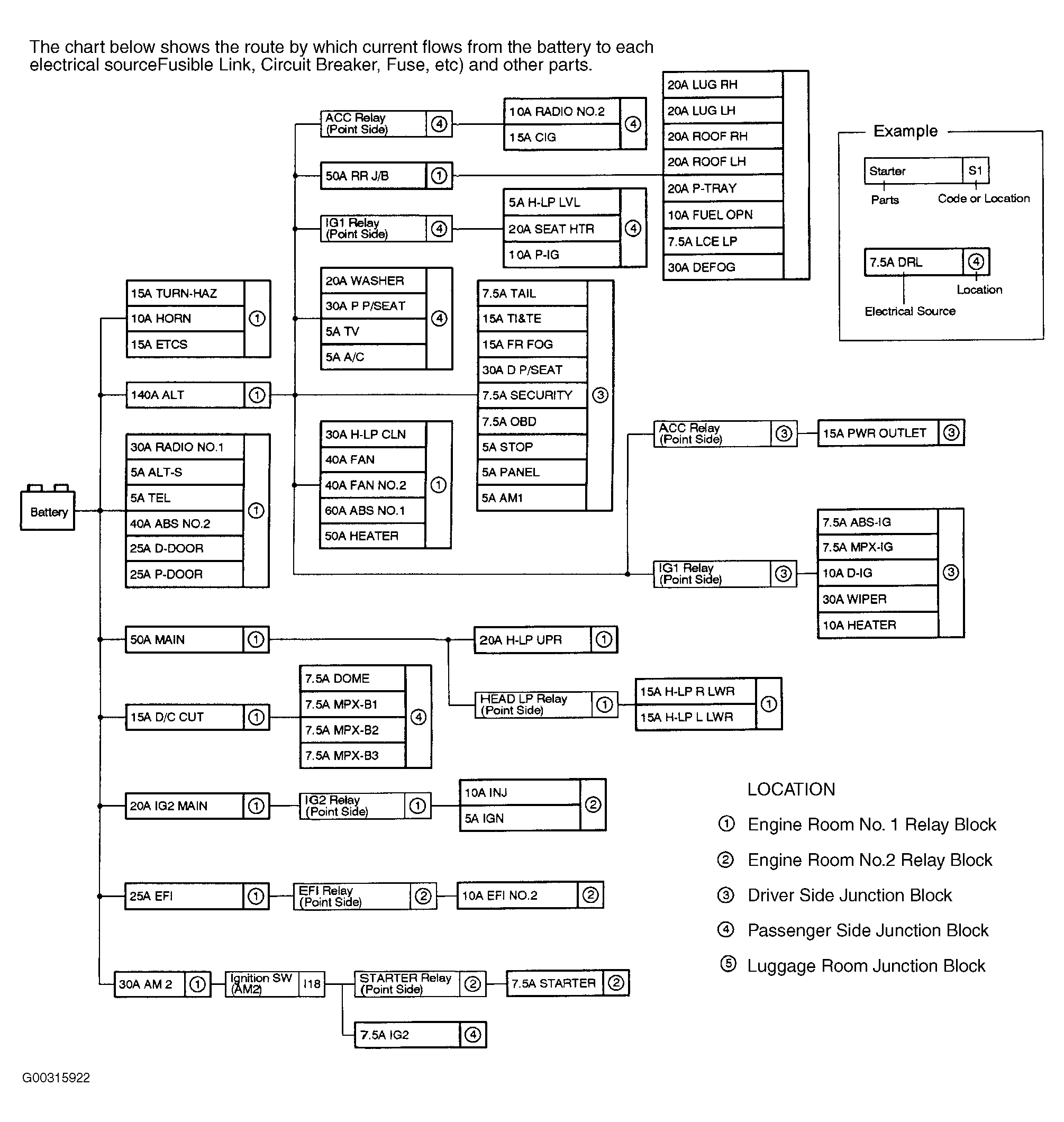

NOTE: For engine compartment junction and relay block locations, see Figure. For electrical power distribution, see Figure.
